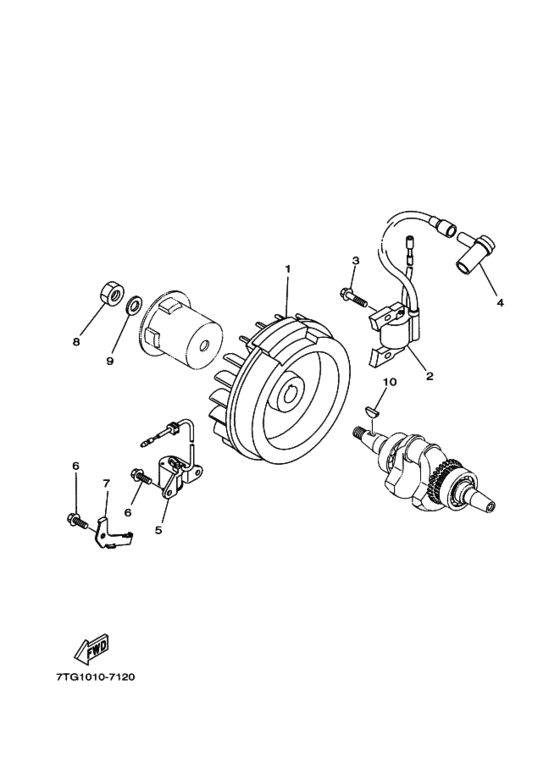

ﾏｸﾞﾈﾄ Diagram Yamaha EF2300A
- Model code
- EF2300A
- Year
- 1997
- Sales region
- Japan (010)
- Colour
- Faraway Blue (FWB; 00NJ)
- Color Variant
- A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7NJ-85650-00-00 Rotor Assemblyローターアセンブリ; |
7NJ-85650-00-00 |
from US $134.39 |
||
|
2
|
2
7NJ-85640-00-00 T.c.i. Unit AssemblyＴ．Ｃ．Ｉ．ユニツトアセンブリ; |
7NJ-85640-00-00 |
from US $89.94 |
||
| replacements | |||||
|
2
|
2
7CN-H5640-01-00 T.c.i. Unit AssyＴ．Ｃ．Ｉ．ユニツトアセンブリ; |
7CN-H5640-01-00 |
from US $89.94 |
||
|
2
|
2
7CN-H5640-02-00 T.c.i. Unit AssyＴ．Ｃ．Ｉ．ユニツトアセンブリ; |
7CN-H5640-02-00 |
from US $89.94 |
||
|
3
|
3
95827-06020-00 Bolt, Flange |
95827-06020-00 |
from US $1.13 |
||
| replacement | |||||
|
3
|
3
95817-06020-00 Bolt, Flange |
95817-06020-00 |
from US $1.13 |
||
|
4
|
4
8K1-82370-20-00 Plug Cap Assembly |
8K1-82370-20-00 |
from US $31.16 |
||
| replacement | |||||
|
4
|
4
85G-82370-20-00 Plug Cap Assembly |
85G-82370-20-00 |
from US $17.20 |
||
|
5
|
5
7NJ-85720-00-00 Oil Level Gauge Assemblyオイルレベルゲージアセンブリ; |
7NJ-85720-00-00 |
from US $64.11 |
||
| replacements | |||||
|
5
|
5
7CN-H5720-00-00 Oil Level Gauge Assyオイルレベルゲージアセンブリ; |
7CN-H5720-00-00 |
from US $45.76 |
||
|
5
|
5
7CN-H5720-10-00 オイルレベルゲージアセンブリ; |
7CN-H5720-10-00 |
US $45.67 |
||
|
5
|
5
7CN-H5720-11-00 Oil Level Gauge Assyオイルレベルゲージアセンブリ; |
7CN-H5720-11-00 |
from US $46.21 |
||
|
5
|
5
7CN-H5720-11-00 Oil Level Gauge Assyオイルレベルゲージアセンブリ; |
7CN-H5720-11-00 |
from US $46.21 |
||
|
6
|
6
958-27060-12-00
Bolt, Flange
ボルト，フランジ; |
958-27060-12-00 |
— | ||
| replacement | |||||
|
6
|
6
958-17060-12-00 Bolt, Flangeボルト，フランジ; |
958-17060-12-00 |
from US $1.07 |
||
|
7
|
7
7NJ-85724-00-00 Clamp |
7NJ-85724-00-00 |
from US $3.54 |
||
| replacement | |||||
|
7
|
7
7CN-H5724-00-00 Clamp |
7CN-H5724-00-00 |
from US $3.54 |
||
|
8
|
8
90170-14403-00 Nut |
90170-14403-00 |
from US $4.30 |
||
| replacement | |||||
|
8
|
8
90170-14800-00 Nut |
90170-14800-00 |
from US $4.53 |
||
|
9
|
9
92907-14200-00 Washer |
92907-14200-00 |
from US $1.56 |
||
|
10
|
10
90280-04052-00 Key, Woodruffキー，ウツドラフ; |
90280-04052-00 |
from US $4.19 |
||
| replacement | |||||
|
10
|
10
90280-04801-00 Key, Woodruffキー，ウツドラフ; |
90280-04801-00 |
from US $4.19 |
||
