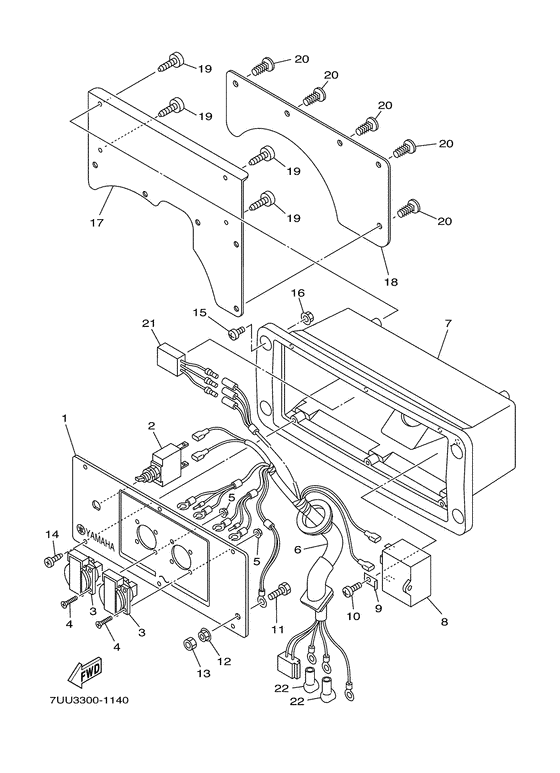

Control box (230V-50/60HZ:FOR) Diagram Yamaha EF2300A
- Year
- 2001
- Sales region
- Greece (010)
- Colour
- Faraway Blue (FWB; 00NJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
7UU-87249-A0-00
Plate
|
7UU-87249-A0-00 |
— | ||
|
02
|
02
7NJ-87204-A0-00 Breaker comp. |
7NJ-87204-A0-00 |
US $105.84 |
||
|
03
|
03
7H7-87221-60-00
Receptacle 1 (abl 6300)
For france |
7H7-87221-60-00 |
— | ||
|
03
|
03
7H7-87221-80-00
Receptacle 1 (Abl 6995)
Except for france |
7H7-87221-80-00 |
— | ||
|
04
|
04
90151-03032-00 Screw, Countersunk |
90151-03032-00 |
US $1.84 |
||
|
05
|
05
90179-03478-00 Nut, Special Shape 0 2 |
90179-03478-00 |
from US $1.70 |
||
|
06
|
06
7UU-87226-A0-00
Wire harness assy
|
7UU-87226-A0-00 |
— | ||
|
07
|
07
7UU-87213-00-00
Cover, Control Box
|
7UU-87213-00-00 |
— | ||
|
08
|
08
7LG-87107-01-00 Condenser Assy |
7LG-87107-01-00 |
from US $45.59 |
||
|
09
|
09
7LG-87248-00-00 Holder, Breaker 2 |
7LG-87248-00-00 |
from US $1.69 |
||
|
10
|
10
977-07405-12-00
Screw, Pan Tap.2
|
977-07405-12-00 |
— | ||
| replacement | |||||
|
10
|
10
97707-40612-00 Screw, Tapping |
97707-40612-00 |
from US $1.56 |
||
|
11
|
11
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
12
|
12
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.05 |
||
|
13
|
13
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
| replacement | |||||
|
13
|
13
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
14
|
14
97707-40516-00 Screw, Tapping |
97707-40516-00 |
from US $1.26 |
||
| replacement | |||||
|
14
|
14
97707-40616-00 Screw, Tapping |
97707-40616-00 |
from US $1.42 |
||
|
15
|
15
98907-06014-00 Screw, Binding |
98907-06014-00 |
from US $1.56 |
||
|
16
|
16
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.05 |
||
|
17
|
17
7UU-15415-00-00
Cover, Generator
|
7UU-15415-00-00 |
— | ||
|
18
|
18
7UU-15416-00-00 Cover, Oil Pump |
7UU-15416-00-00 |
US $15.23 |
||
|
19
|
19
97707-50512-00 Screw, Tapping |
97707-50512-00 |
from US $1.56 |
||
| replacement | |||||
|
19
|
19
97707-50612-00 Screw, Tapping(3Jp) |
97707-50612-00 |
from US $1.56 |
||
|
20
|
20
90338-08220-00 Plug |
90338-08220-00 |
from US $1.42 |
||
|
21
|
21
7NJ-88188-00-00 FILTER,NOISE |
7NJ-88188-00-00 |
from US $27.63 |
||
|
22
|
22
7NJ-81916-00-00
Cover, terminal
|
7NJ-81916-00-00 |
— | ||
