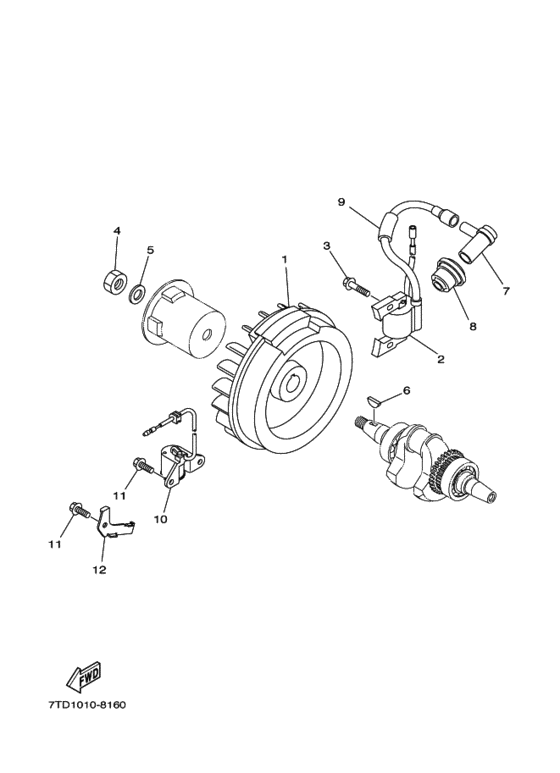

ﾏｸﾞﾈﾄ Diagram Yamaha EF2300S ﾚﾝﾄ
- Model code
- EF2300S
- Year
- 1998
- Sales region
- Japan (999)
- Colour
- Sky Blue (SYB; 00G8)
- Color Variant
- B
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7NJ-85650-00-00 Rotor Assemblyローターアセンブリ; |
7NJ-85650-00-00 |
from US $134.39 |
||
|
2
|
2
7NJ-85640-00-00 T.c.i. Unit Assembly．．．ＴＣＩユニツトアセンブリ; |
7NJ-85640-00-00 |
from US $89.94 |
||
| replacements | |||||
|
2
|
2
7CN-H5640-01-00 T.c.i. Unit Assy．．．ＴＣＩユニツトアセンブリ; |
7CN-H5640-01-00 |
from US $89.94 |
||
|
2
|
2
7CN-H5640-02-00 T.c.i. Unit Assy．．．ＴＣＩユニツトアセンブリ; |
7CN-H5640-02-00 |
from US $89.94 |
||
|
3
|
3
95827-06020-00 Bolt, Flange |
95827-06020-00 |
from US $1.13 |
||
| replacement | |||||
|
3
|
3
95817-06020-00 Bolt, Flange |
95817-06020-00 |
from US $1.13 |
||
|
4
|
4
90170-14403-00 Nut |
90170-14403-00 |
from US $4.30 |
||
| replacement | |||||
|
4
|
4
90170-14800-00 Nut |
90170-14800-00 |
from US $4.53 |
||
|
5
|
5
92907-14200-00 Washer |
92907-14200-00 |
from US $1.56 |
||
|
6
|
6
90280-04052-00 Key, Woodruffキー，ウツドラフ; |
90280-04052-00 |
from US $4.19 |
||
| replacement | |||||
|
6
|
6
90280-04801-00 Key, Woodruffキー，ウツドラフ; |
90280-04801-00 |
from US $4.19 |
||
|
7
|
7
8K1-82370-20-00 Plug Cap Assembly |
8K1-82370-20-00 |
from US $31.16 |
||
| replacement | |||||
|
7
|
7
85G-82370-20-00 Plug Cap Assembly |
85G-82370-20-00 |
from US $17.20 |
||
|
8
|
8
JE8-82372-00-00 Seal, Plug Capシール，プラグキヤツプ; |
JE8-82372-00-00 |
from US $3.26 |
||
| replacement | |||||
|
8
|
8
7CP-H2372-00-00 Seal, Plug Capシール，プラグキヤツプ; |
7CP-H2372-00-00 |
from US $3.26 |
||
|
9
|
9
7TD-82373-00-00 Seal, High Tension Cordシール，ハイテンシヨンコード; |
7TD-82373-00-00 |
from US $1.28 |
||
| replacement | |||||
|
9
|
9
7CP-H2373-00-00 Seal, High Tension Cordシール，ハイテンシヨンコード; |
7CP-H2373-00-00 |
from US $1.28 |
||
|
10
|
10
7NJ-85720-00-00 Oil Level Gauge Assemblyオイルレベルゲージアセンブリ; |
7NJ-85720-00-00 |
from US $64.11 |
||
| replacements | |||||
|
10
|
10
7CN-H5720-00-00 Oil Level Gauge Assyオイルレベルゲージアセンブリ; |
7CN-H5720-00-00 |
from US $45.76 |
||
|
10
|
10
7CN-H5720-10-00 オイルレベルゲージアセンブリ; |
7CN-H5720-10-00 |
US $45.67 |
||
|
10
|
10
7CN-H5720-11-00 Oil Level Gauge Assyオイルレベルゲージアセンブリ; |
7CN-H5720-11-00 |
from US $46.21 |
||
|
10
|
10
7CN-H5720-11-00 Oil Level Gauge Assyオイルレベルゲージアセンブリ; |
7CN-H5720-11-00 |
from US $46.21 |
||
|
11
|
11
958-27060-12-00
Bolt, Flange
ボルト，フランジ; |
958-27060-12-00 |
— | ||
| replacement | |||||
|
11
|
11
958-17060-12-00 Bolt, Flangeボルト，フランジ; |
958-17060-12-00 |
from US $1.07 |
||
|
12
|
12
7NJ-85724-00-00 Clamp |
7NJ-85724-00-00 |
from US $3.54 |
||
| replacement | |||||
|
12
|
12
7CN-H5724-00-00 Clamp |
7CN-H5724-00-00 |
from US $3.54 |
||
