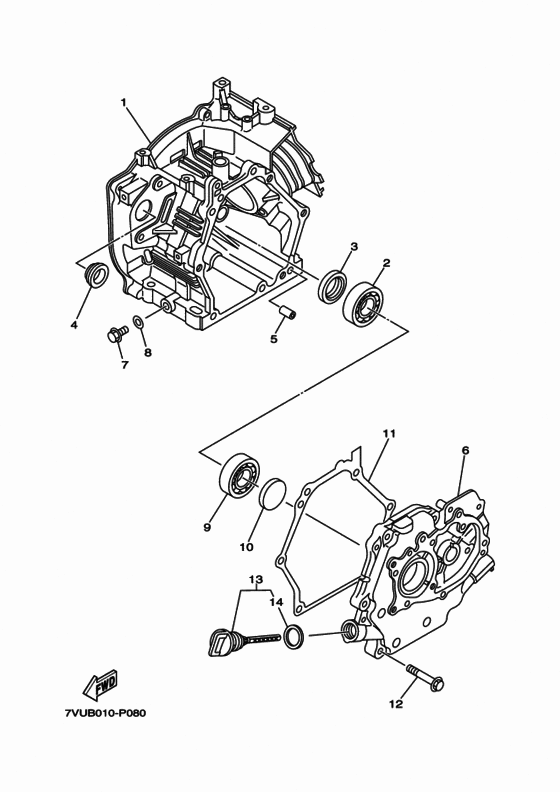

Crankcase Diagram Yamaha EF2500I
- Model code
- 7VUB
- Year
- 2015
- Sales region
- Japan (030)
- Colour
- ﾊﾟ-ﾌﾟﾘﾂｼﾕ ﾌﾞﾙ- ｿﾘﾂﾄﾞ 3
- Color Variant
- A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7CN-E5121-40-00 Crankcase 2 |
7CN-E5121-40-00 |
US $338.49 |
||
|
2
|
2
93306-205XE-00 Bearing |
93306-205XE-00 |
from US $25.22 |
||
|
3
|
3
931-02258-06-00 Oil Seal |
931-02258-06-00 |
from US $9.63 |
||
| replacement | |||||
|
3
|
3
93102-25090-00 Oil Seal |
93102-25090-00 |
from US $12.75 |
||
|
4
|
4
90480-26602-00 Grommet |
90480-26602-00 |
from US $2.59 |
||
|
5
|
5
995-30080-16-00
Pin, Dowel
|
995-30080-16-00 |
— | ||
| replacement | |||||
|
5
|
5
918-08160-23-00 Pin, Dowel(3Xw) |
918-08160-23-00 |
from US $1.34 |
||
|
6
|
6
7CN-E5411-60-00 Cover, Crankcase 1 |
7CN-E5411-60-00 |
from US $82.21 |
||
|
7
|
7
95022-10016-00 Bolt, Flange |
95022-10016-00 |
from US $1.56 |
||
|
8
|
8
90430-10801-00 Gasket |
90430-10801-00 |
from US $1.70 |
||
|
9
|
9
93306-205XE-00 Bearing |
93306-205XE-00 |
from US $25.22 |
||
|
10
|
10
7CN-E5189-00-00 Plug |
7CN-E5189-00-00 |
from US $4.25 |
||
|
11
|
11
7CN-E5451-01-00 Gasket, Crankcase Cover 1 |
7CN-E5451-01-00 |
from US $5.10 |
||
| replacement | |||||
|
11
|
11
7CN-E5451-10-00 GASKET, CRANKCASE CO |
7CN-E5451-10-00 |
from US $5.10 |
||
|
12
|
12
95822-08035-00 Bolt, Flange |
95822-08035-00 |
from US $1.07 |
||
| replacement | |||||
|
12
|
12
95817-08035-00 Bolt, Flange |
95817-08035-00 |
from US $1.07 |
||
|
13
|
13
7BX-E536A-00-00 Plug, Oil Level |
7BX-E536A-00-00 |
from US $7.23 |
||
|
14
|
14
90430-17801-00 Gasket |
90430-17801-00 |
from US $1.70 |
||
