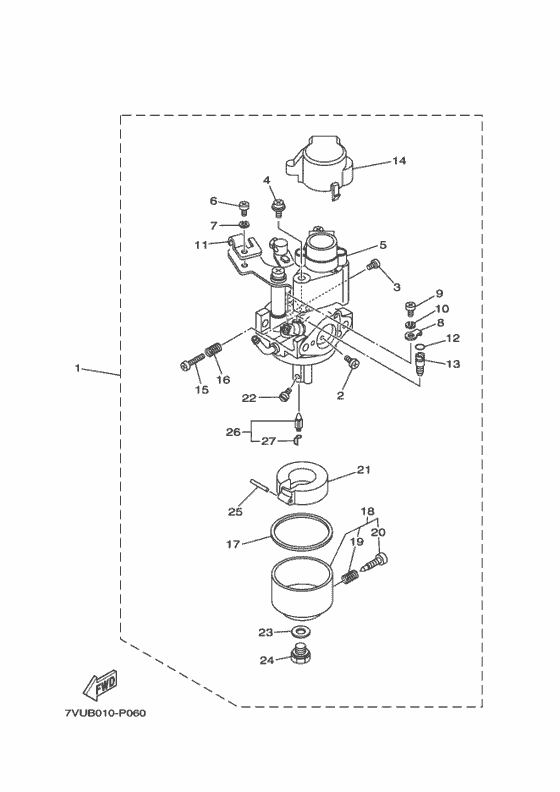

キヤブレタ Diagram Yamaha EF2500I
- Model code
- 7VUB
- Year
- 2015
- Sales region
- Japan (030)
- Colour
- ﾊﾟ-ﾌﾟﾘﾂｼﾕ ﾌﾞﾙ- ｿﾘﾂﾄﾞ 3
- Color Variant
- A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7VU-14101-22-00 Carburetor Assy 1 |
7VU-14101-22-00 |
US $193.42 |
||
|
2
|
2
7RH-14216-00-00 Screw |
7RH-14216-00-00 |
from US $2.41 |
||
|
3
|
3
7RH-14486-00-00 Screw, Rod |
7RH-14486-00-00 |
from US $2.41 |
||
|
4
|
4
4SV-24453-00-00 Screw |
4SV-24453-00-00 |
from US $1.56 |
||
|
5
|
5
7VU-81802-19-00 Motor Unit Assy |
7VU-81802-19-00 |
from US $77.78 |
||
|
6
|
6
98502-05008-00 Screw, Pan Head |
98502-05008-00 |
US $1.07 |
||
| replacements | |||||
|
6
|
6
985-07050-08-00 Screw, Pan Head |
985-07050-08-00 |
from US $1.07 |
||
|
6
|
6
985-80050-08-00 Screw, Pan Head |
985-80050-08-00 |
from US $1.50 |
||
|
7
|
7
92902-05100-00 Washer, Spring |
92902-05100-00 |
US $1.21 |
||
| replacement | |||||
|
7
|
7
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
8
|
8
7CU-E4527-00-00 Plate |
7CU-E4527-00-00 |
from US $4.68 |
||
|
9
|
9
985-07050-08-00 Screw, Pan Head |
985-07050-08-00 |
from US $1.07 |
||
|
10
|
10
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
11
|
11
J45-14243-00-00 Plate |
J45-14243-00-00 |
from US $7.79 |
||
|
12
|
12
2H0-14147-00-00 O-Ring |
2H0-14147-00-00 |
from US $5.87 |
||
|
13
|
13
7CU-E414J-16-A0 Jet, Pilot (#41.3) |
7CU-E414J-16-A0 |
from US $9.35 |
||
| replacement | |||||
|
13
|
13
7CU-1414J-16-A0 Jet, Pilot (#41.3) |
7CU-1414J-16-A0 |
from US $9.35 |
||
|
14
|
14
7VU-14293-00-00 Cover 1 |
7VU-14293-00-00 |
from US $4.39 |
||
|
15
|
15
1WG-14922-00-00 Screw, Throttle |
1WG-14922-00-00 |
from US $4.96 |
||
|
16
|
16
73A-14212-00-00 Spring |
73A-14212-00-00 |
from US $1.70 |
||
|
17
|
17
7CN-E4997-00-00 Seal |
7CN-E4997-00-00 |
from US $12.04 |
||
|
18
|
18
7EG-14181-00-00 Body, Float Chamber 1 |
7EG-14181-00-00 |
from US $52.64 |
||
|
19
|
19
73A-14212-00-00 Spring |
73A-14212-00-00 |
from US $1.70 |
||
|
20
|
20
7E1-14191-00-00 Plug, Drain |
7E1-14191-00-00 |
from US $4.39 |
||
|
21
|
21
7EG-14185-00-00 Float |
7EG-14185-00-00 |
from US $28.62 |
||
|
22
|
22
1HX-1423E-36-A0 Jet, Main (#91.3) |
1HX-1423E-36-A0 |
from US $9.58 |
||
|
23
|
23
7G0-14227-00-00 Washer |
7G0-14227-00-00 |
from US $2.55 |
||
|
24
|
24
7CN-E4162-00-00 Bolt, Holding |
7CN-E4162-00-00 |
from US $9.63 |
||
|
25
|
25
7CN-E4186-00-00 Pin, Float |
7CN-E4186-00-00 |
from US $2.13 |
||
|
26
|
26
7LG-14150-11-00 Needle Assy |
7LG-14150-11-00 |
from US $26.33 |
||
|
27
|
27
7EG-14159-00-00 Clip |
7EG-14159-00-00 |
from US $2.55 |
||
