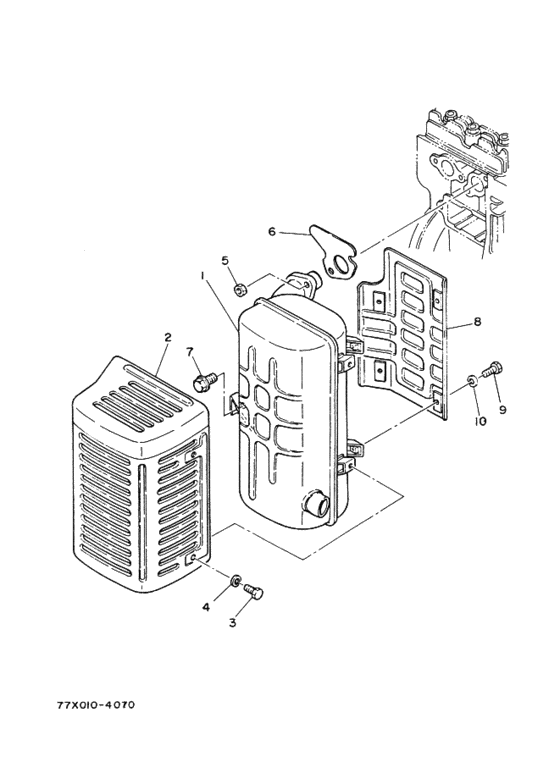

Exhaust (EF2600A) Diagram Yamaha EF2600A
- Model code
- EF2600A
- Year
- 1984
- Sales region
- Japan (010)
- Colour
- Naiad Blue (NAB; 0086)
- Color Variant
- A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
76K-14711-10-98 Muffler Lマフラ １; ツヤケシブラツク |
76K-14711-10-98 |
US $294.61 |
||
|
2
|
2
7R1-14718-00-98 Protector, Muff 1プロテクタ，マフラー １; ツヤケシブラツク |
7R1-14718-00-98 |
from US $53.46 |
||
|
3
|
3
97301-06010-00 Bolt |
97301-06010-00 |
from US $1.56 |
||
| replacement | |||||
|
3
|
3
97017-06010-00 Bolt |
97017-06010-00 |
from US $1.34 |
||
|
4
|
4
90201-061A5-00 Washer, Plate (4H7)ワツシヤ，プレート; |
90201-061A5-00 |
from US $1.84 |
||
|
5
|
5
953-80086-00-00
Nut, Hex
|
953-80086-00-00 |
— | ||
| replacements | |||||
|
5
|
5
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
5
|
5
988-80081-00-00 Ybs55-8 Nut (644) |
988-80081-00-00 |
from US $1.57 |
||
|
6
|
6
77X-14613-00-00 Gasket, Exhaustガスケツト，エキゾーストパイプ; |
77X-14613-00-00 |
from US $4.04 |
||
| replacement | |||||
|
6
|
6
77X-14613-01-00 ROTOR ASSYガスケツト，エキゾーストパイプ; |
77X-14613-01-00 |
from US $3.67 |
||
|
7
|
7
90109-08519-00 Bolt |
90109-08519-00 |
US $4.88 |
||
|
8
|
8
77X-14728-00-00 Protecter, Muff 2プロテクタ，マフラー ２; |
77X-14728-00-00 |
US $10.35 |
||
|
9
|
9
97301-06010-00 Bolt |
97301-06010-00 |
from US $1.56 |
||
| replacement | |||||
|
9
|
9
97017-06010-00 Bolt |
97017-06010-00 |
from US $1.34 |
||
|
10
|
10
90201-061A5-00 Washer, Plate (4H7)ワツシヤ，プレート; |
90201-061A5-00 |
from US $1.84 |
||
