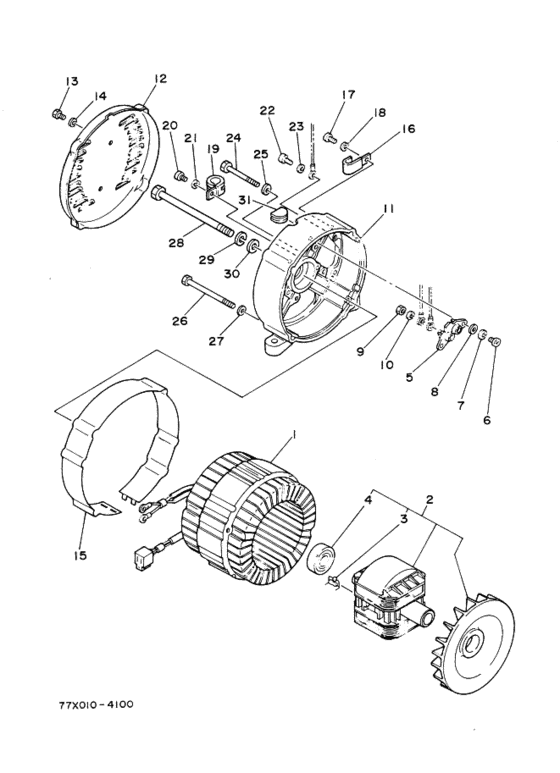

Generator (EF2600A) Diagram Yamaha EF2600A
- Model code
- EF2600A
- Year
- 1984
- Sales region
- Japan (010)
- Colour
- Naiad Blue (NAB; 0086)
- Color Variant
- A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77X-87150-00-00
Stator Assy
ステータアセンブリ ; ６０ＨＺ; ＵＲ |
77X-87150-00-00 |
— | ||
|
1
|
1
77X-87150-10-00
Stator Assy
ステータアセンブリ ; ５０ＨＺ; ＵＲ |
77X-87150-10-00 |
— | ||
|
2
|
2
77X-87160-00-00 Rotor Assyロータアセンブリ; |
77X-87160-00-00 |
US $702.81 |
||
| replacement | |||||
|
2
|
2
7HF-87160-00-00 Rotor Assemblyロータアセンブリ; |
7HF-87160-00-00 |
US $695.65 |
||
|
3
|
3
75J-87115-00-00 Rectifier Assembly 2．レクチフアイヤアセンブリ ２; |
75J-87115-00-00 |
US $16.78 |
||
| replacement | |||||
|
3
|
3
75J-87115-01-00 Rectifier Assembly 2．レクチフアイヤアセンブリ ２; |
75J-87115-01-00 |
US $16.78 |
||
|
4
|
4
93306-20435-00 Bearing．ベアリング; |
93306-20435-00 |
US $24.07 |
||
|
5
|
5
7H9-87220-00-00 Terminal Sub Assembly 1ターミナルサブアセンブリ １; |
7H9-87220-00-00 |
from US $15.58 |
||
| replacement | |||||
|
5
|
5
7NJ-87220-00-00 Terminal Sub Assembly 1ターミナルサブアセンブリ １; |
7NJ-87220-00-00 |
from US $15.58 |
||
|
6
|
6
98502-05014-00 Screw, Pan Head |
98502-05014-00 |
from US $1.28 |
||
| replacements | |||||
|
6
|
6
985-80050-14-00
Screw, Pan Head
|
985-80050-14-00 |
— | ||
|
6
|
6
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
7
|
7
92902-05100-00 Washer, Springワツシヤ，スプリング; |
92902-05100-00 |
US $1.21 |
||
| replacement | |||||
|
7
|
7
92990-05100-00 Washer, Springワツシヤ，スプリング; |
92990-05100-00 |
from US $1.21 |
||
|
8
|
8
929-01056-00-00
Washer
ワツシヤ，プレート; |
929-01056-00-00 |
— | ||
| replacements | |||||
|
8
|
8
92990-05600-00 Washer, Plateワツシヤ，プレート; |
92990-05600-00 |
from US $1.07 |
||
|
8
|
8
92907-05600-00 Washer, Plateワツシヤ，プレート; |
92907-05600-00 |
from US $1.07 |
||
|
9
|
9
95302-05700-00 Nut, Hexagon |
95302-05700-00 |
from US $2.83 |
||
| replacement | |||||
|
9
|
9
953-17057-00-00 Nut |
953-17057-00-00 |
from US $2.42 |
||
|
10
|
10
92902-05100-00 Washer, Springワツシヤ，スプリング; |
92902-05100-00 |
US $1.21 |
||
| replacement | |||||
|
10
|
10
92990-05100-00 Washer, Springワツシヤ，スプリング; |
92990-05100-00 |
from US $1.21 |
||
|
11
|
11
7J3-87131-00-00 Frame, Rearフレーム，リヤ; |
7J3-87131-00-00 |
from US $123.77 |
||
|
12
|
12
7J3-87174-00-86
Cover, Rear End
カバー，リヤエンド; ナイアドブルー |
7J3-87174-00-86 |
— | ||
|
13
|
13
97301-06010-00 Bolt |
97301-06010-00 |
from US $1.56 |
||
| replacement | |||||
|
13
|
13
97017-06010-00 Bolt |
97017-06010-00 |
from US $1.34 |
||
|
14
|
14
90201-061A5-00 Washer, Plate (4H7)ワツシヤ，プレート; |
90201-061A5-00 |
from US $1.84 |
||
|
15
|
15
77X-87153-00-00
Cover, Stator
カバー，ステータ; |
77X-87153-00-00 |
— | ||
|
16
|
16
90465-08146-00 Clamp |
90465-08146-00 |
from US $2.41 |
||
| replacement | |||||
|
16
|
16
90465-06376-00 Clamp |
90465-06376-00 |
from US $2.41 |
||
|
17
|
17
98501-05010-00 Screw, Pan Head |
98501-05010-00 |
US $1.21 |
||
| replacement | |||||
|
17
|
17
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
18
|
18
929-01056-00-00
Washer
ワツシヤ，プレート; |
929-01056-00-00 |
— | ||
| replacements | |||||
|
18
|
18
92990-05600-00 Washer, Plateワツシヤ，プレート; |
92990-05600-00 |
from US $1.07 |
||
|
18
|
18
92907-05600-00 Washer, Plateワツシヤ，プレート; |
92907-05600-00 |
from US $1.07 |
||
|
19
|
19
90462-05061-00 Clamp (7J0) |
90462-05061-00 |
from US $3.54 |
||
| replacement | |||||
|
19
|
19
904-62102-36-00 Clamp |
904-62102-36-00 |
from US $3.54 |
||
|
20
|
20
98501-05010-00 Screw, Pan Head |
98501-05010-00 |
US $1.21 |
||
| replacement | |||||
|
20
|
20
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
21
|
21
929-01056-00-00
Washer
ワツシヤ，プレート; |
929-01056-00-00 |
— | ||
| replacements | |||||
|
21
|
21
92990-05600-00 Washer, Plateワツシヤ，プレート; |
92990-05600-00 |
from US $1.07 |
||
|
21
|
21
92907-05600-00 Washer, Plateワツシヤ，プレート; |
92907-05600-00 |
from US $1.07 |
||
|
22
|
22
98501-05010-00 Screw, Pan Head |
98501-05010-00 |
US $1.21 |
||
| replacement | |||||
|
22
|
22
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
23
|
23
929-01056-00-00
Washer
ワツシヤ，プレート; |
929-01056-00-00 |
— | ||
| replacements | |||||
|
23
|
23
92990-05600-00 Washer, Plateワツシヤ，プレート; |
92990-05600-00 |
from US $1.07 |
||
|
23
|
23
92907-05600-00 Washer, Plateワツシヤ，プレート; |
92907-05600-00 |
from US $1.07 |
||
|
24
|
24
97301-06075-00
Bolt
|
97301-06075-00 |
— | ||
| replacements | |||||
|
24
|
24
970-27060-75-00
BOLT
|
970-27060-75-00 |
— | ||
|
24
|
24
973-21060-75-00
New Genuine Part
|
973-21060-75-00 |
— | ||
|
24
|
24
970-21060-75-00
Bolt,hexagon
|
970-21060-75-00 |
— | ||
|
25
|
25
90201-061A5-00 Washer, Plate (4H7)ワツシヤ，プレート; |
90201-061A5-00 |
from US $1.84 |
||
|
26
|
26
97322-06140-00
Bolt, Hexagon
|
97322-06140-00 |
— | ||
|
27
|
27
92902-06600-00 Washer, Plateワツシヤ，プレート; |
92902-06600-00 |
US $1.07 |
||
| replacement | |||||
|
27
|
27
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.07 |
||
|
28
|
28
97322-10180-00 Bolt |
97322-10180-00 |
US $16.16 |
||
| replacement | |||||
|
28
|
28
970-22101-80-00 Bolt, Hexagon |
970-22101-80-00 |
US $6.07 |
||
|
29
|
29
90201-100F7-00 Washer (7A9)ワツシヤ，プレート; |
90201-100F7-00 |
from US $2.27 |
||
|
30
|
30
92901-10100-00 Washer, Springワツシヤ，スプリング; |
92901-10100-00 |
from US $1.50 |
||
| replacement | |||||
|
30
|
30
92990-10100-00 Ybs67-10 Washer, Springワツシヤ，スプリング; |
92990-10100-00 |
from US $1.34 |
||
|
31
|
31
90480-01285-00
Grommet
|
90480-01285-00 |
— | ||
