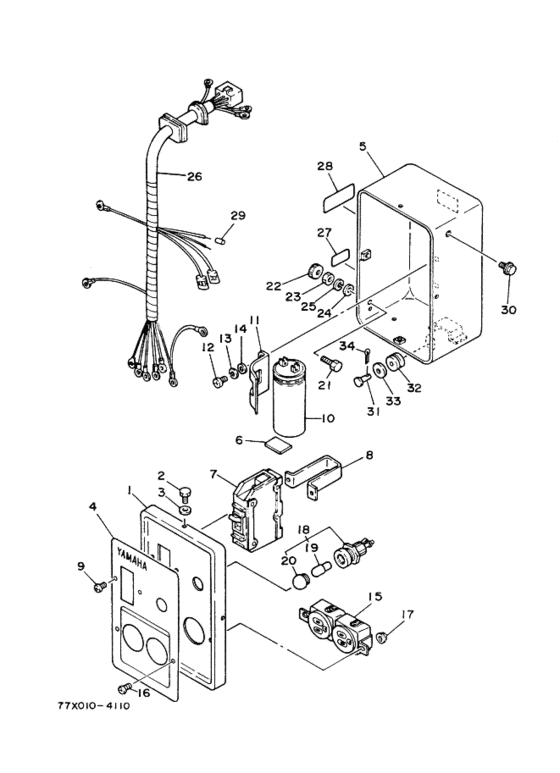

ｺﾝﾄﾛｰﾙﾎﾞﾂｸｽ (EF2600A) Diagram Yamaha EF2600A
- Model code
- EF2600A
- Year
- 1984
- Sales region
- Japan (010)
- Colour
- Naiad Blue (NAB; 0086)
- Color Variant
- A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77V-87252-00-86
Lens, Pilot Light
ボツクス，コントロール; ナイアドブルー |
77V-87252-00-86 |
— | ||
|
2
|
2
97301-05010-00 Bolt, Hexagon |
97301-05010-00 |
from US $1.66 |
||
| replacement | |||||
|
2
|
2
970-13050-10-00 Bolt |
970-13050-10-00 |
from US $0.83 |
||
|
3
|
3
929-01056-00-00
Washer
ワツシヤ，プレート; |
929-01056-00-00 |
— | ||
| replacements | |||||
|
3
|
3
92990-05600-00 Washer, Plateワツシヤ，プレート; |
92990-05600-00 |
from US $1.07 |
||
|
3
|
3
92907-05600-00 Washer, Plateワツシヤ，プレート; |
92907-05600-00 |
from US $1.07 |
||
|
4
|
4
77X-87217-00-00
Plate, Control
プレート，コントロール ; ６０ＨＺ; ＵＲ |
77X-87217-00-00 |
— | ||
|
4
|
4
77X-87217-10-00
Plate, Control
プレート，コントロール ; ５０ＨＺ; ＵＲ |
77X-87217-10-00 |
— | ||
|
5
|
5
7H5-87213-00-86 Cover Control Box (7H5-87213-00カバー，コントロールボツクス; ナイアドブルー |
7H5-87213-00-86 |
US $15.59 |
||
|
6
|
6
7H5-87219-00-00
Damper Control
ダンパ，コンデンサ; |
7H5-87219-00-00 |
— | ||
|
7
|
7
73R-87204-10-00
Breaker Comp
ブレーカコンプリート ; ６０ＨＺ; ＵＲ |
73R-87204-10-00 |
— | ||
|
7
|
7
7R1-87204-00-00
Breaker
ブレーカコンプリート ; ５０ＨＺ; ＵＲ |
7R1-87204-00-00 |
— | ||
|
8
|
8
7H5-87244-00-00
Holder, Breaker
ホルダ，ブレーカ; |
7H5-87244-00-00 |
— | ||
|
9
|
9
985-80050-08-00 Screw, Pan Head |
985-80050-08-00 |
from US $1.50 |
||
|
10
|
10
7V3-87107-01-00 Condenser Assyコンデンサアセンブリ; |
7V3-87107-01-00 |
US $101.67 |
||
|
11
|
11
7H5-87216-00-00 Holder, Condenserホルダ，コンデンサ; |
7H5-87216-00-00 |
from US $4.56 |
||
| replacement | |||||
|
11
|
11
7H5-87216-01-00 Holder, Condenserホルダ，コンデンサ; |
7H5-87216-01-00 |
from US $4.56 |
||
|
12
|
12
98501-05010-00 Screw, Pan Head |
98501-05010-00 |
US $1.21 |
||
| replacement | |||||
|
12
|
12
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
13
|
13
92902-05100-00 Washer, Springワツシヤ，スプリング; |
92902-05100-00 |
US $1.21 |
||
| replacement | |||||
|
13
|
13
92990-05100-00 Washer, Springワツシヤ，スプリング; |
92990-05100-00 |
from US $1.21 |
||
|
14
|
14
929-01056-00-00
Washer
ワツシヤ，プレート; |
929-01056-00-00 |
— | ||
| replacements | |||||
|
14
|
14
92990-05600-00 Washer, Plateワツシヤ，プレート; |
92990-05600-00 |
from US $1.07 |
||
|
14
|
14
92907-05600-00 Washer, Plateワツシヤ，プレート; |
92907-05600-00 |
from US $1.07 |
||
|
15
|
15
77V-87221-00-00 Receptacleコンセント １; |
77V-87221-00-00 |
from US $32.59 |
||
|
16
|
16
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.21 |
||
|
17
|
17
95702-04100-00 Nut, Flange |
95702-04100-00 |
from US $1.21 |
||
| replacement | |||||
|
17
|
17
95707-04500-00 Nut, Flange |
95707-04500-00 |
from US $1.21 |
||
|
18
|
18
7G5-87251-01-00 Socket, Pilot Lampソケツト，パイロツトライト; |
7G5-87251-01-00 |
US $15.12 |
||
|
19
|
19
7G5-87254-00-00 Bulb, Pilot Lamp．バルブ，パイロツトライト; |
7G5-87254-00-00 |
US $9.09 |
||
|
20
|
20
7G5-87252-00-00 Lens, Pilot Light．レンズ，パイロツトライト; |
7G5-87252-00-00 |
from US $2.83 |
||
|
21
|
21
90101-06484-00 Bolt |
90101-06484-00 |
from US $2.70 |
||
|
22
|
22
90179-06300-00 Nut |
90179-06300-00 |
from US $4.96 |
||
|
23
|
23
95302-06700-00 Nut, Hexagon |
95302-06700-00 |
from US $1.42 |
||
| replacements | |||||
|
23
|
23
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
23
|
23
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
|
24
|
24
92902-06600-00 Washer, Plateワツシヤ，プレート; |
92902-06600-00 |
US $1.07 |
||
| replacement | |||||
|
24
|
24
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.07 |
||
|
25
|
25
92902-06100-00 Washer, Springワツシヤ，スプリング; |
92902-06100-00 |
US $0.99 |
||
| replacement | |||||
|
25
|
25
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.99 |
||
|
26
|
26
77X-87226-00-00
Wire Harness Assy
ワイヤハーネスアセンブリ; |
77X-87226-00-00 |
— | ||
|
27
|
27
7H6-87261-00-00 Emblem 1 (Ground) |
7H6-87261-00-00 |
from US $1.70 |
||
| replacement | |||||
|
27
|
27
7NJ-87261-10-00 Emblem 1 (Ground) |
7NJ-87261-10-00 |
from US $1.70 |
||
|
28
|
28
7G5-87266-00-00
Emblem 6 (60Hz)
エンブレム ６ ; ６０ＨＺ; ＵＲ |
7G5-87266-00-00 |
— | ||
|
28
|
28
7G5-87266-10-00
Emblem 6 (50Hz)
エンブレム ６ ; ５０ＨＺ; ＵＲ |
7G5-87266-10-00 |
— | ||
|
29
|
29
7H5-8719F-00-00 Tube 7チユーブ ７; |
7H5-8719F-00-00 |
US $4.90 |
||
|
30
|
30
95801-06012-00 Bolt, Flange (1E2) |
95801-06012-00 |
from US $1.07 |
||
| replacements | |||||
|
30
|
30
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
30
|
30
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.07 |
||
|
31
|
31
90240-06040-00 Pin, Clevis |
90240-06040-00 |
from US $4.11 |
||
| replacement | |||||
|
31
|
31
90240-06103-00 Pin, Clevis (24X) |
90240-06103-00 |
from US $4.11 |
||
|
32
|
32
90480-14052-00 Grommet |
90480-14052-00 |
from US $1.35 |
||
|
33
|
33
90201-06067-00 Washer, Plateワツシヤ，プレート; |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
33
|
33
90201-06380-00 Washer Plainワツシヤ，プレート; |
90201-06380-00 |
from US $0.86 |
||
|
34
|
34
437-83525-00-00 Clip |
437-83525-00-00 |
US $1.84 |
||
| replacement | |||||
|
34
|
34
90468-10050-00 Clip (156-83525-00) |
90468-10050-00 |
from US $1.84 |
||
