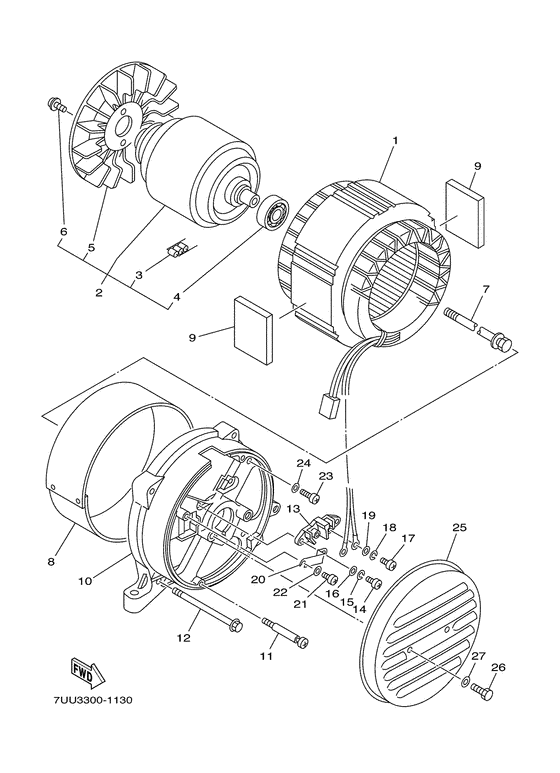

Generator 1 (FOR BRA,ARG,CHL) Diagram Yamaha EF2600A
- Year
- 2001
- Sales region
- Chile (030)
- Colour
- Faraway Blue (FWB; 00NJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
7NJ-87150-G0-00
Stator Assy
For arg,chl |
7NJ-87150-G0-00 |
— | ||
|
01
|
01
7NJ-87150-L0-00
Stator Assy
For bra |
7NJ-87150-L0-00 |
— | ||
|
02
|
02
7NJ-87160-00-00 Rotor Assembly |
7NJ-87160-00-00 |
from US $564.08 |
||
|
03
|
03
7NJ-87115-00-00 Rectifier Assembly 2 |
7NJ-87115-00-00 |
from US $25.85 |
||
|
04
|
04
933-06203-45-00 Bearing |
933-06203-45-00 |
from US $25.93 |
||
| replacement | |||||
|
04
|
04
93306-20328-00 Bearing |
93306-20328-00 |
from US $25.93 |
||
|
05
|
05
7LG-87172-01-00 Fan, Generator |
7LG-87172-01-00 |
US $27.72 |
||
|
06
|
06
90159-06032-00 Screw, With Washer |
90159-06032-00 |
from US $2.69 |
||
|
07
|
07
7LG-81152-00-00 Bolt |
7LG-81152-00-00 |
from US $9.92 |
||
|
08
|
08
7NJ-87153-00-00 Cover, Stator |
7NJ-87153-00-00 |
from US $16.04 |
||
|
09
|
09
7LG-87159-00-00 Seal, Stator |
7LG-87159-00-00 |
from US $1.13 |
||
|
10
|
10
7NJ-87131-00-00 Frame, Rear |
7NJ-87131-00-00 |
from US $112.05 |
||
|
11
|
11
7NJ-87192-00-00 Screw, Stator |
7NJ-87192-00-00 |
from US $4.04 |
||
|
12
|
12
95827-06105-00 Bolt, Flange |
95827-06105-00 |
from US $2.83 |
||
|
13
|
13
7NJ-87220-00-00 Terminal Sub Assembly 1 |
7NJ-87220-00-00 |
from US $15.58 |
||
|
14
|
14
985-07050-14-00 Screw, Pan Head |
985-07050-14-00 |
from US $1.34 |
||
|
15
|
15
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.56 |
||
|
16
|
16
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.07 |
||
|
17
|
17
985-07050-14-00 Screw, Pan Head |
985-07050-14-00 |
from US $1.34 |
||
|
18
|
18
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.56 |
||
|
19
|
19
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.07 |
||
|
20
|
20
7NJ-88195-00-00 Holder, Connector |
7NJ-88195-00-00 |
from US $10.28 |
||
|
21
|
21
985-07050-10-00
Screw, Pan Head
|
985-07050-10-00 |
— | ||
| replacement | |||||
|
21
|
21
985-17050-10-00 Screw, Pan Head |
985-17050-10-00 |
from US $1.21 |
||
|
22
|
22
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.07 |
||
|
23
|
23
985-07050-10-00
Screw, Pan Head
|
985-07050-10-00 |
— | ||
| replacement | |||||
|
23
|
23
985-17050-10-00 Screw, Pan Head |
985-17050-10-00 |
from US $1.21 |
||
|
24
|
24
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.07 |
||
|
25
|
25
7LG-87174-00-98 Cover, Rear EndLgb |
7LG-87174-00-98 |
from US $14.96 |
||
|
26
|
26
97007-06010-00 Bolt |
97007-06010-00 |
from US $1.56 |
||
| replacement | |||||
|
26
|
26
97017-06010-00 Bolt |
97017-06010-00 |
from US $1.34 |
||
|
27
|
27
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
