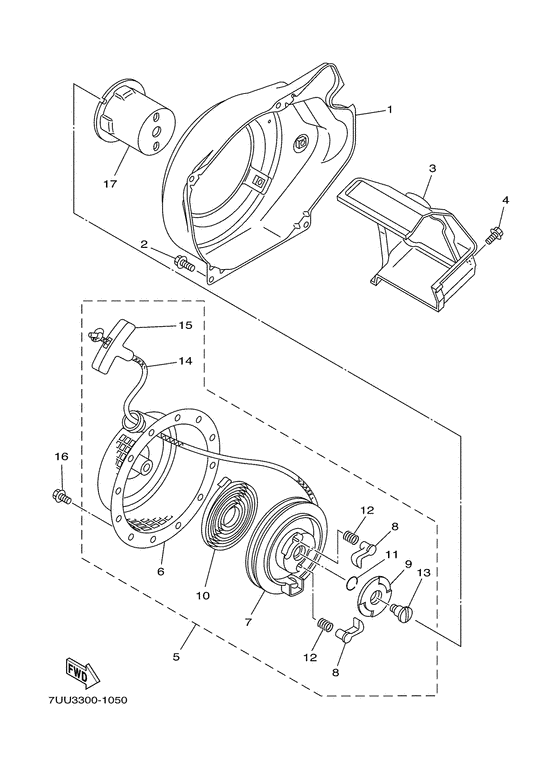

Air shroud. starter Diagram Yamaha EF2600A
- Year
- 2001
- Sales region
- Brazil (020)
- Colour
- Faraway Blue (FWB; 00NJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
7NJ-12621-00-00 Case, Fan |
7NJ-12621-00-00 |
from US $44.87 |
||
| replacement | |||||
|
01
|
01
7CN-E2621-01-00 CASE, FAN |
7CN-E2621-01-00 |
from US $50.02 |
||
|
02
|
02
958-07060-12-00
Bolt, Flange
|
958-07060-12-00 |
— | ||
| replacement | |||||
|
02
|
02
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
03
|
03
7NJ-12651-02-00 Air Shroud, Cylinder 1 |
7NJ-12651-02-00 |
from US $15.02 |
||
|
04
|
04
958-07060-12-00
Bolt, Flange
|
958-07060-12-00 |
— | ||
| replacement | |||||
|
04
|
04
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
05
|
05
7NJ-15710-01-00 Starter Assembly |
7NJ-15710-01-00 |
from US $69.08 |
||
| replacement | |||||
|
05
|
05
99999-03866-00 Starter Assembly |
99999-03866-00 |
from US $56.08 |
||
|
06
|
06
7NJ-15711-00-00 Case, Starter |
7NJ-15711-00-00 |
from US $27.17 |
||
|
07
|
07
JL8-15714-00-00 Drum, Sheave |
JL8-15714-00-00 |
from US $15.87 |
||
|
08
|
08
JL8-15741-00-00 Pawl, Drive |
JL8-15741-00-00 |
from US $2.27 |
||
|
09
|
09
JL8-15716-00-00 Plate, Drive |
JL8-15716-00-00 |
from US $8.36 |
||
|
10
|
10
7NJ-15713-00-00 Spring, Starter |
7NJ-15713-00-00 |
from US $20.40 |
||
|
11
|
11
JL8-15715-00-00 Spring, Friction |
JL8-15715-00-00 |
from US $1.56 |
||
| replacement | |||||
|
11
|
11
7TA-15715-00-00 Spring, Friction |
7TA-15715-00-00 |
from US $1.28 |
||
|
12
|
12
JK4-15743-00-00 Spring, Return |
JK4-15743-00-00 |
from US $1.42 |
||
|
13
|
13
7NJ-15793-00-00 Screw |
7NJ-15793-00-00 |
from US $2.27 |
||
|
14
|
14
7NJ-15751-01-00 Rope |
7NJ-15751-01-00 |
from US $8.36 |
||
| replacement | |||||
|
14
|
14
7EG-15781-00-00 Rope |
7EG-15781-00-00 |
from US $8.36 |
||
|
15
|
15
7LV-15755-00-00 Handle, Starter |
7LV-15755-00-00 |
from US $7.08 |
||
|
16
|
16
95807-06008-00 Bolt, Flange |
95807-06008-00 |
from US $1.56 |
||
| replacements | |||||
|
16
|
16
95817-06008-00 Bolt, Flange |
95817-06008-00 |
from US $1.56 |
||
|
16
|
16
90105-06069-00 Bolt, Washer Based |
90105-06069-00 |
from US $1.56 |
||
|
17
|
17
7NJ-15723-00-00 Pulley, Starter |
7NJ-15723-00-00 |
from US $11.67 |
||
