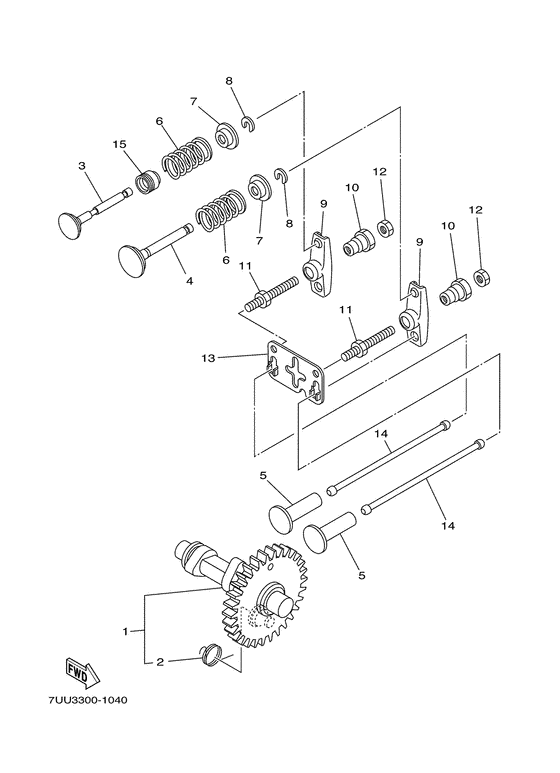

Camshaft & valve Diagram Yamaha EF2600A
- Year
- 2001
- Sales region
- Brazil (020)
- Colour
- Faraway Blue (FWB; 00NJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
7NJ-12170-03-00 Camshaft Assy 1 |
7NJ-12170-03-00 |
from US $120.06 |
||
| replacement | |||||
|
01
|
01
7CN-E2170-00-00 Camshaft Assy 1 |
7CN-E2170-00-00 |
from US $120.06 |
||
|
02
|
02
7NJ-12287-00-00 Spring, Decompression |
7NJ-12287-00-00 |
from US $1.28 |
||
|
03
|
03
7NJ-12111-00-00
Valve, Intake
|
7NJ-12111-00-00 |
— | ||
| replacement | |||||
|
03
|
03
7CN-E2111-00-00 Valve, Intake |
7CN-E2111-00-00 |
from US $17.85 |
||
|
04
|
04
7NJ-12121-00-00 Valve, Exhaust |
7NJ-12121-00-00 |
from US $46.70 |
||
| replacement | |||||
|
04
|
04
7NJ-12121-10-00 Valve, ex |
7NJ-12121-10-00 |
from US $35.80 |
||
|
05
|
05
7WC-12153-00-00 Lifter, Valve |
7WC-12153-00-00 |
from US $9.92 |
||
|
06
|
06
90501-205J4-00 Spring, Compression |
90501-205J4-00 |
from US $3.83 |
||
| replacement | |||||
|
06
|
06
90501-20800-00 Spring, Compression |
90501-20800-00 |
from US $3.83 |
||
|
07
|
07
7NJ-12117-00-00 Retainer, Valve Spring |
7NJ-12117-00-00 |
from US $5.04 |
||
| replacement | |||||
|
07
|
07
7CN-E2117-00-00 Retainer, Valve Spring |
7CN-E2117-00-00 |
from US $5.24 |
||
|
08
|
08
7NJ-12118-00-00 Lock, Valve Spring Retainer |
7NJ-12118-00-00 |
from US $2.69 |
||
| replacement | |||||
|
08
|
08
7CN-E2118-00-00 Lock, Valve Spring Retainer |
7CN-E2118-00-00 |
from US $1.56 |
||
|
09
|
09
7NN-12151-00-00 Arm, Valve Rocker |
7NN-12151-00-00 |
from US $11.86 |
||
| replacement | |||||
|
09
|
09
JA9-12151-00-00 Arm, Valve Rocker |
JA9-12151-00-00 |
from US $14.94 |
||
|
10
|
10
7NN-12165-02-00 Pivot, Rocker Arm |
7NN-12165-02-00 |
from US $7.93 |
||
|
11
|
11
7FK-12157-00-00 Nut, Lock |
7FK-12157-00-00 |
from US $3.04 |
||
| replacement | |||||
|
11
|
11
7CN-E2157-01-00 Bolt |
7CN-E2157-01-00 |
from US $1.98 |
||
|
12
|
12
7FK-12158-00-00 Nut, Lock |
7FK-12158-00-00 |
from US $1.28 |
||
| replacements | |||||
|
12
|
12
7CN-E2158-01-00 Nut, Lock |
7CN-E2158-01-00 |
from US $1.28 |
||
|
12
|
12
6EE-E2158-00-00 Nut, Lock |
6EE-E2158-00-00 |
from US $1.21 |
||
|
13
|
13
7NJ-12155-00-00 Guide, Push Rod |
7NJ-12155-00-00 |
from US $1.98 |
||
| replacement | |||||
|
13
|
13
7CN-E2155-01-00 Guide, Push Rod |
7CN-E2155-01-00 |
from US $1.98 |
||
|
14
|
14
7NJ-12154-00-00 Rod, Valve Push |
7NJ-12154-00-00 |
from US $6.23 |
||
| replacement | |||||
|
14
|
14
7CN-E2154-00-00 Rod, Valve Push |
7CN-E2154-00-00 |
from US $5.95 |
||
|
15
|
15
51Y-12119-00-00 Seal, Valve Stem |
51Y-12119-00-00 |
from US $5.64 |
||
