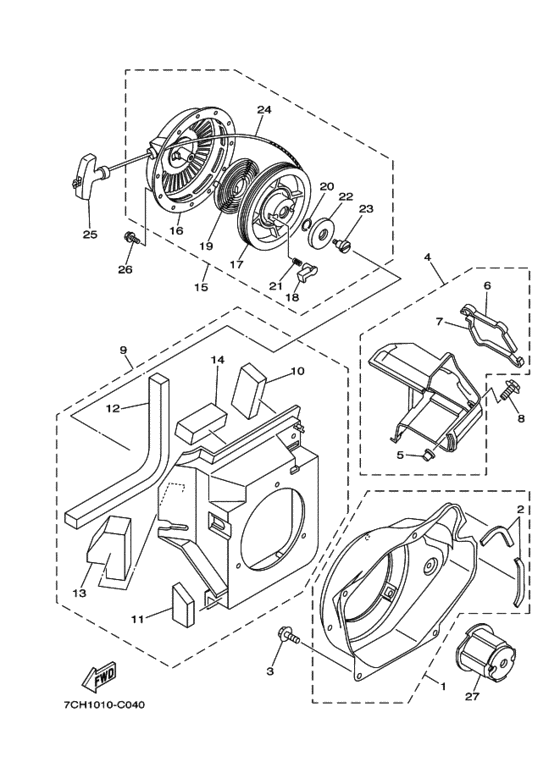

ｴｱｼﾕﾗｳﾄﾞ & ｽﾀｰﾀ Diagram Yamaha EF2800ISE
- Model code
- EF2800ISE
- Year
- 2004
- Sales region
- Japan (010)
- Colour
- Purplish Blue Solid 3 (PBS3; 0714)
- Color Variant
- A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7WL-12610-00-00 Fan Case Assyフアンケース アセンブリ; |
7WL-12610-00-00 |
from US $25.50 |
||
| replacements | |||||
|
1
|
1
7CN-E2610-10-00 Fan Case Assyフアンケース アセンブリ; |
7CN-E2610-10-00 |
from US $25.50 |
||
|
1
|
1
7CN-E2610-11-00 Fan Case Assyフアンケース アセンブリ; |
7CN-E2610-11-00 |
from US $25.50 |
||
|
2
|
2
7TD-1262J-00-00 Pad, Fan Case 3．パツド，フアンケース ３; |
7TD-1262J-00-00 |
from US $0.74 |
||
|
3
|
3
958-07060-12-00
Bolt, Flange
|
958-07060-12-00 |
— | ||
| replacement | |||||
|
3
|
3
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
4
|
4
7CH-12620-00-00 Air Shroud Assy |
7CH-12620-00-00 |
from US $30.97 |
||
|
5
|
5
90387-073M0-00 Collar．カラー; |
90387-073M0-00 |
from US $2.50 |
||
| replacement | |||||
|
5
|
5
90387-060U2-00 Collar．カラー; |
90387-060U2-00 |
from US $2.69 |
||
|
6
|
6
7TD-12658-00-00 Damper, Air Shroud 1．ダンパ，エアシユラウド １; |
7TD-12658-00-00 |
from US $1.28 |
||
| replacement | |||||
|
6
|
6
7CP-E2658-00-00 Damper, Air Shroud 1．ダンパ，エアシユラウド １; |
7CP-E2658-00-00 |
from US $1.28 |
||
|
7
|
7
7TD-12659-00-00 Damper, Air Shroud 2．ダンパ，エアシユラウド ２; |
7TD-12659-00-00 |
from US $1.28 |
||
| replacement | |||||
|
7
|
7
7CP-E2659-00-00 Damper, Air Shroud 2．ダンパ，エアシユラウド ２; |
7CP-E2659-00-00 |
from US $1.28 |
||
|
8
|
8
958-07060-12-00
Bolt, Flange
|
958-07060-12-00 |
— | ||
| replacement | |||||
|
8
|
8
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
9
|
9
7WL-1240H-00-00 Cover, Fan Caseカバーアセンブリ; |
7WL-1240H-00-00 |
US $45.58 |
||
| replacement | |||||
|
9
|
9
7CP-E2616-00-00 Cover, Fan Caseカバーアセンブリ; |
7CP-E2616-00-00 |
from US $30.89 |
||
|
10
|
10
7WL-12684-00-00 Damper, Duct 1．ダンパ，ダクト １; |
7WL-12684-00-00 |
from US $1.28 |
||
|
11
|
11
7WL-12685-00-00 Damper, Duct 2．ダンパ，ダクト ２; |
7WL-12685-00-00 |
from US $1.42 |
||
|
12
|
12
7WL-12686-00-00 Damper, Duct 3．ダンパ，ダクト ３; |
7WL-12686-00-00 |
from US $3.83 |
||
|
13
|
13
7WL-12223-00-00 Seal．シール; |
7WL-12223-00-00 |
from US $2.27 |
||
|
14
|
14
7WL-12877-00-00 Seal．シール; |
7WL-12877-00-00 |
from US $1.28 |
||
|
15
|
15
7WL-15710-01-00 Starter Assyスタータアセンブリ; |
7WL-15710-01-00 |
from US $108.22 |
||
|
16
|
16
7WL-15711-01-00 Case, Starter．ケース，スタータ; |
7WL-15711-01-00 |
from US $35.78 |
||
|
17
|
17
7VU-15714-00-00 Drum, Sheave．ドラム，シーブ; |
7VU-15714-00-00 |
from US $10.06 |
||
|
18
|
18
JL8-15741-00-00 Pawl, Drive．ポール，ドライブ; |
JL8-15741-00-00 |
from US $2.27 |
||
|
19
|
19
7TA-15713-00-00 Spring, Starter．スプリング，スタータ; |
7TA-15713-00-00 |
from US $10.63 |
||
| replacement | |||||
|
19
|
19
7TA-15713-01-00 Spring, Starter．スプリング，スタータ; |
7TA-15713-01-00 |
from US $10.63 |
||
|
20
|
20
7TA-15715-00-00 Spring, Friction．スプリング，フリクシヨン; |
7TA-15715-00-00 |
from US $1.28 |
||
|
21
|
21
JK4-15743-00-00 Spring, Return．スプリング，リターン; |
JK4-15743-00-00 |
from US $1.42 |
||
|
22
|
22
7VU-15716-00-00 Plate, Drive．プレート，ドライブ; |
7VU-15716-00-00 |
from US $6.38 |
||
|
23
|
23
7NJ-15793-00-00 Screw．スクリユ; |
7NJ-15793-00-00 |
from US $2.27 |
||
|
24
|
24
7VU-15751-00-00 Wire, Starter．ワイヤ，スタータ; |
7VU-15751-00-00 |
from US $6.44 |
||
|
25
|
25
7TD-15755-00-00 Handle, Starterハンドル，スタータ; |
7TD-15755-00-00 |
from US $5.38 |
||
| replacement | |||||
|
25
|
25
7TD-15755-01-00 Handle, Starterハンドル，スタータ; |
7TD-15755-01-00 |
from US $5.38 |
||
|
26
|
26
95807-06020-00 Bolt, Flange |
95807-06020-00 |
from US $1.13 |
||
| replacement | |||||
|
26
|
26
95817-06020-00 Bolt, Flange |
95817-06020-00 |
from US $1.13 |
||
|
27
|
27
7WL-15723-00-00 Pulley, Starterプーリ，スタータ; |
7WL-15723-00-00 |
from US $13.95 |
||
