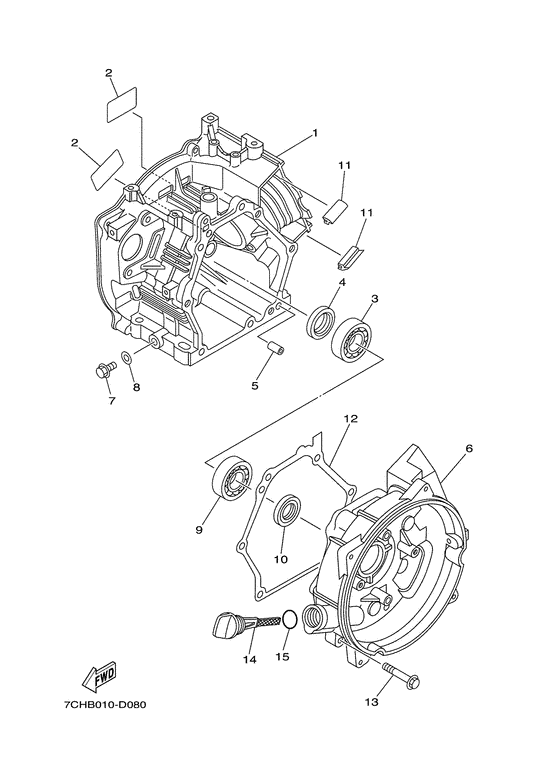

Crankcase Diagram Yamaha EF3000iSE
- Year
- 2005
- Sales region
- England (040)
- Colour
- Purplish Blue Solid 3 (PBS3; 0714)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
7CN-E5111-50-00 Crankcase 1 |
7CN-E5111-50-00 |
from US $289.31 |
||
| replacement | |||||
|
01
|
01
7CN-E5121-50-00 Crankcase 2 |
7CN-E5121-50-00 |
from US $221.58 |
||
|
02
|
02
7CP-E5315-00-00 Seal, Crankcase |
7CP-E5315-00-00 |
from US $1.35 |
||
|
03
|
03
93306-205XE-00 Bearing |
93306-205XE-00 |
from US $25.22 |
||
|
04
|
04
93102-25803-00 Oil Seal |
93102-25803-00 |
from US $9.63 |
||
| replacement | |||||
|
04
|
04
93102-25090-00 Oil Seal |
93102-25090-00 |
from US $12.75 |
||
|
05
|
05
995-30080-16-00
Pin, Dowel
|
995-30080-16-00 |
— | ||
| replacement | |||||
|
05
|
05
918-08160-23-00 Pin, Dowel(3Xw) |
918-08160-23-00 |
from US $1.36 |
||
|
06
|
06
7CP-E5411-00-00 Cover, Crankcase 2 |
7CP-E5411-00-00 |
from US $113.43 |
||
| replacement | |||||
|
06
|
06
7CP-E5421-00-00 Cover, Crankcase 2 |
7CP-E5421-00-00 |
from US $113.43 |
||
|
07
|
07
95027-10016-00 Bolt, Flange |
95027-10016-00 |
from US $1.56 |
||
|
08
|
08
90430-10801-00 Gasket |
90430-10801-00 |
from US $1.70 |
||
|
09
|
09
93306-205XE-00 Bearing |
93306-205XE-00 |
from US $25.22 |
||
|
10
|
10
93102-25803-00 Oil Seal |
93102-25803-00 |
from US $9.63 |
||
| replacement | |||||
|
10
|
10
93102-25090-00 Oil Seal |
93102-25090-00 |
from US $12.75 |
||
|
11
|
11
7CP-E5494-00-00 Seal, Protector |
7CP-E5494-00-00 |
from US $2.55 |
||
|
12
|
12
7CN-E5451-00-00 Gasket, Crankcase Cover 1 |
7CN-E5451-00-00 |
from US $5.10 |
||
| replacement | |||||
|
12
|
12
7CN-E5451-10-00 GASKET, CRANKCASE CO |
7CN-E5451-10-00 |
from US $5.10 |
||
|
13
|
13
95827-08035-00 Bolt, Flange |
95827-08035-00 |
from US $1.07 |
||
| replacement | |||||
|
13
|
13
95817-08035-00 Bolt, Flange |
95817-08035-00 |
from US $1.07 |
||
|
14
|
14
7CN-E5362-20-00 Plug, Oil Level |
7CN-E5362-20-00 |
from US $7.23 |
||
|
15
|
15
93210-22805-00 O-Ring |
93210-22805-00 |
from US $1.70 |
||
| replacement | |||||
|
15
|
15
93210-22344-00 O-Ring |
93210-22344-00 |
from US $1.70 |
||
