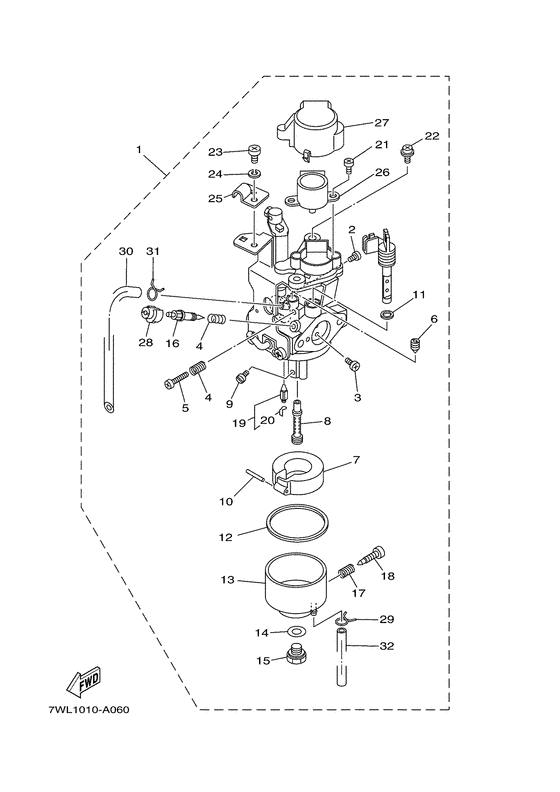

Carburetor Diagram Yamaha EF3000ISEC
- Year
- 2004
- Sales region
- France (020)
- Colour
- Purplish Blue Solid 3 (PBS3; 0714)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
7WL-14101-01-00 Carburetor assy 1 |
7WL-14101-01-00 |
from US $193.42 |
||
| replacement | |||||
|
01
|
01
7CP-E4101-01-00 COVER, CRANKCASE 2 |
7CP-E4101-01-00 |
from US $163.50 |
||
|
02
|
02
7RH-14216-00-00 Screw |
7RH-14216-00-00 |
from US $2.41 |
||
|
03
|
03
7RH-14486-00-00 Screw, Rod |
7RH-14486-00-00 |
from US $2.41 |
||
|
04
|
04
73A-14212-00-00 Spring |
73A-14212-00-00 |
from US $1.70 |
||
|
05
|
05
1WG-14922-00-00 Screw, Throttle |
1WG-14922-00-00 |
from US $4.96 |
||
|
06
|
06
620-14142-37-A0 Jet, Pilot (#375) |
620-14142-37-A0 |
from US $9.83 |
||
|
07
|
07
7LG-14185-00-00 Float |
7LG-14185-00-00 |
from US $19.41 |
||
|
08
|
08
7NN-1495F-1B-00 Nozzle, Main |
7NN-1495F-1B-00 |
from US $22.81 |
||
|
09
|
09
1HX-1423E-40-A0 Jet, Main (#1013) |
1HX-1423E-40-A0 |
from US $9.72 |
||
|
10
|
10
22F-14186-00-00 Pin, Float |
22F-14186-00-00 |
from US $2.75 |
||
|
11
|
11
7X9-14239-00-00 Seal |
7X9-14239-00-00 |
from US $1.42 |
||
|
12
|
12
7G0-14184-00-00 Gasket, Float Chamber |
7G0-14184-00-00 |
from US $7.65 |
||
|
13
|
13
7TD-14181-00-00 Body, Float Chamber 1 |
7TD-14181-00-00 |
from US $37.30 |
||
|
14
|
14
7G0-14227-00-00 Washer |
7G0-14227-00-00 |
from US $2.55 |
||
|
15
|
15
7TD-14162-00-00 Bolt, Holding |
7TD-14162-00-00 |
from US $5.81 |
||
|
16
|
16
7NJ-14211-00-00 Screw, Pilot Adjusting |
7NJ-14211-00-00 |
from US $3.97 |
||
|
17
|
17
73A-14212-00-00 Spring |
73A-14212-00-00 |
from US $1.70 |
||
|
18
|
18
7E1-14191-00-00 Plug, Drain |
7E1-14191-00-00 |
from US $4.39 |
||
|
19
|
19
7LG-14150-11-00 Needle Assy |
7LG-14150-11-00 |
from US $26.33 |
||
|
20
|
20
7EG-14159-00-00 Clip |
7EG-14159-00-00 |
from US $2.55 |
||
|
21
|
21
98502-03006-00 Screw, Pan Head |
98502-03006-00 |
US $2.13 |
||
| replacements | |||||
|
21
|
21
98580-03006-00 Screw, Pan Head |
98580-03006-00 |
from US $2.13 |
||
|
21
|
21
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
22
|
22
4SV-24453-00-00 Screw |
4SV-24453-00-00 |
from US $1.56 |
||
|
23
|
23
985-07050-08-00 Screw, Pan Head |
985-07050-08-00 |
from US $1.07 |
||
|
24
|
24
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
25
|
25
J45-14243-00-00 Plate |
J45-14243-00-00 |
from US $7.79 |
||
|
26
|
26
7VU-86240-00-00 Throttle Motor Assy |
7VU-86240-00-00 |
US $101.74 |
||
| replacement | |||||
|
26
|
26
7VU-81802-09-00 Throttle Motor Assy |
7VU-81802-09-00 |
from US $77.78 |
||
|
27
|
27
7VU-14293-00-00 Cover 1 |
7VU-14293-00-00 |
from US $4.39 |
||
|
28
|
28
7LV-14118-00-00 Cap |
7LV-14118-00-00 |
from US $5.53 |
||
|
29
|
29
22F-14139-00-00 Clip, Pipe |
22F-14139-00-00 |
from US $2.41 |
||
|
30
|
30
7WL-14197-00-00 Pipe |
7WL-14197-00-00 |
from US $7.93 |
||
|
31
|
31
14X-14937-00-00 Clip |
14X-14937-00-00 |
from US $4.96 |
||
|
32
|
32
1V3-14196-00-00 Hose (L200) |
1V3-14196-00-00 |
from US $1.85 |
||
| replacements | |||||
|
32
|
32
904-4505N-13-00 Hose (L200) |
904-4505N-13-00 |
from US $1.34 |
||
|
32
|
32
904-4505M-07-00 Hose (L700) |
904-4505M-07-00 |
from US $4.34 |
||
