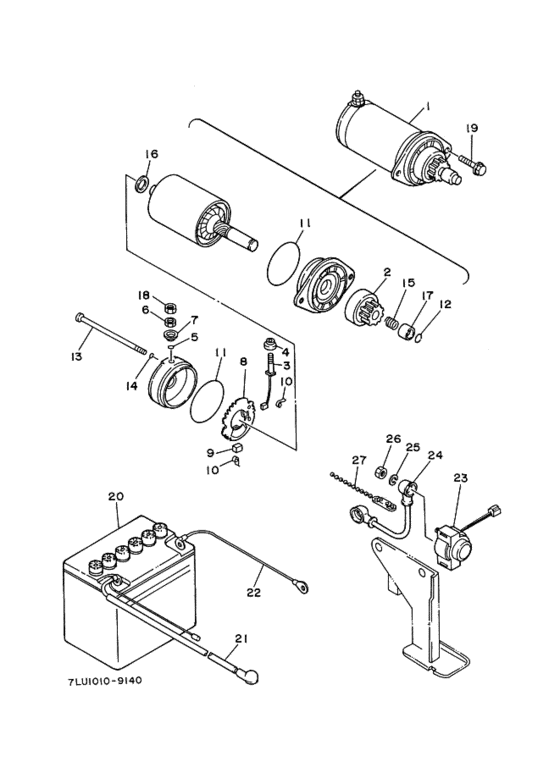

Starting motor Diagram Yamaha EF5000E
- Model code
- EF5000E
- Year
- 1991
- Sales region
- Japan (010)
- Colour
- Faraway Blue (FWB; 00NJ)
- Color Variant
- A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7KY-81800-00-00 Starting Motor Assemblyスタ−テイングモ−タアセンブリ; |
7KY-81800-00-00 |
from US $561.27 |
||
| replacement | |||||
|
1
|
1
7KY-81800-01-00 Starting Motor Assyスタ−テイングモ−タアセンブリ; |
7KY-81800-01-00 |
from US $561.27 |
||
|
2
|
2
84N-81832-50-00 Clutch, Over Run．クラツチ，オ−バ−ラン; |
84N-81832-50-00 |
from US $192.04 |
||
| replacement | |||||
|
2
|
2
84N-81832-51-00 Clutch, Over Run．クラツチ，オ−バ−ラン; |
84N-81832-51-00 |
from US $192.04 |
||
|
3
|
3
73A-81811-00-00 Brush 1．ブラシ １; |
73A-81811-00-00 |
from US $24.65 |
||
| replacement | |||||
|
3
|
3
73A-81811-01-00 BRUSH 1．ブラシ １; |
73A-81811-01-00 |
from US $24.65 |
||
|
4
|
4
73A-81829-50-00 Grommet．グロメツト; |
73A-81829-50-00 |
from US $3.68 |
||
|
5
|
5
73A-81847-00-00 O-Ring．Ｏ−リング; |
73A-81847-00-00 |
from US $4.39 |
||
|
6
|
6
4H7-81872-00-00 Nut, Special．ナツト，スペシヤル; |
4H7-81872-00-00 |
from US $5.81 |
||
|
7
|
7
73A-81829-00-00 Grommet．グロメツト; |
73A-81829-00-00 |
from US $2.98 |
||
|
8
|
8
8L6-81840-50-00 Brush Holder Assy．ブラシホルダアセンブリ; |
8L6-81840-50-00 |
from US $98.09 |
||
| replacement | |||||
|
8
|
8
8L6-81840-51-00 BRUSH HOLDER ASSY．ブラシホルダアセンブリ; |
8L6-81840-51-00 |
from US $92.77 |
||
|
9
|
9
73A-81812-00-00 Brush 2．ブラシ ２; |
73A-81812-00-00 |
from US $20.40 |
||
|
10
|
10
8L6-81813-50-00 Spring, Brush．スプリング，ブラシ; |
8L6-81813-50-00 |
from US $5.10 |
||
|
11
|
11
4H7-81844-00-00 O-Ring．ガスケツト; |
4H7-81844-00-00 |
from US $18.99 |
||
|
12
|
12
8L6-81834-50-00 Ring．リング; |
8L6-81834-50-00 |
from US $3.40 |
||
|
13
|
13
84N-81826-00-00 Bolt．ボルト; |
84N-81826-00-00 |
from US $11.33 |
||
|
14
|
14
8L6-81847-50-00 O-Ring．Ｏ−リング; |
8L6-81847-50-00 |
from US $3.97 |
||
|
15
|
15
8L6-81836-50-00 Spring, Lever．スプリング，レバ−; |
8L6-81836-50-00 |
from US $5.42 |
||
|
16
|
16
4H7-81843-50-00 Washer 1．ワツシヤ １; |
4H7-81843-50-00 |
from US $2.83 |
||
|
17
|
17
8L6-81833-50-00 Ring, Stop．リング，ストツプ; |
8L6-81833-50-00 |
from US $26.64 |
||
|
18
|
18
953-03066-00-00
Nut, Hexagon
．ナツト; |
953-03066-00-00 |
— | ||
| replacement | |||||
|
18
|
18
95380-06600-00 Nut, Hexagon．ナツト; |
95380-06600-00 |
from US $1.07 |
||
|
19
|
19
95811-08035-00 Bolt, Flange (95821-08035-00) |
95811-08035-00 |
from US $1.07 |
||
| replacement | |||||
|
19
|
19
95817-08035-00 Bolt, Flange |
95817-08035-00 |
from US $1.07 |
||
|
20
|
20
73A-82110-N0-00
Battery(Gs 26A19R 12V-21A/5H
バツテリ アセンブリ ; ＧＳ ２６Ａ１９Ｒ |
73A-82110-N0-00 |
— | ||
|
21
|
21
7LP-82115-00-00
Wire, Plus Lead
|
7LP-82115-00-00 |
— | ||
|
22
|
22
7LU-82116-00-00 Wire, Minus Leadワイヤ，マイナスリ−ド; |
7LU-82116-00-00 |
US $9.25 |
||
|
23
|
23
3AY-81940-00-00
Starter Relay Assy (Ms5D-611)
スタ−タリレーアセンブリ; |
3AY-81940-00-00 |
— | ||
| replacement | |||||
|
23
|
23
4KD-81940-00-00 Starter Relay Assy (Ms5D-611)スタ−タリレーアセンブリ; |
4KD-81940-00-00 |
from US $97.54 |
||
|
24
|
24
7LV-81815-00-00 Wire, Starterコ−ド，スタ−タ モ−タ; |
7LV-81815-00-00 |
US $13.19 |
||
|
25
|
25
929-90061-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-90061-00-00 |
— | ||
| replacement | |||||
|
25
|
25
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.99 |
||
|
26
|
26
953-03067-00-00
Nut
|
953-03067-00-00 |
— | ||
| replacements | |||||
|
26
|
26
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
26
|
26
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
|
27
|
27
90464-20031-00 Clamp |
90464-20031-00 |
from US $1.70 |
||
| replacement | |||||
|
27
|
27
90464-20824-00
Clamp
|
90464-20824-00 |
— | ||
