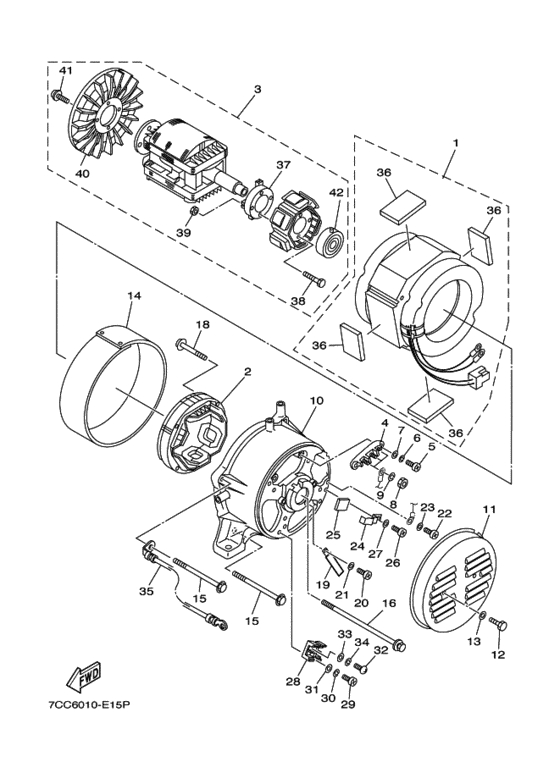

Generator Diagram Yamaha EF6000TE
- Model code
- EF6000TE
- Year
- 2006
- Sales region
- Japan (010)
- Colour
- Faraway Blue (FWB; 00NJ)
- Color Variant
- A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7CC-WH715-U0-00 Stator Assy Setステータアセンブリ; ＵＲ １００Ｖ／２００Ｖ−５０ＨＺ |
7CC-WH715-U0-00 |
US $958.32 |
||
|
1
|
1
7CC-WH715-T0-00 Stator Assy Setステータアセンブリ; ＵＲ １００Ｖ／２００Ｖ−６０ＨＺ |
7CC-WH715-T0-00 |
US $958.32 |
||
|
2
|
2
7CC-H712A-00-00 Stator Exiter Assy |
7CC-H712A-00-00 |
US $232.11 |
||
|
3
|
3
7CC-H7160-00-00 Rotor Assyロータアセンブリ; |
7CC-H7160-00-00 |
from US $972.84 |
||
| replacements | |||||
|
3
|
3
7C6-H7160-00-00 Rotor Assyロータアセンブリ; |
7C6-H7160-00-00 |
from US $972.84 |
||
|
3
|
3
7C6-H7160-20-00 ROTOR ASSYロータアセンブリ; |
7C6-H7160-20-00 |
from US $689.04 |
||
|
4
|
4
7CC-H7220-00-00 Terminal Sub Assy 1ターミナルサブアセンブリ １; |
7CC-H7220-00-00 |
from US $20.83 |
||
| replacement | |||||
|
4
|
4
7C6-H7220-00-00 Terminal Sub Assy 1ターミナルサブアセンブリ １; |
7C6-H7220-00-00 |
from US $20.83 |
||
|
5
|
5
985-07050-14-00 Screw, Pan Headスクリユ，パンヘツド; |
985-07050-14-00 |
from US $1.34 |
||
|
6
|
6
92907-05100-00 Washer, Springワツシヤ，スプリング; |
92907-05100-00 |
from US $1.56 |
||
|
7
|
7
92907-05600-00 Washer, Plateワツシヤ，プレート; |
92907-05600-00 |
from US $1.07 |
||
|
8
|
8
95307-05700-00 Nut |
95307-05700-00 |
from US $2.83 |
||
| replacement | |||||
|
8
|
8
953-17057-00-00 Nut |
953-17057-00-00 |
from US $2.42 |
||
|
9
|
9
92907-05100-00 Washer, Springワツシヤ，スプリング; |
92907-05100-00 |
from US $1.56 |
||
|
10
|
10
7CC-H7131-10-00 Frame, Rearフレーム，リヤ; |
7CC-H7131-10-00 |
US $259.74 |
||
|
11
|
11
7CC-H7174-00-00 Cover, Rear Endカバー，リヤエンド; |
7CC-H7174-00-00 |
from US $23.38 |
||
| replacement | |||||
|
11
|
11
7C6-H7174-00-00 Cover, Rear Endカバー，リヤエンド; |
7C6-H7174-00-00 |
from US $23.38 |
||
|
12
|
12
97007-06010-00 Boltボルト; |
97007-06010-00 |
from US $1.56 |
||
| replacement | |||||
|
12
|
12
97017-06010-00 Boltボルト; |
97017-06010-00 |
from US $1.34 |
||
|
13
|
13
92907-06600-00 Washer, Plateワツシヤ，プレート; |
92907-06600-00 |
from US $1.04 |
||
|
14
|
14
7CC-H7153-00-00 Cover, Statorカバー，ステータ; |
7CC-H7153-00-00 |
from US $17.43 |
||
|
15
|
15
90105-06843-00 Bolt, Flange |
90105-06843-00 |
US $3.26 |
||
| replacement | |||||
|
15
|
15
95817-06125-00 Bolt, Flange |
95817-06125-00 |
from US $3.12 |
||
|
16
|
16
7CC-H1152-00-00 Bolt |
7CC-H1152-00-00 |
from US $13.60 |
||
|
18
|
18
90159-05091-00 Screw, With Washer |
90159-05091-00 |
from US $1.98 |
||
|
19
|
19
90462-05061-00 Clamp (7J0) |
90462-05061-00 |
from US $3.54 |
||
| replacement | |||||
|
19
|
19
904-62102-36-00 Clamp |
904-62102-36-00 |
from US $3.54 |
||
|
20
|
20
985-07050-10-00
Screw, Pan Head
|
985-07050-10-00 |
— | ||
| replacement | |||||
|
20
|
20
985-17050-10-00 Screw, Pan Head |
985-17050-10-00 |
from US $1.21 |
||
|
21
|
21
92907-05600-00 Washer, Plateワツシヤ，プレート; |
92907-05600-00 |
from US $1.07 |
||
|
22
|
22
985-07050-10-00
Screw, Pan Head
|
985-07050-10-00 |
— | ||
| replacement | |||||
|
22
|
22
985-17050-10-00 Screw, Pan Head |
985-17050-10-00 |
from US $1.21 |
||
|
23
|
23
92907-05600-00 Washer, Plateワツシヤ，プレート; |
92907-05600-00 |
from US $1.07 |
||
|
24
|
24
7CC-H8195-10-00
Holder, Connector
|
7CC-H8195-10-00 |
— | ||
|
25
|
25
7CC-H713J-00-00 Damper |
7CC-H713J-00-00 |
from US $6.38 |
||
| replacement | |||||
|
25
|
25
7C6-H713J-00-00 Damper |
7C6-H713J-00-00 |
from US $6.38 |
||
|
26
|
26
985-07050-10-00
Screw, Pan Head
|
985-07050-10-00 |
— | ||
| replacement | |||||
|
26
|
26
985-17050-10-00 Screw, Pan Head |
985-17050-10-00 |
from US $1.21 |
||
|
27
|
27
92907-05600-00 Washer, Plateワツシヤ，プレート; |
92907-05600-00 |
from US $1.07 |
||
|
28
|
28
7CC-H7220-20-00 Terminal Sub Assy 1ターミナルサブアセンブリ １; |
7CC-H7220-20-00 |
US $34.71 |
||
|
29
|
29
98507-04016-00 Screw, Pan Head |
98507-04016-00 |
from US $1.42 |
||
| replacement | |||||
|
29
|
29
985-17040-16-00 Screw, Pan Head |
985-17040-16-00 |
from US $1.13 |
||
|
30
|
30
92907-04100-00 Washer, Springワツシヤ，スプリング; |
92907-04100-00 |
from US $1.21 |
||
|
31
|
31
92907-04600-00 Washer(Jf2) |
92907-04600-00 |
from US $1.07 |
||
|
32
|
32
7CC-H6571-T0-00 Screw, Terminal |
7CC-H6571-T0-00 |
US $6.23 |
||
|
33
|
33
92907-04600-00 Washer(Jf2) |
92907-04600-00 |
from US $1.07 |
||
|
34
|
34
92907-04100-00 Washer, Springワツシヤ，スプリング; |
92907-04100-00 |
from US $1.21 |
||
|
35
|
35
7CC-H2116-20-00 Wire, Minus Leadワイヤ，マイナスリード; |
7CC-H2116-20-00 |
US $4.82 |
||
|
36
|
36
7CC-H7159-00-00 Seal, Stator．シール，スタータ; |
7CC-H7159-00-00 |
from US $10.63 |
||
| replacement | |||||
|
36
|
36
905-20100-19-00 Damper, Plate．シール，スタータ; |
905-20100-19-00 |
from US $9.63 |
||
|
37
|
37
7CC-H7115-00-00 Rectifier Assy 2．レクチフアイアアセンブリ ２; |
7CC-H7115-00-00 |
from US $106.38 |
||
| replacements | |||||
|
37
|
37
7C6-H7115-00-00 Rectifier Assy 2．レクチフアイアアセンブリ ２; |
7C6-H7115-00-00 |
from US $106.38 |
||
|
37
|
37
7C6-H7115-20-00 Rectifier Assy．レクチフアイアアセンブリ ２; |
7C6-H7115-20-00 |
US $118.80 |
||
|
38
|
38
97027-05050-00 Bolt, Hexagon．ボルト; |
97027-05050-00 |
from US $1.55 |
||
|
39
|
39
95307-05600-00 Nut(N28)．ナツト; |
95307-05600-00 |
from US $1.26 |
||
| replacement | |||||
|
39
|
39
95317-05600-00 Nut．ナツト; |
95317-05600-00 |
from US $2.13 |
||
|
40
|
40
7CC-H7172-00-00 Fan, Generator．フアン，ゼネレータ; |
7CC-H7172-00-00 |
from US $24.09 |
||
| replacement | |||||
|
40
|
40
7C6-H7172-00-00 Fan, Generator．フアン，ゼネレータ; |
7C6-H7172-00-00 |
from US $21.73 |
||
|
41
|
41
90159-06384-00
Screw, With Washer
．スクリユ，ウイズワツシヤ; |
90159-06384-00 |
— | ||
|
42
|
42
93306-37202-00 Bearing．ベアリング; |
93306-37202-00 |
from US $34.85 |
||
