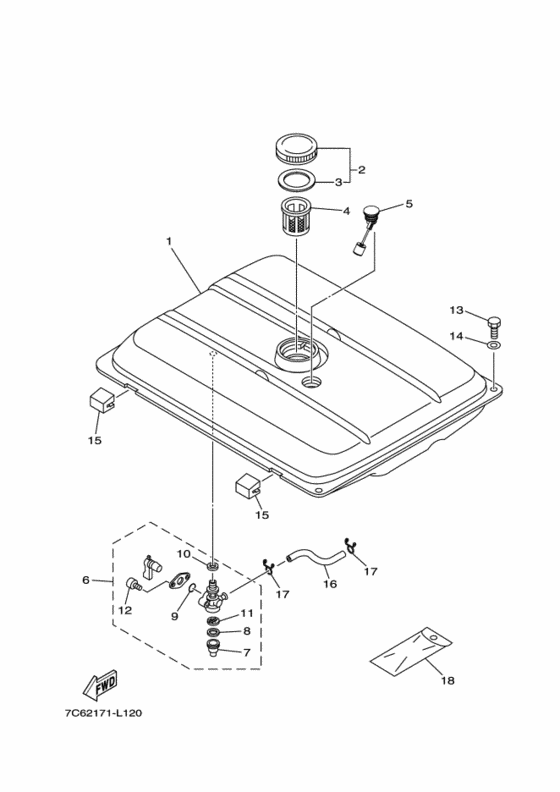

Fuel tank Diagram Yamaha EF6000TE
- Model code
- 7C66
- Year
- 2012
- Sales region
- Japan (020)
- Colour
- ﾌｱﾗｳｴｲ ﾌﾞﾙ-
- Color Variant
- A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7C5-F4110-00-00 Fuel Tank Comp |
7C5-F4110-00-00 |
from US $250.07 |
||
|
2
|
2
7C2-F4610-00-00 Cap Assy |
7C2-F4610-00-00 |
from US $19.41 |
||
| replacements | |||||
|
2
|
2
7C2-F4610-01-00 Cap Assy |
7C2-F4610-01-00 |
from US $19.41 |
||
|
2
|
2
7XC-F4610-05-00 Cap Assy |
7XC-F4610-05-00 |
US $52.74 |
||
|
3
|
3
7C2-F4612-00-00 Packing, Cap |
7C2-F4612-00-00 |
from US $7.51 |
||
|
4
|
4
7C3-F4167-00-00 Strainer |
7C3-F4167-00-00 |
US $11.48 |
||
|
5
|
5
7C6-H5710-00-00 Fuel Level Gauge Assy |
7C6-H5710-00-00 |
from US $17.57 |
||
| replacement | |||||
|
5
|
5
7C6-H5710-01-00 Fuel Level Gauge Ass |
7C6-H5710-01-00 |
from US $13.48 |
||
|
6
|
6
7CN-F4500-00-00 Fuel Cock Assy 1 |
7CN-F4500-00-00 |
from US $27.20 |
||
| replacement | |||||
|
6
|
6
7CN-F4500-01-00 FUEL COCK ASSY 1 |
7CN-F4500-01-00 |
from US $27.20 |
||
|
7
|
7
7J3-24521-00-00 Cup, Filter |
7J3-24521-00-00 |
from US $1.98 |
||
|
8
|
8
4X8-24565-00-00
Gasket
|
4X8-24565-00-00 |
— | ||
| replacement | |||||
|
8
|
8
4X8-24565-10-00 GASKET |
4X8-24565-10-00 |
from US $7.79 |
||
|
9
|
9
7NJ-24534-00-00 Seal, Cock |
7NJ-24534-00-00 |
from US $3.40 |
||
|
10
|
10
7NJ-24532-00-00 Gasket |
7NJ-24532-00-00 |
from US $1.13 |
||
| replacement | |||||
|
10
|
10
7NJ-24532-10-00 Gasket |
7NJ-24532-10-00 |
from US $1.13 |
||
|
11
|
11
7NJ-24515-01-00 Net, Filter 2 |
7NJ-24515-01-00 |
from US $1.70 |
||
|
12
|
12
98507-03008-00 Screw, Pan Head |
98507-03008-00 |
from US $2.27 |
||
| replacement | |||||
|
12
|
12
98517-03008-00 Screw, Pan Head |
98517-03008-00 |
from US $2.27 |
||
|
13
|
13
97002-06012-00 Bolt(80N) |
97002-06012-00 |
from US $3.12 |
||
| replacements | |||||
|
13
|
13
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
13
|
13
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
|
14
|
14
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
15
|
15
7C2-F4181-00-00 Damper, Locating 1 |
7C2-F4181-00-00 |
from US $1.42 |
||
|
16
|
16
7C6-F4311-00-00 Pipe, Fuel 1 |
7C6-F4311-00-00 |
US $9.92 |
||
|
17
|
17
904-67098-04-00 Clip |
904-67098-04-00 |
from US $0.70 |
||
|
18
|
18
7CA-F8100-01-00 Tool Kit |
7CA-F8100-01-00 |
from US $4.07 |
||
