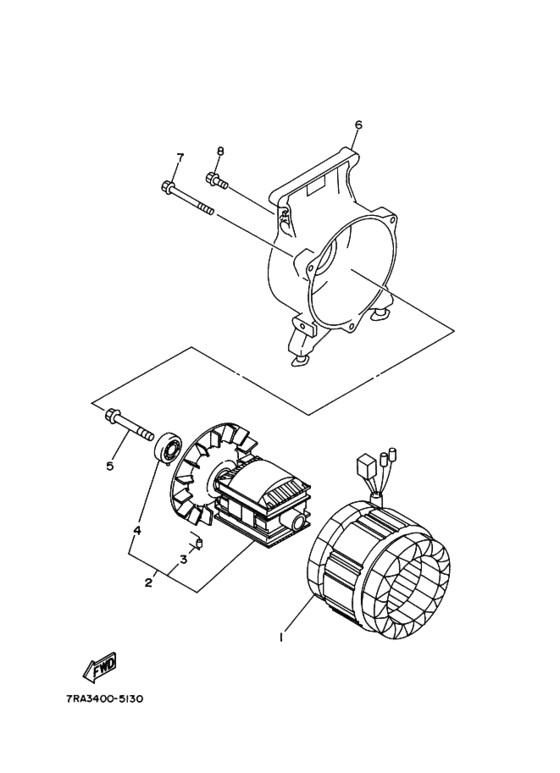

Generator et800 (JPN) Diagram Yamaha ET800
- Model code
- ET800
- Year
- 1995
- Sales region
- Japan (010)
- Colour
- Faraway Blue (FWB; 00NJ)
- Color Variant
- A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7RB-87150-00-00 Stator Assy (100V-60Hz)ＳＴＡＴＯＲ ＡＳＳＹ ; １００Ｖ−６０Ｈｚ; ＵＲ |
7RB-87150-00-00 |
US $437.84 |
||
|
1
|
1
7RB-87150-10-00 Stator Assy (100V-50Hz)ＳＴＡＴＯＲ ＡＳＳＹ ; １００Ｖ−５０Ｈｚ; ＵＲ |
7RB-87150-10-00 |
US $362.10 |
||
|
2
|
2
7RB-87160-00-00 Rotor AssemblyＲＯＴＯＲ ＡＳＳＹ; |
7RB-87160-00-00 |
from US $265.97 |
||
|
3
|
3
90983-03066-00 Diode, Ally．ＤＩＯＤＥ， ＡＬＬＹ; |
90983-03066-00 |
from US $12.15 |
||
|
4
|
4
933-06203-45-00 Bearing．ＢＥＡＲＩＮＧ; 参照; （外径 ４３ｍｍ） |
933-06203-45-00 |
from US $25.93 |
||
| replacement | |||||
|
4
|
4
93306-20328-00 Bearing．ＢＥＡＲＩＮＧ; 参照; （外径 ４３ｍｍ） |
93306-20328-00 |
from US $25.93 |
||
|
5
|
5
95827-08150-00 Bolt, FlangeＢＯＬＴ， ＦＬＡＮＧＥ; |
95827-08150-00 |
from US $4.64 |
||
|
6
|
6
7RB-87131-00-00 Frame, RearＦＲＡＭＥ， ＲＥＡＲ; |
7RB-87131-00-00 |
US $215.53 |
||
|
7
|
7
95827-06085-00 Bolt, FlangeＢＯＬＴ， ＦＬＡＮＧＥ; |
95827-06085-00 |
from US $2.41 |
||
|
8
|
8
90101-06484-00 BoltＢＯＬＴ; |
90101-06484-00 |
from US $2.70 |
||
