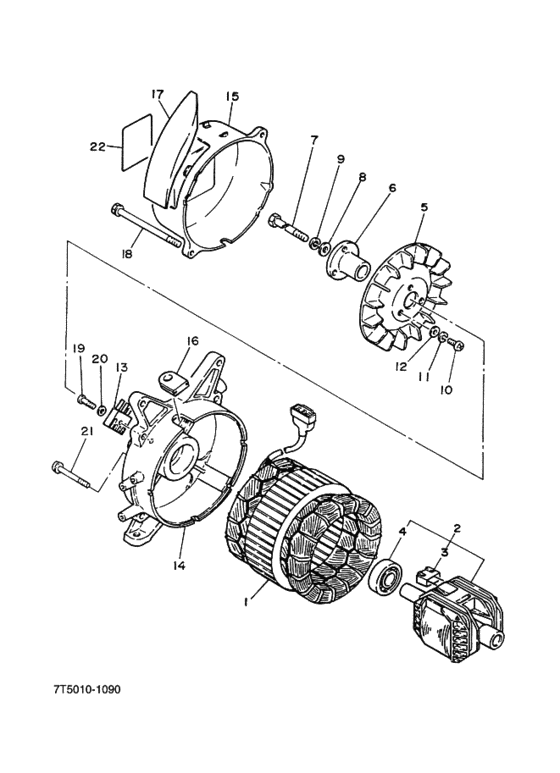

Generator Diagram Yamaha ET800
- Model code
- ET800
- Year
- 1981
- Sales region
- Japan (010)
- Colour
- Naiad Blue (NAB; 0086)
- Color Variant
- A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7N2-87150-00-00
Stator Assy
ステータアセンブリ ; ６０ＨＺ |
7N2-87150-00-00 |
— | ||
|
1
|
1
7N2-87150-10-00
Stator Assy
ステータアセンブリ ; ５０ＨＺ |
7N2-87150-10-00 |
— | ||
|
2
|
2
7N2-87160-00-00
Rotor Assy
ロータアセンブリ，ゼネレータ; |
7N2-87160-00-00 |
— | ||
|
3
|
3
7G5-87115-00-00 Recifier Assembly．レクチフアイヤコンプリート ２; |
7G5-87115-00-00 |
from US $33.16 |
||
|
4
|
4
93306-20318-00 Bearing．ベアリング ; Ｂ６２０３−２ＲＵ |
93306-20318-00 |
from US $19.55 |
||
| replacement | |||||
|
4
|
4
933-06203-48-00 Bearing．ベアリング ; Ｂ６２０３−２ＲＵ |
933-06203-48-00 |
from US $16.88 |
||
|
5
|
5
7G5-87172-00-00 Fan, Generatorフアン，ゼネレータ; |
7G5-87172-00-00 |
US $41.17 |
||
|
6
|
6
7G5-87142-00-00
Support, Fan
サポート，フアン; |
7G5-87142-00-00 |
— | ||
|
7
|
7
97322-08175-00 Boltボルト，ヘキサゴン; |
97322-08175-00 |
US $12.63 |
||
|
8
|
8
90201-08744-00 Washer, Plateワツシヤ，プレート; |
90201-08744-00 |
US $5.10 |
||
|
9
|
9
92902-08100-00 Washer, Springワツシヤ，スプリング; |
92902-08100-00 |
from US $0.85 |
||
| replacement | |||||
|
9
|
9
92907-08100-00 Washer, Springワツシヤ，スプリング; |
92907-08100-00 |
from US $0.85 |
||
|
10
|
10
925-02060-16-00
Screw, Pan Head (J10)
|
925-02060-16-00 |
— | ||
| replacement | |||||
|
10
|
10
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.55 |
||
|
11
|
11
92902-06100-00 Washer, Springワツシヤ，スプリング; |
92902-06100-00 |
US $0.99 |
||
| replacement | |||||
|
11
|
11
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.99 |
||
|
12
|
12
929-02062-00-00
Washer, Plain
ワツシヤ，プレーン; |
929-02062-00-00 |
— | ||
| replacement | |||||
|
12
|
12
92990-06200-00 Washer, Plainワツシヤ，プレーン; |
92990-06200-00 |
from US $1.07 |
||
|
13
|
13
7G5-87105-00-00 Rectifier Assy 1レクチフアイヤコンプリート １; |
7G5-87105-00-00 |
from US $46.61 |
||
| replacement | |||||
|
13
|
13
7G5-87105-01-00 Rectifier Assembly 1 (7G5-87105レクチフアイヤコンプリート １; |
7G5-87105-01-00 |
from US $39.83 |
||
|
14
|
14
7G5-87131-00-00
Frame, Rear
フレーム，リヤ; |
7G5-87131-00-00 |
— | ||
|
15
|
15
7G5-87174-00-00 Cover, Rear Endカバー，リヤエンド; |
7G5-87174-00-00 |
US $28.21 |
||
|
16
|
16
90480-20280-00 Grommet |
90480-20280-00 |
from US $2.64 |
||
|
17
|
17
7G5-87175-00-00
Duct, Rear
|
7G5-87175-00-00 |
— | ||
|
18
|
18
90105-06182-00 Bolt, Flangeボルト，ワツシヤベースドヘツドヘキサゴン; |
90105-06182-00 |
US $4.11 |
||
|
19
|
19
98501-05020-00 Screw, Pan Head |
98501-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
19
|
19
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.34 |
||
|
20
|
20
929-01056-00-00
Washer
ワツシヤ，プレート; |
929-01056-00-00 |
— | ||
| replacements | |||||
|
20
|
20
92990-05600-00 Washer, Plateワツシヤ，プレート; |
92990-05600-00 |
from US $1.07 |
||
|
20
|
20
92907-05600-00 Washer, Plateワツシヤ，プレート; |
92907-05600-00 |
from US $1.07 |
||
|
21
|
21
7G5-87192-00-00
Screw, Stator
スクリユ，ステータ; |
7G5-87192-00-00 |
— | ||
|
22
|
22
7T5-24163-00-00
Emblem 3
エンブレム ; ６０ＨＺ |
7T5-24163-00-00 |
— | ||
|
22
|
22
7T5-24163-10-00
Emblem 3
エンブレム ; ５０ＨＺ |
7T5-24163-10-00 |
— | ||
