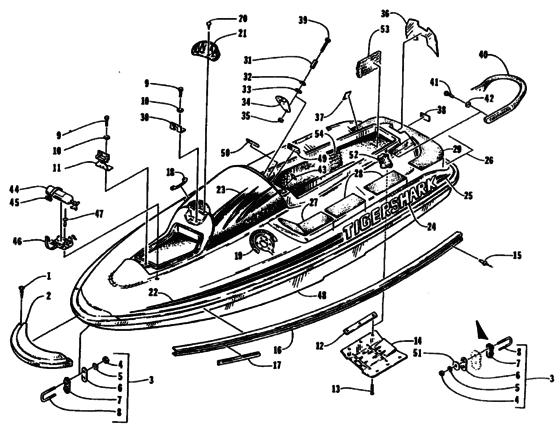

Hull and deck assembly Diagram Arctic Cat MONTEGO
- Year
- 1994
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0623-453 ClipRetaining |
0623-453 |
US $8.28 |
||
|
2
|
2
0673-251
Nose
|
0673-251 |
— | ||
| replacement | |||||
|
2
|
2
0673-935
Nose
|
0673-935 |
— | ||
|
3
|
3
0624-002 Eye hook assemblyInc. 4, 8 |
0624-002 |
US $64.75 |
||
|
4
|
4
0624-149 Nut |
0624-149 |
US $6.44 |
||
|
5
|
5
0624-027 WasherLock |
0624-027 |
US $1.70 |
||
|
6
|
6
0624-150 PlateSupport |
0624-150 |
US $19.11 |
||
|
7
|
7
0624-165 Gasket1; rubber |
0624-165 |
US $11.01 |
||
|
8
|
8
0624-151 HookEye |
0624-151 |
US $23.24 |
||
|
9
|
9
0624-092 ScrewCap |
0624-092 |
US $10.80 |
||
|
10
|
10
0624-200 WasherLock |
0624-200 |
US $4.56 |
||
|
11
|
11
0673-407 HingeHatch ass'y |
0673-407 |
US $35.32 |
||
| replacement | |||||
|
11
|
11
0673-781 HingeHatch assembly |
0673-781 |
US $35.32 |
||
|
12
|
12
0673-006 PlateNut |
0673-006 |
US $27.95 |
||
|
13
|
13
0624-184 ScrewMachine |
0624-184 |
US $10 |
||
|
14
|
14
0673-233 PlateRide |
0673-233 |
US $175.68 |
||
|
15
|
15
0624-030 Rivet |
0624-030 |
US $50 |
||
|
16
|
16
0673-147 TrimSide; edge |
0673-147 |
US $188.87 |
||
|
17
|
17
0673-168 InsertTrim |
0673-168 |
US $109.63 |
||
|
18
|
18
1611-605
Decal
|
1611-605 |
— | ||
|
19
|
19
1611-604
Decal
|
1611-604 |
— | ||
|
20
|
20
0623-269 ClipRetaining |
0623-269 |
US $8.25 |
||
|
21
|
21
0673-245 GrateAir intake |
0673-245 |
US $11.45 |
||
|
22
|
22
0614-034 DecalRight; deck front |
0614-034 |
US $90.98 |
||
|
22
|
22
0614-035
Decal
|
0614-035 |
— | ||
|
23
|
23
0614-032
Decal
|
0614-032 |
— | ||
|
23
|
23
0614-033
Decal
|
0614-033 |
— | ||
|
24
|
24
0614-038
Decal
|
0614-038 |
— | ||
|
25
|
25
0614-037
Decal
|
0614-037 |
— | ||
|
25
|
25
0614-036
Decal
|
0614-036 |
— | ||
|
26
|
26
0773-120
Pad
|
0773-120 |
— | ||
|
27
|
27
0673-252
Pad
|
0673-252 |
— | ||
|
27
|
27
0673-253
Pad
|
0673-253 |
— | ||
|
28
|
28
0673-302
Pad
|
0673-302 |
— | ||
|
29
|
29
0673-254 PadRear; foot |
0673-254 |
US $103.40 |
||
|
30
|
30
0673-297 CatchLatch |
0673-297 |
US $5.38 |
||
|
31
|
31
0673-485 StopSteering |
0673-485 |
US $6.48 |
||
|
32
|
32
0624-008 WasherFlat |
0624-008 |
US $4.46 |
||
|
33
|
33
0623-391 WasherRubber |
0623-391 |
US $6.05 |
||
|
34
|
34
0673-417 PlateBacking |
0673-417 |
US $16.63 |
||
|
35
|
35
0624-009 NutThin; lock |
0624-009 |
US $4.32 |
||
|
36
|
36
0614-053
Decal
|
0614-053 |
— | ||
|
37
|
37
0614-066 DecalUscg exemption |
0614-066 |
US $4.81 |
||
|
38
|
38
1611-609
Decal
|
1611-609 |
— | ||
|
39
|
39
0624-228 Washer |
0624-228 |
US $3.70 |
||
|
40
|
40
0624-223 ScrewCap |
0624-223 |
US $5.66 |
||
|
41
|
41
0624-226 ScrewCap |
0624-226 |
US $1.76 |
||
|
42
|
42
0673-239
Handle
|
0673-239 |
— | ||
| replacement | |||||
|
42
|
42
0773-384
Handle
|
0773-384 |
— | ||
|
43
|
43
1611-866
Decal
|
1611-866 |
— | ||
|
44
|
44
0673-093
Extinguisher
|
0673-093 |
— | ||
| replacement | |||||
|
44
|
44
0678-534
Fire extinguisher
|
0678-534 |
— | ||
|
45
|
45
0673-128 Tie down |
0673-128 |
US $10.21 |
||
|
46
|
46
0673-299 BracketExtinguisher |
0673-299 |
US $11.45 |
||
| replacement | |||||
|
46
|
46
0673-681 BracketExtinguisher |
0673-681 |
US $11.45 |
||
|
47
|
47
0624-030 Rivet |
0624-030 |
US $50 |
||
|
48
|
48
0773-200 Hull/deck ass'y |
0773-200 |
US $4,206.88 |
||
|
49
|
49
0614-068 DecalChoke |
0614-068 |
US $5.05 |
||
|
50
|
50
0614-059 DecalCommon sense |
0614-059 |
US $12.97 |
||
|
51
|
51
0624-223 ScrewCap |
0624-223 |
US $5.66 |
||
