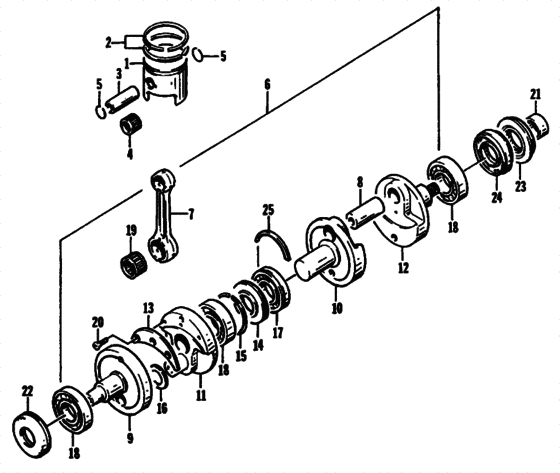

Crankshaft Diagram Arctic Cat MONTEGO
- Year
- 1995
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3008-223 PistonStandard |
3008-223 |
US $113.37 |
||
| replacement | |||||
|
1
|
1
3008-383 PistonStandard |
3008-383 |
US $117.15 |
||
|
1
|
1
3008-181
Piston + .010"
|
3008-181 |
— | ||
|
1
|
1
3008-182 Piston + .020"Optional |
3008-182 |
US $130.81 |
||
|
2
|
2
3008-224 Ring setStandard |
3008-224 |
US $107.13 |
||
| replacement | |||||
|
2
|
2
3008-396 Ring setStandard |
3008-396 |
US $111.57 |
||
|
2
|
2
3008-183 Ring set + .010"Optional |
3008-183 |
US $70.78 |
||
|
2
|
2
3008-184 Ring set + .020"Optional |
3008-184 |
US $99.28 |
||
|
3
|
3
3003-338 PinPiston |
3003-338 |
US $38.17 |
||
| replacement | |||||
|
3
|
3
3008-482 PinPiston |
3008-482 |
US $44.38 |
||
|
4
|
4
3003-433 BearingPiston |
3003-433 |
US $46.37 |
||
|
5
|
5
3003-439 Circlip |
3003-439 |
US $8 |
||
|
6
|
6
3008-063 Crankshaft assemblyInc. 7-20 |
3008-063 |
US $3,030.10 |
||
| replacement | |||||
|
6
|
6
3678-001 Crankshaft assemblyInc. 7-20 |
3678-001 |
US $3,030.10 |
||
|
7
|
7
3008-062 Connecting rod |
3008-062 |
US $218.30 |
||
|
8
|
8
3008-064 Crank pin |
3008-064 |
US $56.02 |
||
| replacement | |||||
|
8
|
8
3008-429 Crank pin |
3008-429 |
US $56.02 |
||
|
9
|
9
3008-065 CrankshaftRight |
3008-065 |
US $441.60 |
||
|
10
|
10
3008-066 CrankshaftCenter |
3008-066 |
US $404.80 |
||
|
11
|
11
3008-067 Wheel |
3008-067 |
US $456.32 |
||
|
12
|
12
3008-068 CrankshaftLeft |
3008-068 |
US $448.64 |
||
|
13
|
13
3008-069 Balancer |
3008-069 |
US $39.81 |
||
|
14
|
14
3008-070
Race
|
3008-070 |
— | ||
|
15
|
15
3003-817 Ring |
3003-817 |
US $32.26 |
||
|
16
|
16
3008-019 Washer |
3008-019 |
US $75.75 |
||
|
17
|
17
3008-027 Bearing |
3008-027 |
US $135.40 |
||
|
18
|
18
3008-378 Bearing |
3008-378 |
US $99.59 |
||
| replacement | |||||
|
18
|
18
3008-298 BearingCrankshaft |
3008-298 |
US $117.14 |
||
|
19
|
19
3008-029 Bearing |
3008-029 |
US $75.05 |
||
|
20
|
20
3004-372 Screw |
3004-372 |
US $9.45 |
||
| replacement | |||||
|
20
|
20
3007-440 ScrewMachine |
3007-440 |
US $1.89 |
||
|
21
|
21
3008-072 SpacerCrankshaft |
3008-072 |
US $233.01 |
||
|
22
|
22
3008-031 SealRight; oil |
3008-031 |
US $76.22 |
||
|
23
|
23
3008-032 SealLeft; oil |
3008-032 |
US $68.49 |
||
|
24
|
24
3008-033 SealCenter; oil |
3008-033 |
US $74.74 |
||
|
25
|
25
3003-216 C-ring |
3003-216 |
US $41.75 |
||
