	Description	OEM Part #	Price
1	1 0673-418 Grip Right; handlebar	0673-418	US $19.20
	replacement
1	1 0405-039 Grip Handlebar	0405-039	US $20.67
2	2 0773-018 Throttle assembly Inc. 34, 37-41	0773-018	US $53.56
3	3 0605-234 Lever	0605-234	—
4	4 0605-236 Pin	0605-236	—
5	5 0605-235 Housing Throttle	0605-235	US $35.66
6	6 0624-099 Washer	0624-099	—
7	7 0624-113 C-clip	0624-113	US $5.22
8	8 0624-091 Screw Machine	0624-091	US $5.20
9	9 0624-056 Screw Cap	0624-056	US $10.80
10	10 0673-282 Cap Steering adjuster	0673-282	US $19.20
11	11 0673-317 Handlebar	0673-317	—
	replacement
11	11 0673-992 Handlebar	0673-992	US $154.49
12	12 0673-477 Cap Grip; end	0673-477	US $3.30
13	13 0624-250 Nut Starter relay	0624-250	US $3.52
14	14 0123-788 Tie Cable	0123-788	US $2.90
15	15 0609-203 Tether Inc. 16-17; switch ass'y	0609-203	US $295.35
16	16 0624-148 Screw	0624-148	—
17	17 0609-176 Tether strap	0609-176	US $56.02
	replacement
17	17 0609-310 Cord Tether	0609-310	US $56.02
18	18 0673-419 Grip Left; handlebar	0673-419	US $19.20
	replacement
18	18 0405-039 Grip Handlebar	0405-039	US $20.67
19	19 0687-054 Cable Throttle	0687-054	US $222.74
20	20 0673-587 Plug Grip; compression	0673-587	US $7.42
21	21 0624-233 Nut Flange	0624-233	US $4.40
22	22 0624-104 C-clip	0624-104	US $1.61
23	23 0624-303 Washer Serrated	0624-303	US $2.40
24	24 0624-254 Screw Machine	0624-254	US $2.50
25	25 0773-284 Handlebar pad	0773-284	—
26	26 0605-244 Pad Front; handlebar	0605-244	US $55.63
27	27 0773-242 Cover Handlebar pad	0773-242	US $132.39
	replacement
27	27 0773-181 Cover Handlebar pad	0773-181	US $132.39
28	28 0605-253 Pad Rear; handlebar	0605-253	US $45.33

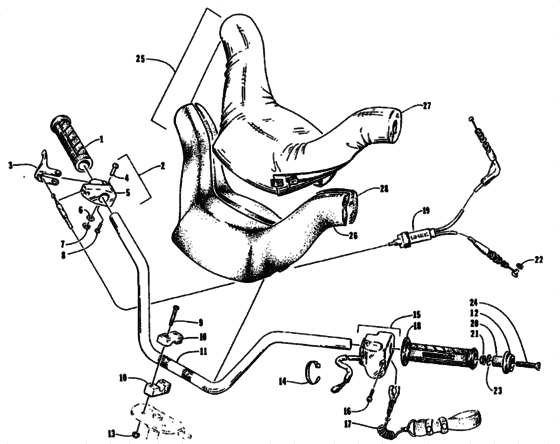

Handlebar assembly Diagram Arctic Cat MONTEGO General 10948679-696788

Handlebar assembly Diagram Arctic Cat MONTEGO General 10948679-696788
