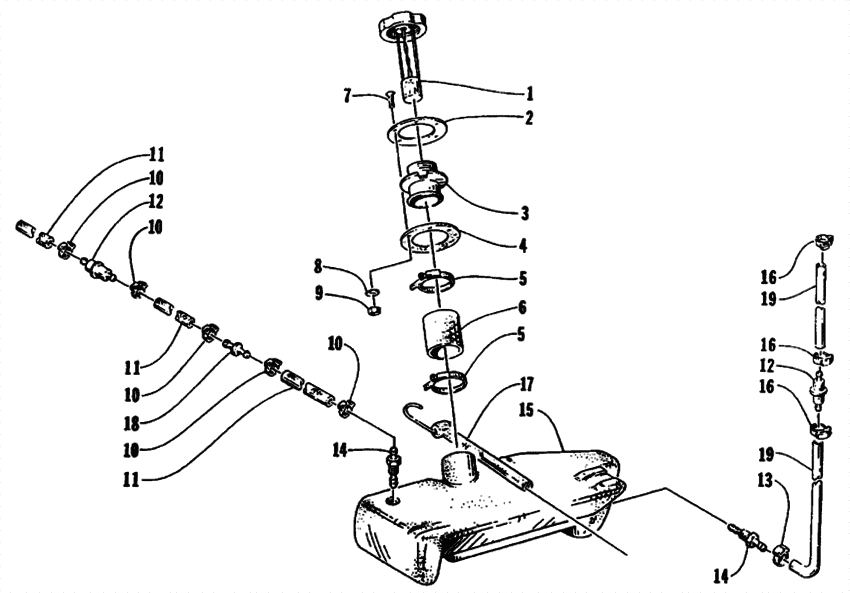

Oil Tank Assembly Diagram Arctic Cat MONTEGO
- Year
- 1995
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0670-464
Cap
|
0670-464 |
— | ||
|
2
|
2
0670-304 Ring |
0670-304 |
US $7.86 |
||
|
3
|
3
0670-270 Spacer |
0670-270 |
US $11.39 |
||
| replacement | |||||
|
3
|
3
0470-970 Neck,fill-remote |
0470-970 |
US $12.62 |
||
|
4
|
4
0670-271
Seal
|
0670-271 |
— | ||
|
5
|
5
0624-037
Clamp
|
0624-037 |
— | ||
|
6
|
6
0610-096 Hose |
0610-096 |
US $38.98 |
||
| replacement | |||||
|
6
|
6
0710-109 HoseFiller |
0710-109 |
US $38.98 |
||
|
7
|
7
0624-031 Screw |
0624-031 |
US $4.71 |
||
|
8
|
8
0624-004 Washer |
0624-004 |
US $2.50 |
||
|
9
|
9
0624-005 NutLock |
0624-005 |
US $8.64 |
||
|
10
|
10
0624-120 ClampHose |
0624-120 |
US $12.50 |
||
|
11
|
11
0610-107 Hose25' |
0610-107 |
US $205.61 |
||
|
12
|
12
0510-335 FilterIn-line |
0510-335 |
US $42.74 |
||
| replacement | |||||
|
12
|
12
0470-988 Filter,fuel-inline |
0470-988 |
US $39.08 |
||
|
13
|
13
0623-063 ClampGasline |
0623-063 |
US $29.45 |
||
|
14
|
14
0670-042 OutletTank |
0670-042 |
from US $16 |
||
|
15
|
15
0670-446 TankOil |
0670-446 |
US $97.14 |
||
|
16
|
16
0623-502 ClampHose |
0623-502 |
US $1.76 |
||
|
17
|
17
0773-383 Tiedown |
0773-383 |
US $13.25 |
||
|
18
|
18
0610-059 Check valveCoolant |
0610-059 |
US $23.22 |
||
|
19
|
19
0710-022 HoseOil line |
0710-022 |
US $85.56 |
||
| replacement | |||||
|
19
|
19
0610-008 Hose25'; gas line |
0610-008 |
US $98.94 |
||
