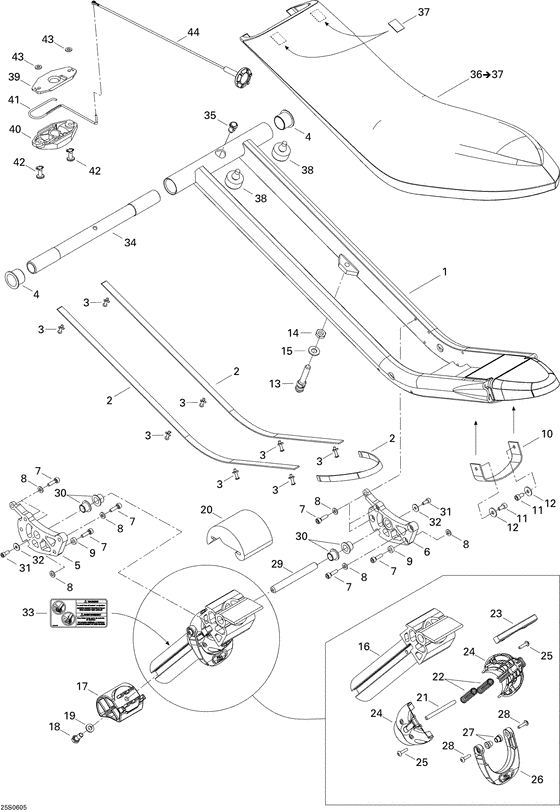

09- seat Diagram Bombardier 3D
- Year
- 2006
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
269001116
Structure siege noir *black seat
|
269001116 |
— | ||
|
2
|
2
293740012
Velcro *velcro
|
293740012 |
— | ||
|
3
|
3
293150037 Rivet avdel *rivet-avdel 3/16 |
293150037 |
US $5.40 |
||
|
4
|
4
293900055 Douille *bushing |
293900055 |
US $14.25 |
||
|
5
|
5
269001161
Pivot siege *seat pivot
|
269001161 |
— | ||
|
6
|
6
269001162
Pivot siege *seat pivot
|
269001162 |
— | ||
|
7
|
7
205562060 Screw-socket din.912a2 s.grip |
205562060 |
US $17.75 |
||
|
8
|
8
234061600 Washer-flat din.125a-a2 |
234061600 |
US $11.50 |
||
|
9
|
9
269501172 Entretoise *spacer |
269501172 |
US $55.85 |
||
|
10
|
10
269001003
Courroie *belt
|
269001003 |
— | ||
|
11
|
11
205561260 Screw-socket din.912a2 s.grip |
205561260 |
US $19.60 |
||
|
12
|
12
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10.50 |
||
|
13
|
13
291000691 Ergot de siege *stud-seat |
291000691 |
US $44.83 |
||
|
14
|
14
232100600 Nut-jam hexagonal din.439b-a2 |
232100600 |
US $10.65 |
||
|
15
|
15
234001600 Washer-flat din.125a-a2 |
234001600 |
US $5.35 |
||
|
16
|
16
269001119
Poteau noir *black post
|
269001119 |
— | ||
|
17
|
17
269001005 Rotule *ball joint |
269001005 |
US $26.49 |
||
|
18
|
18
207382060 Screw-hex.cap din.933a2 s.grip |
207382060 |
US $19.60 |
||
|
19
|
19
234081600 Washer-flat din.125a-a2 |
234081600 |
US $5.30 |
||
|
20
|
20
269001118 Mousse poteau *post foam |
269001118 |
US $14.25 |
||
|
21
|
21
269001122
Tige de blocage*blocing pine
|
269001122 |
— | ||
|
22
|
22
269001009
Ressort *spring
|
269001009 |
— | ||
|
23
|
23
269001004
Barrure *lock
|
269001004 |
— | ||
|
24
|
24
269001008
Demi loquet *half lock
|
269001008 |
— | ||
|
25
|
25
250000193 Screw-plastite allen button head #12 |
250000193 |
US $7 |
||
|
26
|
26
269001076
Levier *lever
|
269001076 |
— | ||
|
27
|
27
269001077 Bague de levier*lever bushing |
269001077 |
US $14.25 |
||
|
28
|
28
250000193 Screw-plastite allen button head #12 |
250000193 |
US $7 |
||
|
29
|
29
269001305
Axe poteau *post axe
|
269001305 |
— | ||
|
30
|
30
293900001 Douille venturi*bushing-ventur |
293900001 |
US $35.45 |
||
|
31
|
31
205051260
Screw-socket hd.din.912a2
|
205051260 |
— | ||
|
32
|
32
234052600 Washer-flat din.9021b-a2 |
234052600 |
from US $1.32 |
||
|
33
|
33
219902450
Etiquette avert*runnab label
|
219902450 |
— | ||
|
34
|
34
269001252
Axe siege *seat axe
|
269001252 |
— | ||
|
35
|
35
293150089
Plastique rivet tuflok
|
293150089 |
— | ||
| replacement | |||||
|
35
|
35
293150230 TUFLOK PLASTIC RIVET |
293150230 |
US $1.96 |
||
|
36
|
36
269001307
Mousse siege *seat foam
Includes 36 to 37; |
269001307 |
— | ||
|
37
|
37
293740015
Velcro *velcro
|
293740015 |
— | ||
|
38
|
38
708000006 Butee caout. *stopper-rubber |
708000006 |
US $10.47 |
||
|
39
|
39
204070036 Couv.loquet *cover-latch |
204070036 |
US $20.96 |
||
|
40
|
40
269001213
Base loquet *base-latch
|
269001213 |
— | ||
|
41
|
41
269700090 Ressort loquet *spring-latch |
269700090 |
US $48.87 |
||
|
42
|
42
293150074 Rivet-pop 1/4 *rivet-pop 1/4 |
293150074 |
US $8.44 |
||
|
43
|
43
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10.50 |
||
|
44
|
44
269001079
Tige loquet *pine
|
269001079 |
— | ||
