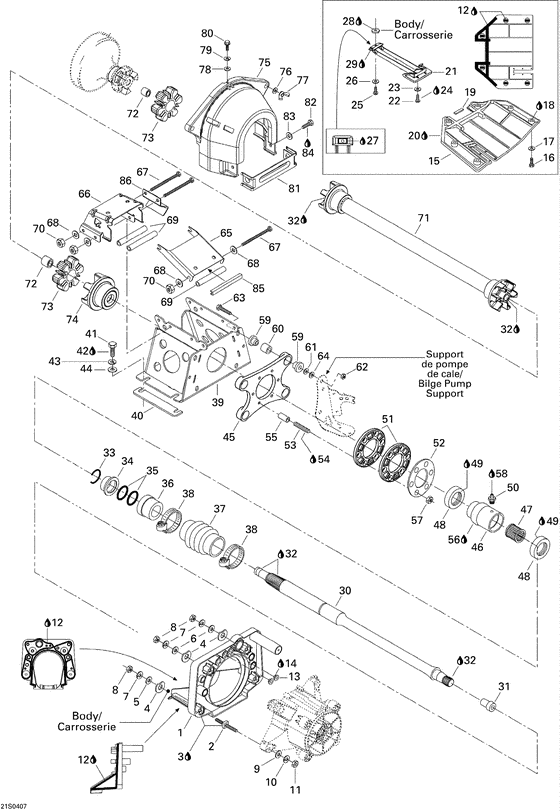

05- propulsion Diagram Bombardier 3D
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
271001439
Support pompe *pump support
|
271001439 |
— | ||
|
2
|
2
250300010
Goujon carre *stud-square
|
250300010 |
— | ||
| replacement | |||||
|
2
|
2
250300022 Goujon carre *stud-square |
250300022 |
US $21.42 |
||
|
3
|
3
293800038 Loctite 518 *loctite-518 |
293800038 |
US $51.97 |
||
|
4
|
4
272000053 Cale epaisseur *shim |
272000053 |
US $54.75 |
||
|
5
|
5
234002600 Washer-flat din.9021b-a2 |
234002600 |
US $14.35 |
||
|
6
|
6
234002600 Washer-flat din.9021b-a2 |
234002600 |
US $14.35 |
||
|
7
|
7
234101601 Washer-lock helical din.127b-a2 |
234101601 |
US $7.40 |
||
|
8
|
8
232001600 Nut-hexagonal din.934a2 |
232001600 |
US $10.65 |
||
|
9
|
9
234002600 Washer-flat din.9021b-a2 |
234002600 |
US $14.35 |
||
|
10
|
10
234101601 Washer-lock helical din.127b-a2 |
234101601 |
US $7.40 |
||
|
11
|
11
232001600 Nut-hexagonal din.934a2 |
232001600 |
US $10.65 |
||
|
12
|
12
293800066 Scellant 5900 *sealant-5900 |
293800066 |
US $65.25 |
||
|
13
|
13
293250084 Joint torique *o-ring |
293250084 |
US $9.15 |
||
|
14
|
14
293800038 Loctite 518 *loctite-518 |
293800038 |
US $51.97 |
||
|
15
|
15
271001453 Plaque promenad*plate-riding |
271001453 |
US $258.01 |
||
|
16
|
16
207383060 Screw-hex.cap din.933a2 s.grip |
207383060 |
US $24.50 |
||
|
17
|
17
234081600 Washer-flat din.125a-a2 |
234081600 |
US $7.10 |
||
|
18
|
18
293800086
Scell.silicone *seal-silicone
|
293800086 |
— | ||
|
19
|
19
293200003 Joint etanche *seal-tray |
293200003 |
US $37.20 |
||
|
20
|
20
293800066 Scellant 5900 *sealant-5900 |
293800066 |
US $65.25 |
||
|
21
|
21
271001455
Grille pompe *grate-pump
|
271001455 |
— | ||
| replacement | |||||
|
21
|
21
271001525
Grille pompe *grate-pump
|
271001525 |
— | ||
|
22
|
22
207161660 Screw-hex.cap din.933a2 |
207161660 |
US $9.50 |
||
|
23
|
23
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
24
|
24
293800005 Loctite 271 *loctite-271 |
293800005 |
US $31.18 |
||
|
25
|
25
207383060 Screw-hex.cap din.933a2 s.grip |
207383060 |
US $24.50 |
||
|
26
|
26
234081600 Washer-flat din.125a-a2 |
234081600 |
US $7.10 |
||
|
27
|
27
293800066 Scellant 5900 *sealant-5900 |
293800066 |
US $65.25 |
||
|
28
|
28
293800086
Scell.silicone *seal-silicone
|
293800086 |
— | ||
|
29
|
29
293800066 Scellant 5900 *sealant-5900 |
293800066 |
US $65.25 |
||
|
30
|
30
272000150
Arbre transm. *shaft-drive
|
272000150 |
— | ||
|
31
|
31
272000019 Bouchon *plug |
272000019 |
US $40.65 |
||
|
32
|
32
293550010 Graisse synth. *grease-synth. |
293550010 |
US $33.61 |
||
|
33
|
33
272000135 Pince en "c" *clip "c |
272000135 |
US $91.30 |
||
|
34
|
34
272000064 Bague supp.flot*support ring |
272000064 |
US $73.12 |
||
|
35
|
35
293300032 Joint torique *o-ring |
293300032 |
US $39 |
||
|
36
|
36
272000770 Bague carbone *carbon ring |
272000770 |
US $51.66 |
||
|
37
|
37
272000184
Soufflet *bellow
|
272000184 |
— | ||
|
38
|
38
293650075 Bride serrage *clamp-norma |
293650075 |
US $55.10 |
||
|
39
|
39
271001457 Supp.arbre *shaft supp |
271001457 |
US $133.57 |
||
|
40
|
40
272000166
Cale epaisseur *shim
|
272000166 |
— | ||
|
41
|
41
207183060 Screw-hex.cap din.933a2 |
207183060 |
US $10.20 |
||
|
42
|
42
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
43
|
43
234181601 Washer-lock helical din.127b-a2 |
234181601 |
US $7.10 |
||
|
44
|
44
234081600 Washer-flat din.125a-a2 |
234081600 |
US $7.10 |
||
|
46
|
46
272000012400
Support joint *support-joint
|
272000012400 |
— | ||
|
47
|
47
293350007
Roulement aigui*needle bearing
|
293350007 |
— | ||
|
48
|
48
293200012 Anneau etanche *double lip seal |
293200012 |
US $79.12 |
||
|
49
|
49
293800038 Loctite 518 *loctite-518 |
293800038 |
US $51.97 |
||
|
50
|
50
293550008 Graisseur *fitting-grease |
293550008 |
US $45.65 |
||
|
51
|
51
272000049400 Rondelle align.*washer-align. |
272000049400 |
US $46.89 |
||
|
52
|
52
272000051
Rondelle fixat.*washer-fixat.
|
272000051 |
— | ||
|
53
|
53
211300016 Stud-m6 x 30 |
211300016 |
US $23.45 |
||
|
54
|
54
293800005 Loctite 271 *loctite-271 |
293800005 |
US $31.18 |
||
|
55
|
55
271001319 Entretoise *spacer |
271001319 |
US $9.13 |
||
|
56
|
56
293550010 Graisse synth. *grease-synth. |
293550010 |
US $33.61 |
||
|
57
|
57
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
58
|
58
293550010 Graisse synth. *grease-synth. |
293550010 |
US $33.61 |
||
|
59
|
59
293830031 Douille caout. *bushing-rubber |
293830031 |
US $40.65 |
||
|
60
|
60
274000114 Douille *bushing |
274000114 |
US $10.03 |
||
|
61
|
61
234081600 Washer-flat din.125a-a2 |
234081600 |
US $7.10 |
||
|
62
|
62
232581600 Nut-stop elastic din.985a2 |
232581600 |
from US $2.39 |
||
|
63
|
63
207084560 Screw-hex.cap din.931a2 |
207084560 |
US $21.75 |
||
|
64
|
64
234082600 Washer-flat din.9021b-a2 |
234082600 |
US $31.10 |
||
|
65
|
65
271001458
Garde arbre *shaft guard
|
271001458 |
— | ||
|
66
|
66
291002030
Support carros *deck support
|
291002030 |
— | ||
|
67
|
67
230062060 Screw-hex.cap din.931a2 |
230062060 |
US $10.69 |
||
|
68
|
68
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
69
|
69
291000757 Entretoise *spacer |
291000757 |
US $21.39 |
||
|
70
|
70
232561200 Nut-stop elastic din.985 |
232561200 |
US $27.35 |
||
|
71
|
71
272000154 Arbre trans.ass*shaft-trans.as |
272000154 |
US $292.71 |
||
|
72
|
72
293900016 Douille press. *bushing-snap |
293900016 |
US $13.21 |
||
|
73
|
73
293830067 Adap.caout. *adaptor-rubber |
293830067 |
US $18.33 |
||
|
74
|
74
272000158 Coupleur ass. *coupler-assy. |
272000158 |
US $128.49 |
||
|
75
|
75
271001440
Garde volant *guard-flywheel
|
271001440 |
— | ||
| replacement | |||||
|
75
|
75
271001541 Garde volant *guard-flywheel |
271001541 |
US $37.71 |
||
|
76
|
76
234082600 Washer-flat din.9021b-a2 |
234082600 |
US $31.10 |
||
|
77
|
77
232681100 Nut-wing nylon din.315 |
232681100 |
US $14.35 |
||
|
78
|
78
234051600 Washer-flat din.125a-a2 |
234051600 |
US $10 |
||
|
79
|
79
234151601 Washer-lock helical din.127b-a2 |
234151601 |
US $9.80 |
||
|
80
|
80
243041660 Screw-plastite hex.unsl |
243041660 |
US $19.45 |
||
|
81
|
81
291001228 Garde av.inf. *guard front lower |
291001228 |
US $18.85 |
||
|
82
|
82
207161660 Screw-hex.cap din.933a2 |
207161660 |
US $9.50 |
||
|
83
|
83
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
84
|
84
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
85
|
85
414506600 Moulure pa-br. *trim-w shield |
414506600 |
US $99 |
||
|
86
|
86
291002146
Support carros *deck support
|
291002146 |
— | ||
