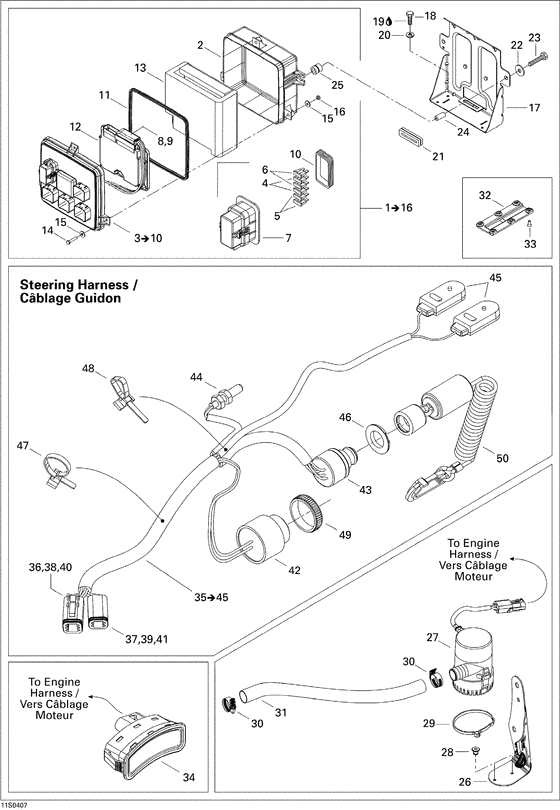

10- electrical accessories Diagram Bombardier 3D
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
278000938
Base boite elec*base-box elect
|
278000938 |
— | ||
|
3
|
3
278001981 Module electron*electronique moduleIncludes 3 to 10; |
278001981 |
US $1,617.70 |
||
|
4
|
4
278000344 Fusible 5 amp. *fuse-5 amp. |
278000344 |
US $21.15 |
||
|
5
|
5
278001197 Fusible 10 amp.*fuse-10 amp. |
278001197 |
US $14.20 |
||
|
6
|
6
278000343 Fusible 15 amp.*fuse-15 amp. |
278000343 |
US $21.15 |
||
|
7
|
7
278001618
Couv.fusible *cover-fuse
|
278001618 |
— | ||
|
8
|
8
278000998 Cosse femelle *terminal-femelle |
278000998 |
US $58.70 |
||
|
9
|
9
278000999 Joint de fil *seal-wire |
278000999 |
US $21.15 |
||
|
10
|
10
278001070 Joint couvercle*seal-cover |
278001070 |
US $16.29 |
||
|
11
|
11
293250063
Joint etanche *gasket
|
293250063 |
— | ||
|
12
|
12
278001924 Module electron*electronique module |
278001924 |
US $1,597.30 |
||
|
13
|
13
278001974
Mousse *foam
|
278001974 |
— | ||
|
14
|
14
207063060 Screw-hex.cap din.931a2 |
207063060 |
US $12.15 |
||
|
15
|
15
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
16
|
16
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
17
|
17
278001949
Support boite *box support
|
278001949 |
— | ||
|
18
|
18
211000023 Screw-plastite hex.wr.hd.unsl |
211000023 |
US $23.10 |
||
|
19
|
19
293800005 Loctite 271 *loctite-271 |
293800005 |
US $31.18 |
||
|
20
|
20
211200043 Washer-lock imperial |
211200043 |
US $10 |
||
|
21
|
21
278001259
Isolateur inf. *insulator
|
278001259 |
— | ||
|
22
|
22
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
23
|
23
207363060 Screw-hex.cap din.933a2 s.grip |
207363060 |
US $58.30 |
||
|
24
|
24
272000074 Entretoise *spacer |
272000074 |
US $24.38 |
||
|
25
|
25
278001260 Isolateur sup. *insulator |
278001260 |
US $10.17 |
||
|
26
|
26
271000897 Support pompe *support-bilge |
271000897 |
US $20.37 |
||
|
27
|
27
278002020 Pompe cale *pump-bilge |
278002020 |
US $92.77 |
||
|
28
|
28
293150059 Rivet-pop 5/32 *rivet-pop 5/32 |
293150059 |
US $18.75 |
||
|
29
|
29
293750008 Tie rap 350mm *tie-rap 350mm |
293750008 |
US $13.40 |
||
|
30
|
30
293650172 Bride serrage *hose clamp |
293650172 |
US $20.50 |
||
|
31
|
31
291001206 Boyau bilgeflex*hose-bilgeflex |
291001206 |
US $66.06 |
||
|
32
|
32
291002035
Obturateur sabo*cap-shoe ride
|
291002035 |
— | ||
|
33
|
33
250000020
Screw-ctsk.ov.hd.ph.din.966a-a2
|
250000020 |
— | ||
|
34
|
34
278001903
Indicateur muti*multif. indica
|
278001903 |
— | ||
|
35
|
35
278001901
Cablage guidon *steering harness
Includes 35 to 45; |
278001901 |
— | ||
|
36
|
36
278000631 Cosse male *terminal-male |
278000631 |
US $58.70 |
||
|
37
|
37
278000632 Cosse femelle *terminal-femal |
278000632 |
US $28.40 |
||
|
38
|
38
278000635 Bloc 4 circ.fem*housing-tab |
278000635 |
US $16.92 |
||
|
39
|
39
278000736 Bloc 6 circ.mal*housing-tab |
278000736 |
US $25.19 |
||
|
40
|
40
278000636 Cale 4 circ.fem*wedge-4 ways f |
278000636 |
US $58.70 |
||
|
41
|
41
278000737 Cale 6 circ.mal*wedge-6 ways m |
278000737 |
US $19.45 |
||
|
42
|
42
278001586
Avertisseur *buzzer
|
278001586 |
— | ||
|
43
|
43
278001944 Inter.urgence *safety switch |
278001944 |
US $98.89 |
||
|
44
|
44
278002029
Capteur otas *otas pos. sw.
|
278002029 |
— | ||
| replacement | |||||
|
44
|
44
278002068 Capteur otas *otas pos. sw. |
278002068 |
US $81.57 |
||
|
45
|
45
278001933 Interrupteur *switch-ass y |
278001933 |
US $68.29 |
||
|
46
|
46
278000508
Ecrou securite *nut-saf.switch
|
278000508 |
— | ||
|
47
|
47
293750009 Tie rap 173mm *tie-rap 173mm |
293750009 |
US $6.70 |
||
|
48
|
48
293750009 Tie rap 173mm *tie-rap 173mm |
293750009 |
US $6.70 |
||
|
49
|
49
414805101 Ecrou plastique*nut-plastic. |
414805101 |
US $3.83 |
||
|
50
|
50
278001543
Cordon securite*lanyard-safety
|
278001543 |
— | ||
| replacement | |||||
|
50
|
50
278002199 Cordon securite*lanyard-safety |
278002199 |
US $93.60 |
||
