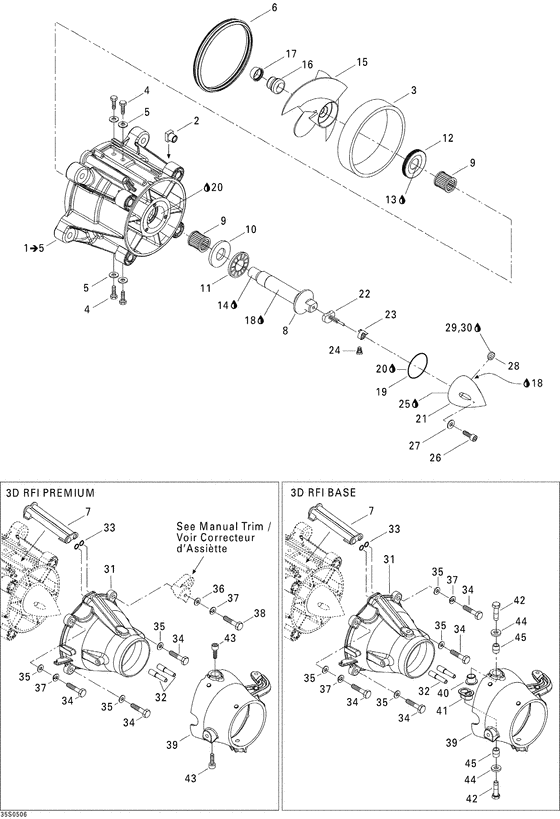

05- pump Diagram Bombardier 3D
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
271001381
Carter helice *housing-impel.
Includes 1 to 5; |
271001381 |
— | ||
| replacement | |||||
|
1
|
1
267000268 Carter helice *housing-impel.Includes 1 to 5; |
267000268 |
US $390.63 |
||
|
2
|
2
211100033 Nut-square |
211100033 |
US $97.35 |
||
|
3
|
3
271000653 Bague d usure *wear ring |
271000653 |
US $64.33 |
||
|
4
|
4
250000040 Screw-plastite hexagonale #10x3/8 |
250000040 |
US $13.30 |
||
|
5
|
5
234051600 Washer-flat din.125a-a2 |
234051600 |
US $10 |
||
|
6
|
6
293200087 Anneau neoprene*neoprene seal |
293200087 |
US $12.55 |
||
|
7
|
7
271000785 Sortie d eau *outlet-water |
271000785 |
US $4.90 |
||
|
8
|
8
271000965 Arbre helice *shaft-impeller |
271000965 |
US $128.71 |
||
|
9
|
9
293350017 Roulement aigui*needle bearing |
293350017 |
US $31.18 |
||
|
10
|
10
293350020 Rondelle appuie*thrust washer |
293350020 |
US $56.55 |
||
|
11
|
11
293350022 Palier a butee *thrust-bearing |
293350022 |
US $51.66 |
||
|
12
|
12
267000094 Anneau etanche *oil seal |
267000094 |
from US $24.34 |
||
|
13
|
13
293800038 Loctite 518 *loctite-518 |
293800038 |
US $51.97 |
||
|
14
|
14
293800070 Loct.anti grip.*loct-antiseize |
293800070 |
US $40.78 |
||
|
15
|
15
267000201
Helice *impeller
|
267000201 |
— | ||
|
16
|
16
271000516 Prot.helice *boot-impeller |
271000516 |
US $20.80 |
||
|
17
|
17
271000517 Bague *ring |
271000517 |
US $104 |
||
|
18
|
18
293600011 Huile de pompe *oil-pump |
293600011 |
US $256.68 |
||
|
19
|
19
293300011 Joint torique *o-ring |
293300011 |
US $48.95 |
||
|
20
|
20
293550032
Graisse asalco *ball bearing grease
|
293550032 |
— | ||
|
21
|
21
271001250
Couvercle turb.*cover-impeller
|
271001250 |
— | ||
| replacement | |||||
|
21
|
21
267000267 Couvercle turb.*cover-impeller |
267000267 |
US $21.39 |
||
|
22
|
22
271001124
Poussoir ass. *pusher-ass y
|
271001124 |
— | ||
|
23
|
23
271001107
Glissoir *slider
|
271001107 |
— | ||
|
24
|
24
271001108 Ressort *spring |
271001108 |
US $40.65 |
||
|
25
|
25
293550032
Graisse asalco *ball bearing grease
|
293550032 |
— | ||
|
26
|
26
205562560 Screw-socket din.912a2 s.grip |
205562560 |
from US $3.67 |
||
|
27
|
27
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
28
|
28
211500001 Plug-pipe socket hd sae-j-531 |
211500001 |
US $43.50 |
||
|
29
|
29
293800013 Scellant tuyau *sealant-pipe |
293800013 |
US $106.05 |
||
|
30
|
30
293800041 Appret loctite *primer-loctite |
293800041 |
US $47.91 |
||
|
31
|
31
267000187 Venturi noir *venturi-blackPremium; |
267000187 |
US $195.81 |
||
|
31
|
31
267000189
Venturi noir *venturi
Base; |
267000189 |
— | ||
|
32
|
32
271001133 Tube de siphon *tube-siphon |
271001133 |
US $96.20 |
||
|
33
|
33
293300013 Joint torique *o-ring |
293300013 |
US $100 |
||
|
34
|
34
207285060 Screw-hex.cap din.931a2 s.gripPremium; |
207285060 |
US $27 |
||
|
34
|
34
207285060 Screw-hex.cap din.931a2 s.gripBase; |
207285060 |
US $27 |
||
|
35
|
35
234081600 Washer-flat din.125a-a2Base; |
234081600 |
US $7.10 |
||
|
35
|
35
234081600 Washer-flat din.125a-a2Premium; |
234081600 |
US $7.10 |
||
|
36
|
36
234082600 Washer-flat din.9021b-a2Premium; |
234082600 |
US $31.10 |
||
|
37
|
37
234181601 Washer-lock helical din.127b-a2 |
234181601 |
US $7.10 |
||
|
38
|
38
207286560 Screw-hex.cap din.931a2 s.gripPremium; |
207286560 |
US $3.15 |
||
|
39
|
39
267000081 Buse direc.noir*nozzle-blackPremium; |
267000081 |
US $157.05 |
||
|
39
|
39
267000183
Buse direction *steer. nozzle
Base; |
267000183 |
— | ||
|
40
|
40
293900001 Douille venturi*bushing-venturBase; |
293900001 |
US $48.35 |
||
|
41
|
41
293900010 Douille plast. *bushing-plast.Base; |
293900010 |
from US $14.69 |
||
|
42
|
42
207383060 Screw-hex.cap din.933a2 s.gripBase; |
207383060 |
US $24.50 |
||
|
43
|
43
211000127 Screw-socket din.912a2 s.gripPremium; |
211000127 |
US $26 |
||
|
44
|
44
293050001 Rondelle plate *flat washerBase; |
293050001 |
US $19.90 |
||
|
45
|
45
271000122
Manchon *sleeve
Base; |
271000122 |
— | ||
| replacement | |||||
|
45
|
45
271001816 SLEEVEBase; |
271001816 |
from US $22.92 |
||
