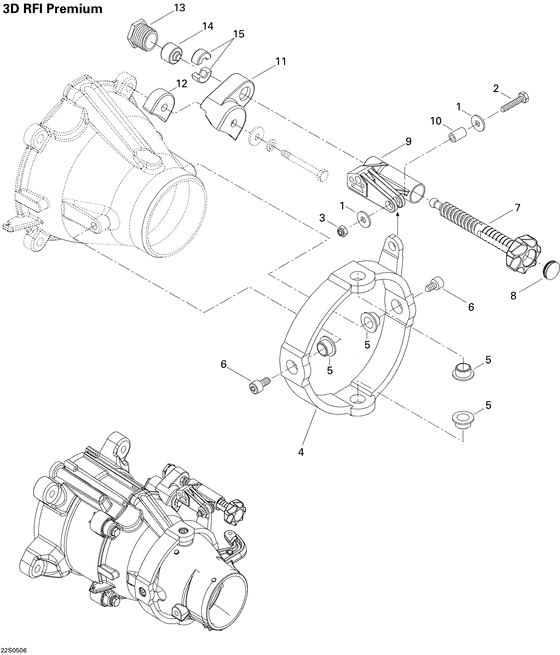

05- trim, manual Diagram Bombardier 3D
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
2
|
2
207063060 Screw-hex.cap din.931a2 |
207063060 |
US $12.15 |
||
|
3
|
3
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
4
|
4
266000013 Bague assiette *trimming ring |
266000013 |
US $51.97 |
||
|
5
|
5
293900007 Douille venturi*bushing-ventur |
293900007 |
US $13.32 |
||
|
6
|
6
211000127 Screw-socket din.912a2 s.grip |
211000127 |
US $26 |
||
|
7
|
7
266000012
Screw-adjuster
|
266000012 |
— | ||
|
8
|
8
277000203 Capuchon gaine *cap-grip black |
277000203 |
US $20.02 |
||
|
9
|
9
266000003
Pivot filete *pivot-threaded
|
266000003 |
— | ||
|
10
|
10
266000002 Entretoise *spacer |
266000002 |
US $7 |
||
|
11
|
11
266000005 Support *support |
266000005 |
US $12.19 |
||
|
12
|
12
266000004 Entretoise *spacer |
266000004 |
US $12.19 |
||
|
13
|
13
277000052
Barrure cable *lock-cable
|
277000052 |
— | ||
|
14
|
14
266000007 Rondelle * spacer |
266000007 |
US $50.85 |
||
|
15
|
15
272000071
Demi bague *half-ring
|
272000071 |
— |
