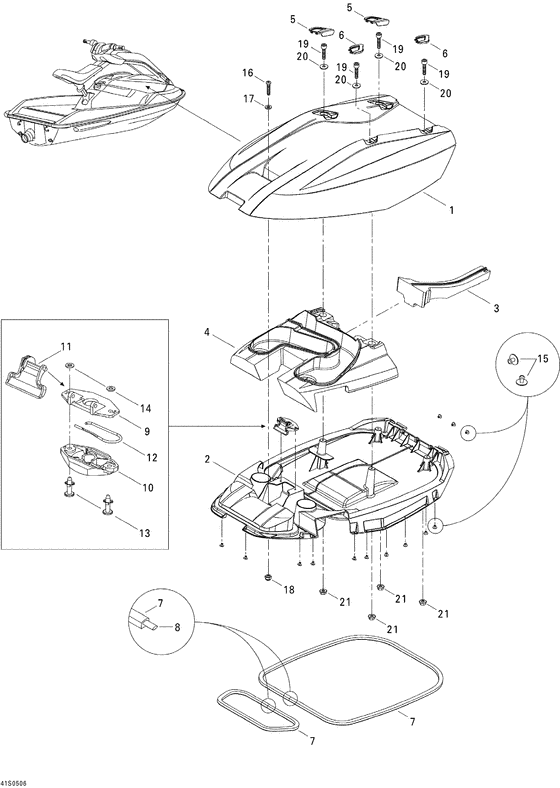

09- engine cover Diagram Bombardier 3D
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
269700083
Couv.moteur sup*cover-eng.top
|
269700083 |
— | ||
|
1
|
1
269700095 Couv.moteur sup*cover-eng.top |
269700095 |
US $200.91 |
||
|
2
|
2
269700084
Couv.moteur inf*cover-eng.low.
|
269700084 |
— | ||
|
3
|
3
269700093 Chicane v. av. *fr. v. baffle |
269700093 |
US $19.33 |
||
|
4
|
4
269700094 Chican. vent ar*vent baff rear |
269700094 |
US $53.01 |
||
|
5
|
5
269700088
Couvre-boul. ga*bolt cover lh
|
269700088 |
— | ||
|
5
|
5
269700096 Couvre-boul. ga*bolt cover lh |
269700096 |
US $15.27 |
||
|
6
|
6
269700089
Couvre-boul. dr*bolt cover rh
|
269700089 |
— | ||
|
6
|
6
269700097
Couvre-boul. dr*bolt cover rh
|
269700097 |
— | ||
|
7
|
7
293200093 Anneau neoprene*neoprene seal |
293200093 |
US $183.44 |
||
|
8
|
8
515175332 Gaine low temp.vinyl |
515175332 |
US $18.78 |
||
|
9
|
9
269700076
Couv.loquet *cover-latch
|
269700076 |
— | ||
|
10
|
10
269000015
Base loquet *base-latch
|
269000015 |
— | ||
| replacement | |||||
|
10
|
10
269700109 LATCH ASS Y |
269700109 |
US $26.30 |
||
|
11
|
11
269700077
Levier loquet *lever-latch
|
269700077 |
— | ||
|
12
|
12
269700017 Ressort loquet *spring-latch |
269700017 |
US $29.13 |
||
|
13
|
13
293150074 Rivet-pop 1/4 *rivet-pop 1/4 |
293150074 |
US $8.44 |
||
|
14
|
14
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
15
|
15
293150092 Rivet-pop 3/16 *rivet-pop 3/16 |
293150092 |
US $30.10 |
||
|
16
|
16
205452560 Screw-socket bn.hd.iso.7380a2 |
205452560 |
US $7.25 |
||
|
17
|
17
234052600 Washer-flat din.9021b-a2 |
234052600 |
from US $1.32 |
||
|
18
|
18
232551600 Nut-stop elastic din.985a2 |
232551600 |
US $7.40 |
||
|
19
|
19
250000076 Screw-socket din.912a2 s.grip |
250000076 |
US $19.60 |
||
|
20
|
20
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
21
|
21
233161600 Nut-flange hexagonal din.6923-a2 |
233161600 |
US $14.80 |
||
