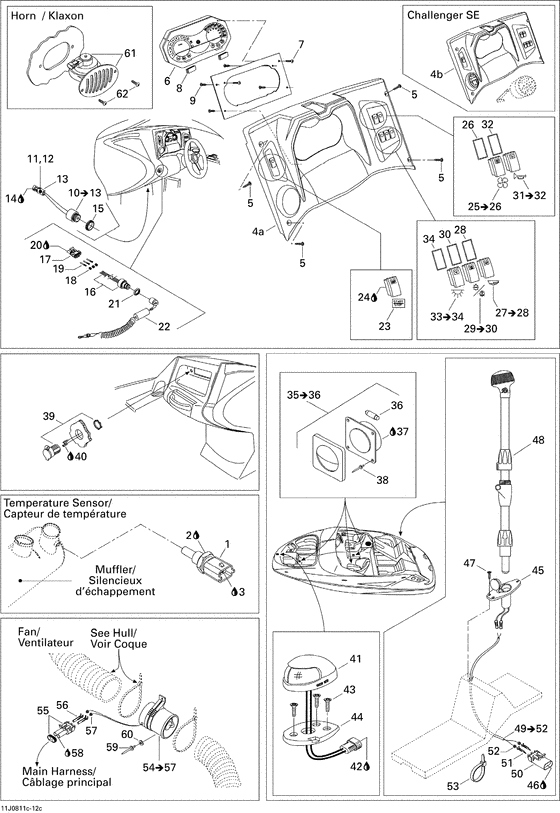

10- electrical accessories 3 Diagram Bombardier Challenger
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
278001016
Capteur temp. *sensor-liquid
|
278001016 |
— | ||
| replacement | |||||
|
1
|
1
278002895 TEMPERATURE SENSOR |
278002895 |
US $46.78 |
||
|
2
|
2
293800038 Loctite 518 *loctite-518 |
293800038 |
US $51.97 |
||
|
3
|
3
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
4a
|
4a
204471244
Facia *fascia
|
204471244 |
— | ||
|
5
|
5
209941960 Screw-tapp.ctsk.ov.hd.din.7983c-a2 |
209941960 |
US $0.97 |
||
|
6
|
6
204471236
Groupe cadran*cluster-gauge
|
204471236 |
— | ||
|
7
|
7
241142560 Screw-pt.hex.flange k40 x 25 |
241142560 |
from US $2.54 |
||
|
8
|
8
293830113 Moulure *trim |
293830113 |
US $20.94 |
||
|
9
|
9
211000180 Screw-plastite pan hd.ph |
211000180 |
US $19.45 |
||
|
10
|
10
204470913 Avertisseur ass*buzzer-assy.Includes 10 to 13; |
204470913 |
US $84.61 |
||
|
11
|
11
278000222 Cosse male *terminal-male |
278000222 |
US $21.15 |
||
|
12
|
12
278000218 Joint de fil *seal-wire |
278000218 |
US $58.70 |
||
|
13
|
13
278000217 Bloc 2 circ.fem*housing-tab(f) |
278000217 |
US $54.25 |
||
|
14
|
14
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
15
|
15
278000707
Ecrou avert. *nut-horn
|
278000707 |
— | ||
|
16
|
16
278001734
Inter.urgence *switch-safety
|
278001734 |
— | ||
|
17
|
17
278000273 Bloc 3 circ.mal*housing-tab |
278000273 |
US $10.85 |
||
|
18
|
18
278000218 Joint de fil *seal-wire |
278000218 |
US $58.70 |
||
|
19
|
19
278000223 Cosse femelle *terminal-femal |
278000223 |
US $21.15 |
||
|
20
|
20
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
21
|
21
278000508
Ecrou securite *nut-saf.switch
|
278000508 |
— | ||
|
22
|
22
204471206 Cordon securite*safety lanyard |
204471206 |
US $73.41 |
||
|
23
|
23
204471178
Interrupteur*switch-start/stop
|
204471178 |
— | ||
|
24
|
24
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
25
|
25
204470011
Inter.vent. *switch-fan
Includes 25 to 26; |
204470011 |
— | ||
|
26
|
26
204470132
Joint etanche *gasket
|
204470132 |
— | ||
|
27
|
27
204470099
Inter.bilge. *switch-bilge
Includes 27 to 28; |
204470099 |
— | ||
|
28
|
28
204470132
Joint etanche *gasket
|
204470132 |
— | ||
|
29
|
29
204470100
Inter.lumiere *switch-light
Includes 29 to 30; |
204470100 |
— | ||
|
30
|
30
204470132
Joint etanche *gasket
|
204470132 |
— | ||
|
31
|
31
204470101
Inter.klaxon *switch-horn
Includes 31 to 32; |
204470101 |
— | ||
|
32
|
32
204470132
Joint etanche *gasket
|
204470132 |
— | ||
|
33
|
33
204470102
Inter.courtois.*switch-courtesy
Includes 33 to 34; |
204470102 |
— | ||
|
34
|
34
204470132
Joint etanche *gasket
|
204470132 |
— | ||
|
35
|
35
204470026 Lum.courtoisie *light-courtesyIncludes 35 to 36; |
204470026 |
US $39.88 |
||
|
36
|
36
204470081 Ampoule *bulb |
204470081 |
US $13.21 |
||
|
37
|
37
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
38
|
38
293150032 Rivet-pop 1/8 *rivet-pop 1/8 |
293150032 |
US $19.50 |
||
|
39
|
39
204470907
R+ceptacle*receptacle-12 volt
|
204470907 |
— | ||
|
40
|
40
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
41
|
41
204470372
Phare avant *lamp-front/chrome
|
204470372 |
— | ||
|
42
|
42
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
43
|
43
209642560 Screw-tapp.pan hd.ph.din.7981c-a2 |
209642560 |
US $9.80 |
||
|
44
|
44
204470072 Supp.phare av. *supp-lamp front |
204470072 |
US $17.82 |
||
|
45
|
45
204470990
Base phare *base-lamp rear
|
204470990 |
— | ||
|
46
|
46
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
47
|
47
209943260 Screw-tapp.ctsk.ov.hd.din.7983c-a2 |
209943260 |
US $9.50 |
||
|
48
|
48
204470979 Pole phare *pole-lamp/rear |
204470979 |
US $122.37 |
||
|
49
|
49
204470980 Cablage-lumiere*harness-light/rearIncludes 49 to 52; |
204470980 |
US $36.72 |
||
|
50
|
50
278000217 Bloc 2 circ.fem*housing-tab(f) |
278000217 |
US $54.25 |
||
|
51
|
51
278000222 Cosse male *terminal-male |
278000222 |
US $21.15 |
||
|
52
|
52
278000218 Joint de fil *seal-wire |
278000218 |
US $58.70 |
||
|
53
|
53
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
54
|
54
204470108 Ventilateur ass*fan-assy.Includes 54 to 57; |
204470108 |
US $163.83 |
||
|
55
|
55
278000220 Bloc 2 circ.mal*housing-tab(m) |
278000220 |
US $15.74 |
||
|
56
|
56
278000223 Cosse femelle *terminal-femal |
278000223 |
US $21.15 |
||
|
57
|
57
278000218 Joint de fil *seal-wire |
278000218 |
US $58.70 |
||
|
58
|
58
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
59
|
59
293150011 Rivet-pop 3/16 *rivet-pop 3/16 |
293150011 |
US $9.40 |
||
|
60
|
60
234052600 Washer-flat din.9021b-a2 |
234052600 |
from US $1.32 |
||
|
61
|
61
204470801
Klaxon *horn
|
204470801 |
— | ||
|
62
|
62
209943260 Screw-tapp.ctsk.ov.hd.din.7983c-a2 |
209943260 |
US $9.50 |
||
