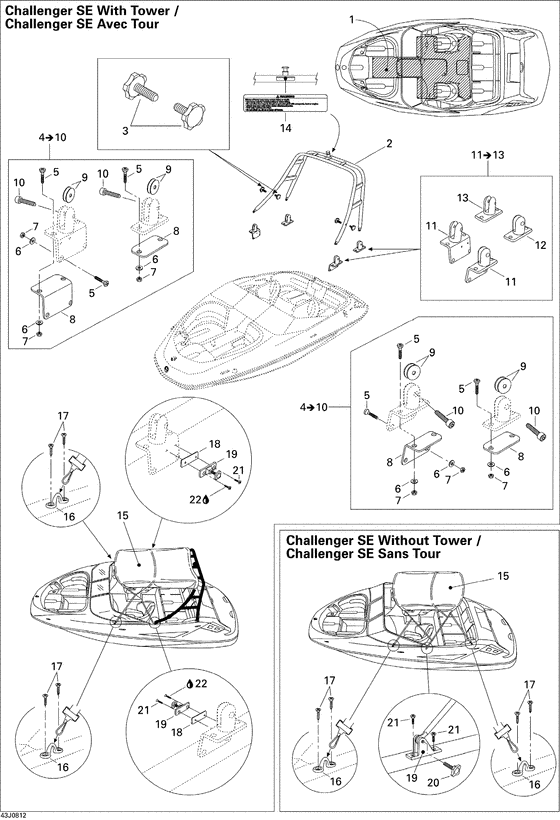

09- tower and bimini top Diagram Bombardier Challenger
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
204072382
Tapis-cockpit*carpet-cockpit
|
204072382 |
— | ||
|
2
|
2
204950091
Tour
|
204950091 |
— | ||
|
3
|
3
204072011
Bouton touch.*knob-soft touch
|
204072011 |
— | ||
|
4
|
4
204950086 Tower hardware kitIncludes 4 to 10; |
204950086 |
US $248.85 |
||
|
5
|
5
204100151 Screw-ctsk.ov.hd. 1/4-20 x 2 |
204100151 |
US $13.12 |
||
|
6
|
6
204071423 Rondelle *washer-fender |
204071423 |
US $10.47 |
||
|
7
|
7
212000005 Nut-stop elastic ms-17830 |
212000005 |
US $9.80 |
||
|
8
|
8
204130107 Joint etanche *gasket-rear |
204130107 |
US $34.65 |
||
|
9
|
9
204100158
Rondel.nylon *washer-nylon
|
204100158 |
— | ||
|
10
|
10
204100094
Screw-socket hd.3/8-16 x 1-1/2
|
204100094 |
— | ||
|
11
|
11
204950088
Kit-monture*kit-mounting/tower
Includes 11 to 13; |
204950088 |
— | ||
|
12
|
12
204072251 Support-tour*support-tower/rear |
204072251 |
US $438.57 |
||
|
13
|
13
204072252 Support-tour*support-tower/rear |
204072252 |
US $438.57 |
||
|
14
|
14
204901340 Etiquet.avert*label-warning/tower |
204901340 |
US $0.02 |
||
|
15
|
15
204950055 Toit bimini ass.*top-bimini assy.Models WithTower; |
204950055 |
US $1,107.70 |
||
|
15
|
15
204950050
Toit bimini ass.*top-bimini assy.
Models Without Tower; |
204950050 |
— | ||
|
16
|
16
204071845 Oeil courroie*eye-strap |
204071845 |
US $28.31 |
||
|
17
|
17
209943260 Screw-tapp.ctsk.ov.hd.din.7983c-a2 |
209943260 |
US $9.50 |
||
|
18
|
18
204072263 Entretoise*spacer-bimini mount |
204072263 |
US $18.33 |
||
|
19
|
19
204072264 Support-bimini*mount-biminiModels WithTower; |
204072264 |
US $37.71 |
||
|
19
|
19
204072822 Support-bimini*mount-biminiModels Without Tower; |
204072822 |
US $10.17 |
||
|
20
|
20
204072823 Bouton-bimini*knob-biminiModels Without Tower; |
204072823 |
US $8.13 |
||
|
21
|
21
208451660 Screw-ctsk.fl.hd.ph.din.965a-a2Models WithTower; |
208451660 |
US $9.80 |
||
|
21
|
21
208453060 Screw-ctsk.fl.hd.ph.din.965a-a2Models Without Tower; |
208453060 |
US $9.80 |
||
|
22
|
22
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
