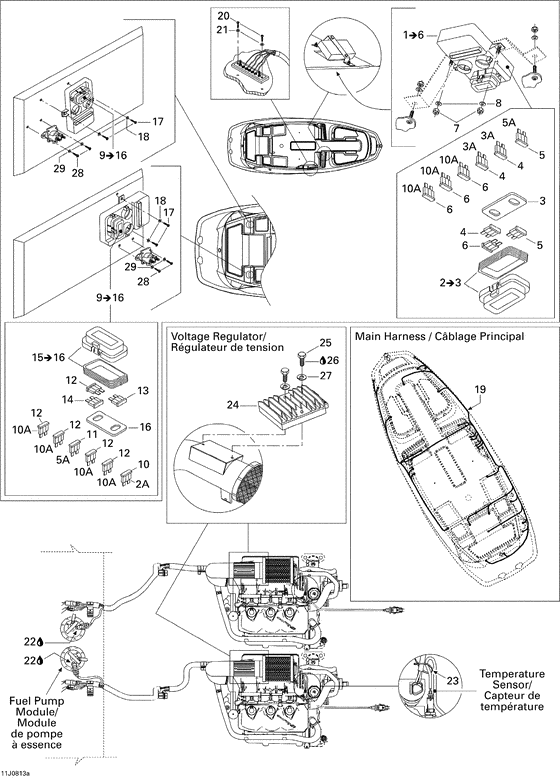

10- electrical accessories 1 Diagram Bombardier Challenger
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
204471262 Interface *interface-twin engineIncludes 1 to 6; |
204471262 |
US $1,092.40 |
||
|
2
|
2
278001618
Couv.fusible *cover-fuse
Includes 2 to 3; |
278001618 |
— | ||
|
3
|
3
278001719
Cous.fusible *foam-support
|
278001719 |
— | ||
|
4
|
4
278001196 Fusible 3 amp. *fuse-3 amp. |
278001196 |
US $10.30 |
||
|
5
|
5
278000344 Fusible 5 amp. *fuse-5 amp. |
278000344 |
US $19.45 |
||
|
6
|
6
278001197 Fusible 10 amp.*fuse-10 amp. |
278001197 |
US $10.30 |
||
|
7
|
7
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.50 |
||
|
8
|
8
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10.50 |
||
|
9
|
9
204470770
Bloc fusible*block-fuse
Includes 9 to 16; |
204470770 |
— | ||
|
10
|
10
278001442 Fusible 2 amp. *fuse-2 amp. |
278001442 |
US $8.38 |
||
|
11
|
11
278000344 Fusible 5 amp. *fuse-5 amp. |
278000344 |
US $19.45 |
||
|
12
|
12
278001197 Fusible 10 amp.*fuse-10 amp. |
278001197 |
US $10.30 |
||
|
13
|
13
409003900 Fusible 20a *fuse 20a |
409003900 |
US $15.55 |
||
|
14
|
14
410917200 Fusible 30 amp *fuse 30 amp |
410917200 |
US $19.45 |
||
|
15
|
15
278001618
Couv.fusible *cover-fuse
Includes 15 to 16; |
278001618 |
— | ||
|
16
|
16
278001719
Cous.fusible *foam-support
|
278001719 |
— | ||
|
17
|
17
204100203 Screw-tapp.pan hd.ph. #12 x 3/4 |
204100203 |
US $2.01 |
||
|
18
|
18
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10.50 |
||
|
19
|
19
204471231 Harnais-acces.*harness-accessory |
204471231 |
US $1,426.95 |
||
|
20
|
20
209641360 Screw-tapp.pan hd.ph.din.7981b-a2 |
209641360 |
US $19.60 |
||
|
21
|
21
234041600 Washer-flat din.125a-a2 |
234041600 |
US $9.80 |
||
|
22
|
22
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
23
|
23
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $19.60 |
||
|
24
|
24
710001103 Regu.tension *regulator-volt |
710001103 |
US $181.39 |
||
|
25
|
25
204100226 Screw-hex. 1/4"-20 x 1 |
204100226 |
US $2.01 |
||
|
26
|
26
293800060 Loctite 243 *loctite-243 |
293800060 |
US $32.28 |
||
|
27
|
27
211200025 Rondelle frein *washer-lock 1/4 |
211200025 |
US $9.80 |
||
|
28
|
28
204100073 Screw-pan hd.#10 x 5/8" ss |
204100073 |
US $1.96 |
||
|
29
|
29
204100059 Rondelle-plate *washer-flat |
204100059 |
US $9.80 |
