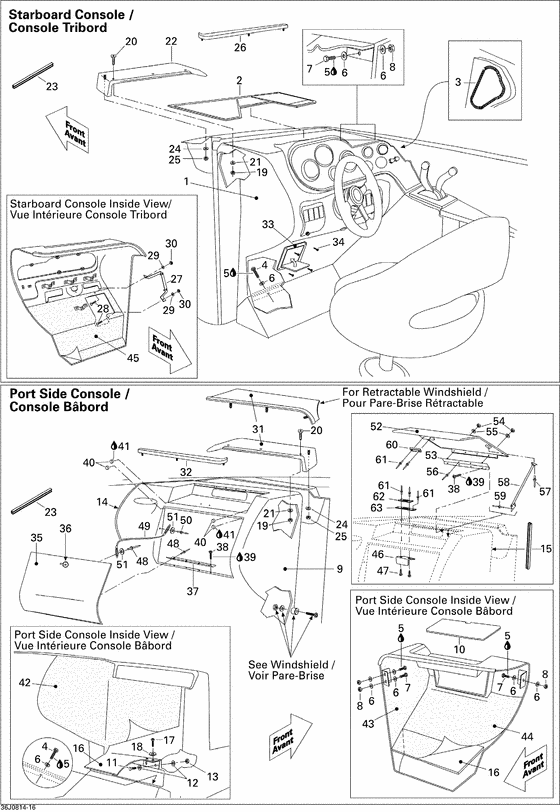

09- front console and glove box Diagram Bombardier Challenger
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
204073106
Console ass'y, starboard
Fixed Windshield; |
204073106 |
— | ||
|
1
|
1
204072495
Console ass'y, starboard
Retractable Windshield; |
204072495 |
— | ||
|
2
|
2
204073047 Tapis-tableau*mat-dashboard |
204073047 |
US $63.21 |
||
|
3
|
3
204550028 Enveloppe isol.*slit-conduit |
204550028 |
US $50.85 |
||
|
4
|
4
207163060 Screw-hex.cap din.933a2 |
207163060 |
US $19.20 |
||
|
5
|
5
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
6
|
6
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
7
|
7
207164560 Screw-hex.cap din.933a2 |
207164560 |
US $12.15 |
||
|
8
|
8
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
9
|
9
204072494 Console ass'y, port side |
204072494 |
US $873.10 |
||
|
10
|
10
204073048 Tapis-boite gants*mat-glovebox |
204073048 |
US $63.21 |
||
|
11
|
11
207163060 Screw-hex.cap din.933a2 |
207163060 |
US $19.20 |
||
|
12
|
12
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
13
|
13
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
14
|
14
204071878 Moulure blanc*j-trim/white |
204071878 |
US $94.41 |
||
|
15
|
15
204071878 Moulure blanc*j-trim/white |
204071878 |
US $94.41 |
||
|
16
|
16
204072499 Coff.boite gant*tray-glovebox |
204072499 |
US $48.93 |
||
|
17
|
17
204100049 Screw-tapp.ctsk.fl.hd.ph.#8 x 1 |
204100049 |
US $19.60 |
||
|
18
|
18
204100057 Rondelle-finit.*washer-finishing |
204100057 |
US $7.10 |
||
|
19
|
19
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
20
|
20
208563060 Screw-ctsk.ov.hd.ph.din.966a-a2 |
208563060 |
US $9.80 |
||
|
21
|
21
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
22
|
22
204073105
Console cap ass'y, starboard
Fixed Windshield; |
204073105 |
— | ||
|
22
|
22
204072689 Bouch.console*cap-console assy/stbd.Retractable Windshield; |
204072689 |
US $317.17 |
||
|
23
|
23
204072752 Moulure bord*trim-edge 7/16 |
204072752 |
US $163.74 |
||
|
24
|
24
211200019 Washer-flat 1/4 ss-316 |
211200019 |
US $9.80 |
||
|
25
|
25
212000005 Nut-stop elastic ms-17830 |
212000005 |
US $9.80 |
||
|
26
|
26
204073089
Couss.rempliss.*filler pad/console
|
204073089 |
— | ||
|
27
|
27
204072325
Support assy*bracket assy-interface
|
204072325 |
— | ||
|
28
|
28
208462060 Screw-ctsk.fl.hd.ph.din.965a-a2 |
208462060 |
US $14.60 |
||
|
29
|
29
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
30
|
30
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
31
|
31
204073102
Console cap ass'y, port side
Fixed Windshield; |
204073102 |
— | ||
|
31
|
31
204072688 Bouch.console*cap-console assy/portRetractable Windshield; |
204072688 |
US $317.17 |
||
|
32
|
32
204073088
Couss.rempliss.*filler pad/console
|
204073088 |
— | ||
|
33
|
33
204072447 Porte d acces*door-access/fuse block |
204072447 |
US $132.57 |
||
|
34
|
34
209941960 Screw-tapp.ctsk.ov.hd.din.7983c-a2 |
209941960 |
US $0.97 |
||
|
35
|
35
204073154
Port.boite gant*door-glovebox/lower
Navy Blue; |
204073154 |
— | ||
|
35
|
35
204073182
Port.boite gant*door-glovebox/lower
Sage Green; |
204073182 |
— | ||
|
36
|
36
204072938 Verrou bo+te gant*latch-glovebox |
204072938 |
US $83.61 |
||
|
37
|
37
204072990 Charniere noire*hinge-black |
204072990 |
US $31.47 |
||
|
38
|
38
205441660 Screw-socket bn.hd.iso.7380a2 |
205441660 |
US $9.50 |
||
|
39
|
39
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
40
|
40
204070940 Parechocs-cont.*bumper-stem |
204070940 |
US $11.17 |
||
|
41
|
41
413705800 Loctite 414 *loctite-414 |
413705800 |
US $33.61 |
||
|
42
|
42
204072500 Tapis-carross.*carpet-deck/port |
204072500 |
US $53.01 |
||
|
43
|
43
204072989 Tapis-console*carpet-console/port |
204072989 |
US $43.81 |
||
|
44
|
44
204072501 Tapis-console*carpet-console/port |
204072501 |
US $43.81 |
||
|
45
|
45
204072980
Tapis-noir *carpet
|
204072980 |
— | ||
|
46
|
46
204070060 Gache *keeper |
204070060 |
US $62.90 |
||
|
47
|
47
209641360 Screw-tapp.pan hd.ph.din.7981b-a2 |
209641360 |
US $19.60 |
||
|
48
|
48
204130050 Rivet-pop 3/16 *rivet-pop 3/16 |
204130050 |
US $2.52 |
||
|
49
|
49
204071498 Cable retenue*cable-retainer |
204071498 |
US $44.83 |
||
|
50
|
50
293150008 Rivet-pop 3/16 *rivet-pop 3/16 |
293150008 |
US $6.60 |
||
|
51
|
51
234052600 Washer-flat din.9021b-a2 |
234052600 |
from US $1.32 |
||
|
52
|
52
204073156
Porte-boite*door-glovebox/upper
Navy Blue; |
204073156 |
— | ||
|
52
|
52
204073157
Porte-boite*door-glovebox/upper
Sage Green; |
204073157 |
— | ||
|
53
|
53
204073197 Charniere noire*hinge-black |
204073197 |
US $34.19 |
||
|
54
|
54
232541600 Nut-stop elastic din.985a2 |
232541600 |
US $7.40 |
||
|
55
|
55
234041600 Washer-flat din.125a-a2 |
234041600 |
US $7.40 |
||
|
56
|
56
293150057 Rivet-pop 1/8 *rivet-pop 1/8 |
293150057 |
US $17 |
||
|
57
|
57
293150026 Rivet-pop 1/8 *rivet-pop 1/8 |
293150026 |
US $3.90 |
||
|
58
|
58
204072937 Ressort-+coutille*spring-hatch |
204072937 |
US $42.81 |
||
|
59
|
59
293150032 Rivet-pop 1/8 *rivet-pop 1/8 |
293150032 |
US $19.50 |
||
|
60
|
60
204072907 Fermer magn+tiq.*catch-magnetic |
204072907 |
US $27.34 |
||
|
61
|
61
293150036 Rivet-pop 1/8 *rivet-pop 1/8 |
293150036 |
US $0.37 |
||
|
62
|
62
204072908 Support-loquet*bracket-latch |
204072908 |
US $15.22 |
||
|
63
|
63
204073168 Espace.loquet*spacer-latch 1/16 |
204073168 |
US $28.15 |
