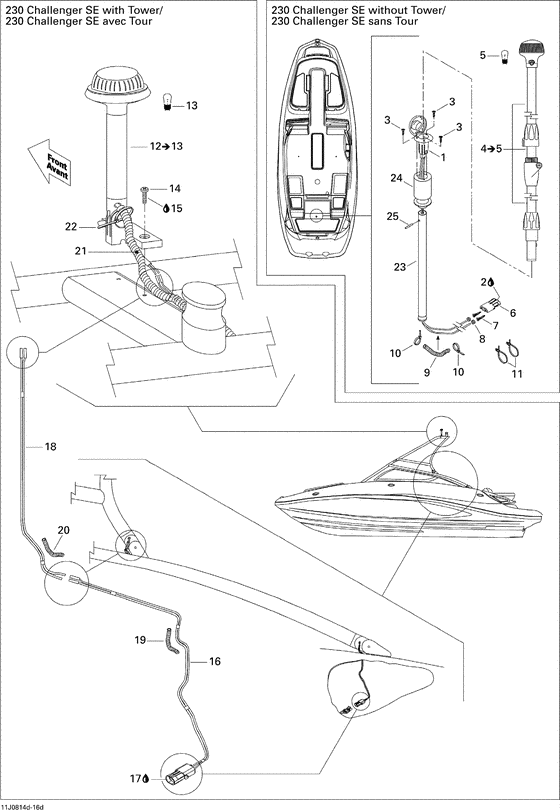

10- electrical accessories 4 Diagram Bombardier Challenger
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
204471275
Base phare*base- lamp
Without Tower; |
204471275 |
— | ||
|
2
|
2
293550004 Graisse dielect*grease-dielect dc4Without Tower; |
293550004 |
US $59.94 |
||
|
3
|
3
209641360 Screw-tapp.pan hd.ph.din.7981b-a2Without Tower; |
209641360 |
US $19.60 |
||
|
4
|
4
204471268 Pole phare *pole-lampIncludes 4 to 5, Without Tower; |
204471268 |
US $201.93 |
||
|
5
|
5
204470053
Ampoule *bulb
Without Tower; |
204470053 |
— | ||
|
6
|
6
278000217 Bloc 2 circ.fem*housing-tab(f)Without Tower; |
278000217 |
US $54.25 |
||
|
7
|
7
278000222 Cosse male *terminal-maleWithout Tower; |
278000222 |
US $21.15 |
||
|
8
|
8
278000218 Joint de fil *seal-wireWithout Tower; |
278000218 |
US $58.70 |
||
|
9
|
9
204050326 Gaine fendu 3/8*split-loom 3/8Without Tower; |
204050326 |
US $9.40 |
||
|
10
|
10
293750001 Tie rap 94mm *tie-rap 94mmWithout Tower; |
293750001 |
US $66.50 |
||
|
11
|
11
204130098 Tie rap / dard*tie rap w/dartWithout Tower; |
204130098 |
US $208 |
||
|
12
|
12
204471183
Pole lumi+re*pole-light/tower
Includes 12 to 13, With Tower; |
204471183 |
— | ||
|
13
|
13
204470053
Ampoule *bulb
With Tower; |
204470053 |
— | ||
|
14
|
14
208641660 Screw-pan hd.ph.din.7985a-a2With Tower; |
208641660 |
US $11.70 |
||
|
15
|
15
293800060 Loctite 243 *loctite-243With Tower; |
293800060 |
US $31.18 |
||
|
16
|
16
204471276 Harnais-tour*harness-tower/lowerWith Tower; |
204471276 |
US $54.03 |
||
|
17
|
17
293550004 Graisse dielect*grease-dielect dc4With Tower; |
293550004 |
US $59.94 |
||
|
18
|
18
204471185 Harnais-tour*harness-tower/upperWith Tower; |
204471185 |
US $29.16 |
||
|
19
|
19
204050326 Gaine fendu 3/8*split-loom 3/8With Tower; |
204050326 |
US $9.40 |
||
|
20
|
20
204050326 Gaine fendu 3/8*split-loom 3/8With Tower; |
204050326 |
US $9.40 |
||
|
21
|
21
204050326 Gaine fendu 3/8*split-loom 3/8With Tower; |
204050326 |
US $9.40 |
||
|
22
|
22
293750001 Tie rap 94mm *tie-rap 94mmWith Tower; |
293750001 |
US $66.50 |
||
|
23
|
23
204950025 Manche de ski*shaft-skiWith Tower; |
204950025 |
US $68.29 |
||
|
24
|
24
204950024 Capuchon ski*cap-ski shaftWith Tower; |
204950024 |
US $88.69 |
||
|
25
|
25
204100221 Pin-rolled din.1481-a2 / ssWith Tower; |
204100221 |
US $2.01 |
