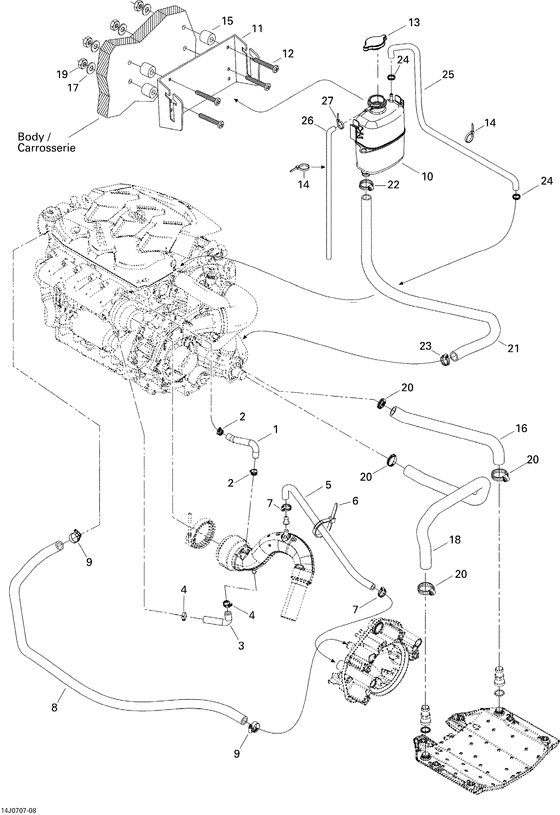

01- cooling system Diagram Bombardier Challenger
- Year
- 2007
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
276000155
Boyau forme *hose-formed
|
276000155 |
— | ||
|
2
|
2
293650172 Bride serrage *hose clamp |
293650172 |
US $20.50 |
||
|
3
|
3
276000156 Boyau forme *hose-formed |
276000156 |
US $20.77 |
||
|
4
|
4
293650172 Bride serrage *hose clamp |
293650172 |
US $20.50 |
||
|
5
|
5
276000001
Boyau 12.5mm. *hose-12.5mm.
|
276000001 |
— | ||
| replacement | |||||
|
5
|
5
296000303
BOYAU 12.5MM. *HOSE 12.5MM.
|
296000303 |
— | ||
|
6
|
6
293750008 Tie rap 350mm *tie-rap 350mm |
293750008 |
US $13.40 |
||
|
7
|
7
293650172 Bride serrage *hose clamp |
293650172 |
US $20.50 |
||
|
8
|
8
276000099 Boyau 19.0mm. *hose-19.0mm. |
276000099 |
US $45.70 |
||
|
9
|
9
293650051 Bride serrage *clamp-tridon |
293650051 |
US $28.55 |
||
|
10
|
10
276000086 Res.antigel *tank-coolant |
276000086 |
US $131.63 |
||
|
11
|
11
204300165
Supp.reserv.*bracket-reservoir
|
204300165 |
— | ||
|
12
|
12
208653560 Screw-pan hd.ph.din.7985a-a2 |
208653560 |
US $14.35 |
||
|
13
|
13
276000100 Bouchon rad. *pressure cap ass y |
276000100 |
US $28.25 |
||
|
14
|
14
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
15
|
15
204300166 Douille *bushing |
204300166 |
US $12.19 |
||
|
16
|
16
276000153
Boyau droit *hose-right
|
276000153 |
— | ||
| replacement | |||||
|
16
|
16
276000248 RH RADIATOR HOSE |
276000248 |
US $62.39 |
||
|
17
|
17
234052600 Washer-flat din.9021b-a2 |
234052600 |
from US $1.32 |
||
|
18
|
18
276000154
Boyau gauche *lh.side hose
|
276000154 |
— | ||
| replacement | |||||
|
18
|
18
276000250 LH RADIATOR HOSE |
276000250 |
US $62.17 |
||
|
19
|
19
232551600 Nut-stop elastic din.985a2 |
232551600 |
US $7.40 |
||
|
20
|
20
293650045 Bride serrage *clamp-tridon |
293650045 |
US $37.65 |
||
|
21
|
21
276000099 Boyau 19.0mm. *hose-19.0mm. |
276000099 |
US $45.70 |
||
|
22
|
22
293650051 Bride serrage *clamp-tridon |
293650051 |
US $28.55 |
||
|
23
|
23
293650019 Bride serrage *clamp-tridon |
293650019 |
US $37.65 |
||
|
24
|
24
293650025 Bride serrage *clamp-oetiker |
293650025 |
US $20.50 |
||
|
25
|
25
204300184 Boyau 1/4 *hose-1/4 |
204300184 |
US $20.77 |
||
|
26
|
26
415080200
Boyau polyure *polyurethane hose
|
415080200 |
— | ||
|
27
|
27
293750001 Tie rap 94mm *tie-rap 94mm |
293750001 |
US $66.50 |
||
