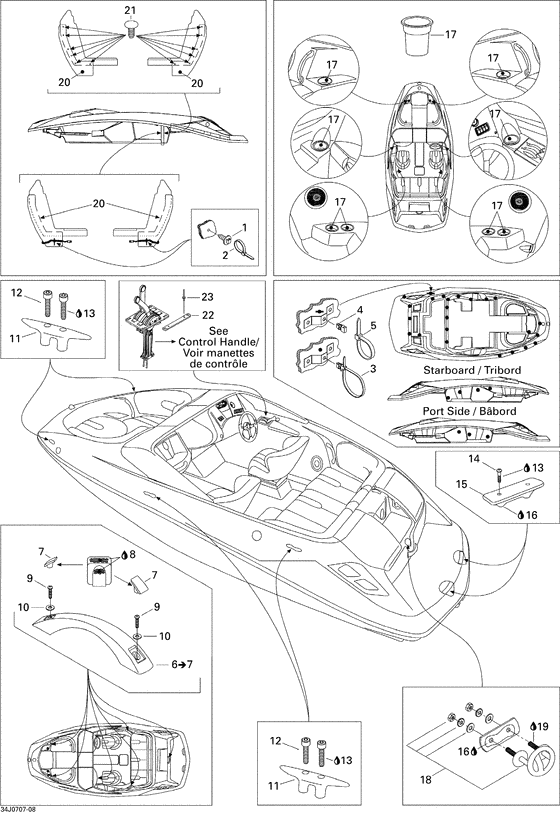

09- body and accessories Diagram Bombardier Challenger
- Year
- 2007
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
293730040 Dard d ancrage *dart-mount |
293730040 |
US $1.34 |
||
|
2
|
2
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
3
|
3
204130098 Tie rap / dard*tie rap w/dart |
204130098 |
US $208 |
||
|
4
|
4
204130099 Dard noir *dart-black |
204130099 |
US $33.52 |
||
|
5
|
5
293750008 Tie rap 350mm *tie-rap 350mm |
293750008 |
US $13.40 |
||
|
6
|
6
204070045
Poignee maint. *handle-grip
Includes 6 to 7; |
204070045 |
— | ||
|
7
|
7
204070056
Capuchon press.*cap-snap peyt.
|
204070056 |
— | ||
| replacement | |||||
|
7
|
7
204070045
Poignee maint. *handle-grip
|
204070045 |
— | ||
|
8
|
8
413705800 Loctite 414 *loctite-414 |
413705800 |
US $33.61 |
||
|
9
|
9
205963060 Screw-socket bn.hd.s.grip iso.7380a2 |
205963060 |
US $1.79 |
||
|
10
|
10
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
11
|
11
204070592 Agrafe base *cleat-openbase |
204070592 |
US $38.83 |
||
|
12
|
12
204100144 Screw-socket hd.ctsk.din.7991-a2/m6 |
204100144 |
US $7 |
||
|
13
|
13
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
14
|
14
205364060 Screw-socket hd.ctsk.din.7991-a2 |
205364060 |
US $19.60 |
||
|
15
|
15
204070194 Poignee maint. *handle-grip |
204070194 |
US $43.81 |
||
|
16
|
16
293800086
Scell.silicone *seal-silicone
|
293800086 |
— | ||
|
17
|
17
291000619
Coupole retenue*cup-holder
|
291000619 |
— | ||
|
18
|
18
204070206
Ancrage skieur *tow-ski (66449-1)
|
204070206 |
— | ||
|
19
|
19
293800005 Loctite 271 *loctite-271 |
293800005 |
US $31.18 |
||
|
20
|
20
204072117
Joint mur bruit*seal-soundwall
|
204072117 |
— | ||
|
21
|
21
293730014 Dard noir *dart-black |
293730014 |
US $13.40 |
||
|
22
|
22
293450061 Ajout controle *insert-shifter |
293450061 |
US $27.29 |
||
|
23
|
23
293150013 Rivet-pop 3/16 *rivet-pop 3/16 |
293150013 |
from US $2.12 |
||
