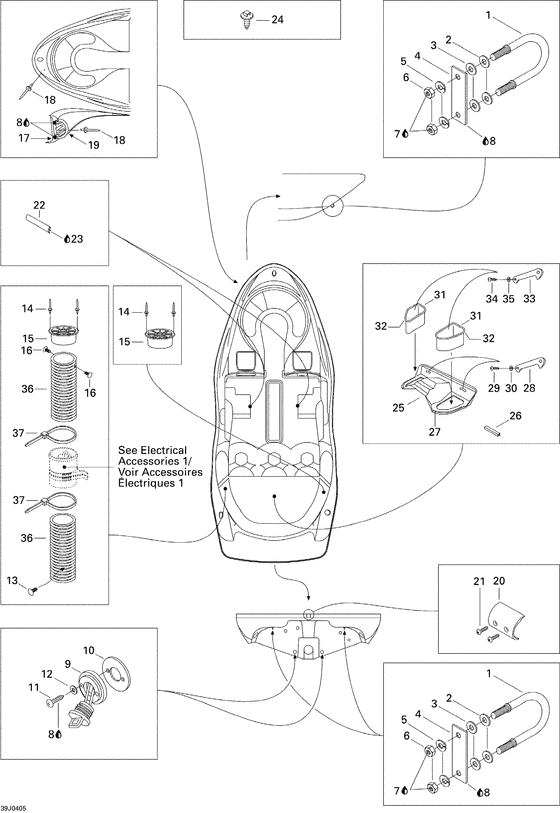

09- hull Diagram Bombardier Challenger
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
292000063 Bride en u *clamp-u |
292000063 |
US $70.35 |
||
|
2
|
2
293050001 Rondelle plate *flat washer |
293050001 |
US $19.90 |
||
|
3
|
3
211200029 Washer-flat plastic |
211200029 |
US $9.80 |
||
|
4
|
4
291000307 Plaque retenue *plate-retainer |
291000307 |
US $13.60 |
||
|
5
|
5
234181601 Washer-lock helical din.127b-a2 |
234181601 |
US $7.10 |
||
|
6
|
6
232081600 Nut-hexagonal din.934a2 |
232081600 |
US $9.50 |
||
|
7
|
7
293800005 Loctite 271 *loctite-271 |
293800005 |
US $31.18 |
||
|
8
|
8
293800086
Scell.silicone *seal-silicone
|
293800086 |
— | ||
|
9
|
9
292000187 Bouchon purge *plug-drain |
292000187 |
from US $21.60 |
||
|
10
|
10
293250030 Joint etanche *gasket |
293250030 |
US $38.85 |
||
|
11
|
11
209642560 Screw-tapp.pan hd.ph.din.7981c-a2 |
209642560 |
US $9.80 |
||
|
12
|
12
234041600 Washer-flat din.125a-a2 |
234041600 |
US $7.40 |
||
|
13
|
13
293730006 Dard noir *dart-black |
293730006 |
US $6.70 |
||
|
14
|
14
293150036 Rivet-pop 1/8 *rivet-pop 1/8 |
293150036 |
US $0.37 |
||
|
15
|
15
204050533
Grille d a+rat.*grill-vent/4
|
204050533 |
— | ||
|
16
|
16
293730006 Dard noir *dart-black |
293730006 |
US $6.70 |
||
|
17
|
17
291000903
Pare-chocs *bumper-met.pewter
|
291000903 |
— | ||
| replacement | |||||
|
17
|
17
204050199
Pare-chocs *bumper
|
204050199 |
— | ||
|
18
|
18
293150013 Rivet-pop 3/16 *rivet-pop 3/16 |
293150013 |
from US $2.12 |
||
|
19
|
19
291000904
Moulure parecho*trim-bump.side
|
291000904 |
— | ||
| replacement | |||||
|
19
|
19
204050200
Moul.pare-chocs*trim-bump.side
|
204050200 |
— | ||
|
20
|
20
291000905 Cache-joint *cover-bumper |
291000905 |
US $14.67 |
||
|
21
|
21
209943260 Screw-tapp.ctsk.ov.hd.din.7983c-a2 |
209943260 |
US $9.50 |
||
|
22
|
22
204050048
Moulure blanche*trim-white
|
204050048 |
— | ||
|
23
|
23
413705800 Loctite 414 *loctite-414 |
413705800 |
US $33.61 |
||
|
24
|
24
293730018 Dard d ancrage *dart-mount |
293730018 |
US $4.95 |
||
|
25
|
25
204050422
Couver.acces *cover-access
|
204050422 |
— | ||
|
26
|
26
204050213
Moulure scelle.*trim-seal
|
204050213 |
— | ||
|
27
|
27
293200020
Anneau etanche *seal-tray
|
293200020 |
— | ||
|
28
|
28
204050159 Poignee noire *handle-black |
204050159 |
US $16.76 |
||
|
29
|
29
241141660 Screw-pt.hex.flange k40 x 16 |
241141660 |
US $9.60 |
||
|
30
|
30
234042600 Washer-flat din.9021b-a2 |
234042600 |
US $7.40 |
||
|
31
|
31
204050210
Panier range. *basket-storage
|
204050210 |
— | ||
|
31
|
31
204050212
Panier range. *basket-storage
|
204050212 |
— | ||
|
32
|
32
293250008 Joint etanche *gasket |
293250008 |
US $15.73 |
||
|
33
|
33
204050159 Poignee noire *handle-black |
204050159 |
US $16.76 |
||
|
34
|
34
241141660 Screw-pt.hex.flange k40 x 16 |
241141660 |
US $9.60 |
||
|
35
|
35
234042600 Washer-flat din.9021b-a2 |
234042600 |
US $7.40 |
||
|
36
|
36
204050476 Boyau ventilat.*hose-vent |
204050476 |
US $125.31 |
||
|
37
|
37
293750008 Tie rap 350mm *tie-rap 350mm |
293750008 |
US $13.40 |
||
