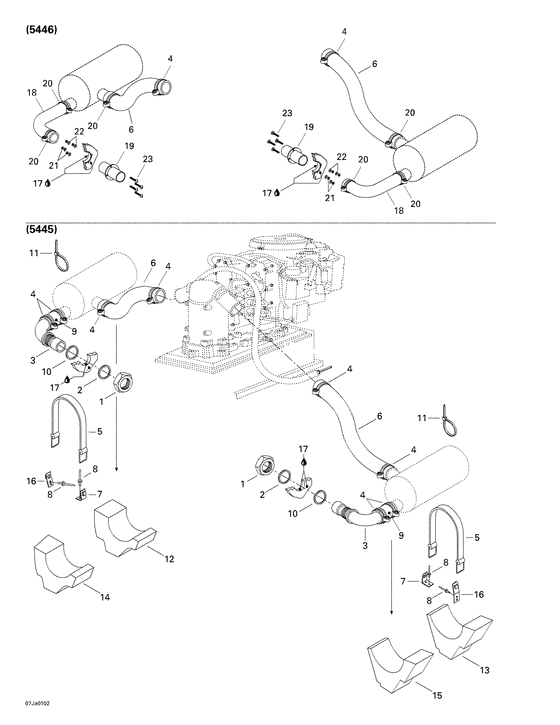

01- exhaust system Diagram Bombardier Challenger
- Year
- 2001
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
204340298
Echapp.flexib. *exhaust-flexible
CHALLENGER 1800 (5446).; |
204340298 |
— | ||
|
1
|
1
274000224 Ecrou 72mm *nut-72mmCHALLENGER 1800 (5445).; |
274000224 |
US $16.61 |
||
|
2
|
2
274000225 Rondelle stab. *washer-stabilizingCHALLENGER 1800 (5445).; |
274000225 |
US $9.13 |
||
|
3
|
3
204340206
Sortie echapp. *outlet-exhaust assy.
CHALLENGER 1800 (5445).; |
204340206 |
— | ||
|
4
|
4
293650064 Bride serrage *clamp-tridon |
293650064 |
US $10.47 |
||
|
5
|
5
293850022 Sangle res.huil*strap-oil tank |
293850022 |
US $41.23 |
||
|
6
|
6
204340185
Echapp.flexib. *exhaust-flexible
CHALLENGER 1800 (5445).; |
204340185 |
— | ||
|
7
|
7
204060017
Pince courroie *clip-strap
|
204060017 |
— | ||
|
8
|
8
293150011 Rivet-pop 3/16 *rivet-pop 3/16 |
293150011 |
US $9.40 |
||
|
9
|
9
204340073
Boyau echapp. *hose-exhaust
CHALLENGER 1800 (5445).; |
204340073 |
— | ||
|
10
|
10
293250041 Joint etanche *gasketCHALLENGER 1800 (5445).; |
293250041 |
US $55.85 |
||
|
11
|
11
293750020 Tie rap 838mm *tie-rap 838mm |
293750020 |
US $4.32 |
||
|
12
|
12
204340261
Support silenc.*support-muffler
|
204340261 |
— | ||
|
13
|
13
204340262
Support silenc.*support-muffler
|
204340262 |
— | ||
|
14
|
14
204340263
Support silenc.*support-muffler
|
204340263 |
— | ||
|
15
|
15
204340264
Support silenc.*support-muffler
|
204340264 |
— | ||
|
16
|
16
293850024 Pince courroie *clip-strap |
293850024 |
US $157.30 |
||
|
17
|
17
293800086
Scell.silicone *seal-silicone
|
293800086 |
— | ||
|
18
|
18
204340299
Boyau echapp. *hose-exhaust
CHALLENGER 1800 (5446).; |
204340299 |
— | ||
|
19
|
19
204340277
Sortie echapp. *outlet-exh.assy.
CHALLENGER 1800 (5446).; |
204340277 |
— | ||
|
20
|
20
293650112 Bride serrage *clamp-tridonCHALLENGER 1800 (5446).; |
293650112 |
US $14.52 |
||
|
21
|
21
232561600 Nut-stop elastic din.985-a2CHALLENGER 1800 (5446).; |
232561600 |
US $7.40 |
||
|
22
|
22
234062600 Washer-flat din.9021b-a2CHALLENGER 1800 (5446).; |
234062600 |
US $10 |
||
|
23
|
23
208663560 Screw-pan hd.ph.din.7985a-a2CHALLENGER 1800 (5446).; |
208663560 |
US $15.80 |
