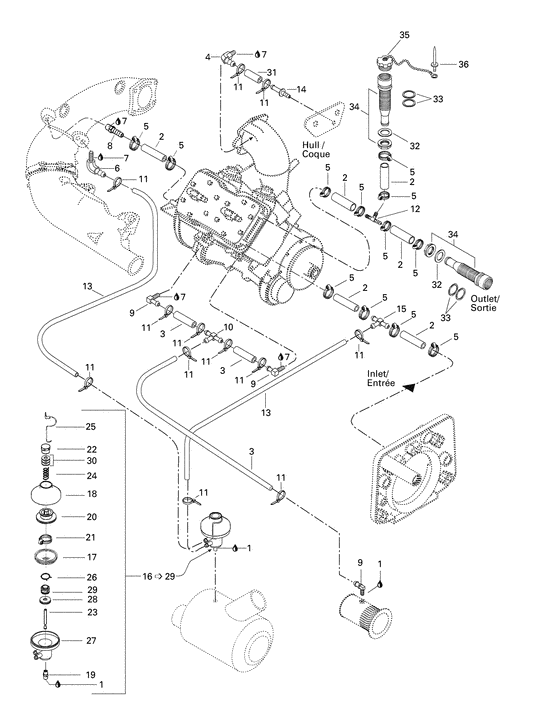

01- cooling system Diagram Bombardier Challenger
- Year
- 1997
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
293800018 Scellant tuyau *sealant-pipe |
293800018 |
US $38.71 |
||
|
2
|
2
276000001
Boyau 12.5mm. *hose-12.5mm.
|
276000001 |
— | ||
| replacement | |||||
|
2
|
2
296000303
BOYAU 12.5MM. *HOSE 12.5MM.
|
296000303 |
— | ||
|
3
|
3
275000007
Boyau 8mm. *hose-8mm.
|
275000007 |
— | ||
|
4
|
4
293710018
Raccord coude90*fitting-elbow
|
293710018 |
— | ||
|
5
|
5
293650037
Bride serrage *clamp-tridon
|
293650037 |
— | ||
| replacement | |||||
|
5
|
5
293650172 Bride serrage *hose clamp |
293650172 |
US $20.50 |
||
|
6
|
6
293710048
Raccord coude90*fitting-elbow
|
293710048 |
— | ||
|
7
|
7
293800013 Scellant tuyau *sealant-pipe |
293800013 |
US $106.05 |
||
|
8
|
8
293710021 Raccord male *connector-male |
293710021 |
US $13.21 |
||
|
9
|
9
293700016
Raccord coude90*fitting-elbow
|
293700016 |
— | ||
|
10
|
10
293710061 Raccord en t *fitting-t |
293710061 |
US $12.19 |
||
|
11
|
11
293750001 Tie rap 94mm *tie-rap 94mm |
293750001 |
US $66.50 |
||
|
12
|
12
293710053 Raccord en t *fitting-t |
293710053 |
US $35.45 |
||
|
13
|
13
276000048 Boyau 6mm. *hose-6mm. |
276000048 |
US $121.95 |
||
|
14
|
14
291000306 Raccord purge *fitting-bleed |
291000306 |
US $8.13 |
||
|
15
|
15
293710052
Raccord en t *fitting-t
|
293710052 |
— | ||
|
16
|
16
274000576
Regulateur pres*reg-pression
Includes 16 - 30.; |
274000576 |
— | ||
| replacement | |||||
|
16
|
16
276000134 Regulateur *regulatorIncludes 16 - 30.; |
276000134 |
US $213.23 |
||
|
17
|
17
420260721 Manchon *bellows |
420260721 |
US $57.51 |
||
|
18
|
18
420911550
Couvercle soup.*cover-valve
|
420911550 |
— | ||
| replacement | |||||
|
18
|
18
420911552 Couvercle soup.*cover-valve |
420911552 |
US $42.87 |
||
|
19
|
19
293700010 Raccord male *connector-male |
293700010 |
US $21.39 |
||
|
20
|
20
420253255
Soupape echapp.*valve-exhaust
|
420253255 |
— | ||
|
21
|
21
293650065 Bride serrage *clamp |
293650065 |
US $35.34 |
||
|
22
|
22
290241220
Vis ajustement *screw-adjuster
|
290241220 |
— | ||
| replacement | |||||
|
22
|
22
420241221 Vis ajustement *screw-adjuster |
420241221 |
US $12.19 |
||
|
23
|
23
274000423 Tige de debit *rod-feeding |
274000423 |
US $50.97 |
||
|
24
|
24
274000382
Ressort 44mm *spring-44mm
|
274000382 |
— | ||
|
25
|
25
420838082
Pince a ressort*clip-spring
|
420838082 |
— | ||
| replacement | |||||
|
25
|
25
420838083 Pince a ressort*clip-spring |
420838083 |
US $17.74 |
||
|
26
|
26
420838190 Bride *clamp |
420838190 |
US $29.15 |
||
|
30
|
30
213200017
Washer-flat b27.2
|
213200017 |
— | ||
|
31
|
31
275500018
Boyau 5.2mm *hose-5.2mm
|
275500018 |
— | ||
|
32
|
32
293050003
Rondelle *washer
|
293050003 |
— | ||
|
33
|
33
293250028 Joint etanche *gasket |
293250028 |
US $6.21 |
||
|
34
|
34
293710063
Raccord *fitting
|
293710063 |
— | ||
| replacement | |||||
|
34
|
34
293710081 Raccord *fitting-perko #6642 |
293710081 |
US $16.29 |
||
|
35
|
35
293000055 Bouchon *plug |
293000055 |
US $18.33 |
||
|
36
|
36
293150023 Rivet-pop 1/8 *rivet-pop 1/8 |
293150023 |
US $19.60 |
||
