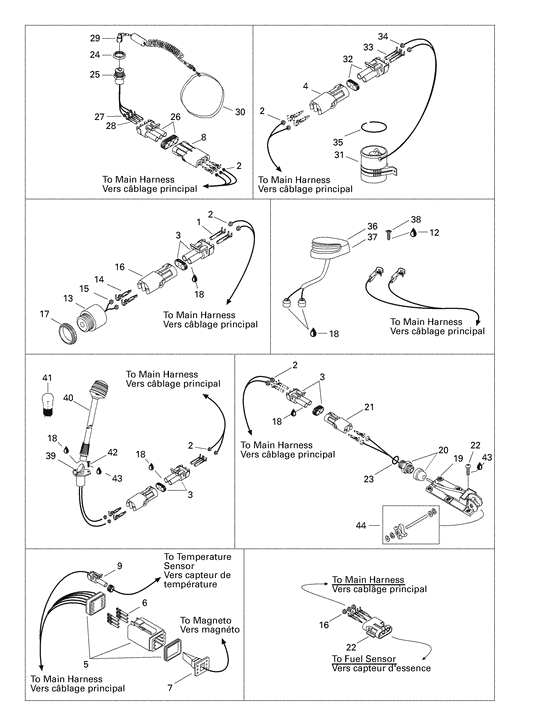

10- electrical accessories 3 Diagram Bombardier Challenger
- Year
- 1997
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
409007300 Cosse femelle *terminal-femal. |
409007300 |
US $6 |
||
|
2
|
2
278000218 Joint de fil *seal-wire |
278000218 |
US $58.70 |
||
|
3
|
3
278000220 Bloc 2 circ.mal*housing-tab(m) |
278000220 |
US $15.74 |
||
|
4
|
4
278000217 Bloc 2 circ.fem*housing-tab(f) |
278000217 |
US $54.25 |
||
|
5
|
5
278000736 Bloc 6 circ.mal*housing-tab |
278000736 |
US $25.19 |
||
|
6
|
6
278000632 Cosse femelle *terminal-femal |
278000632 |
US $28.40 |
||
|
7
|
7
278000737 Cale 6 circ.mal*wedge-6 ways m |
278000737 |
US $19.45 |
||
|
8
|
8
278000281 Bloc 3 circ.fem*housing-tab |
278000281 |
US $54.25 |
||
|
9
|
9
278001012 Bloc 1 circ.mal*housing-tab |
278001012 |
US $84.60 |
||
|
10
|
10
278001013 Joint de fil *seal-wire |
278001013 |
from US $4.80 |
||
|
11
|
11
278001014 Cosse femelle *terminal-femal |
278001014 |
from US $6.09 |
||
|
12
|
12
293800040 Loctite 425 *loctite-425 |
293800040 |
US $61.15 |
||
|
13
|
13
278000887
Avertisseur ass*buzzer-assy.
Includes 13 - 17.; |
278000887 |
— | ||
| replacement | |||||
|
13
|
13
278001586
Avertisseur *buzzer
Includes 13 - 17.; |
278001586 |
— | ||
|
14
|
14
278000222 Cosse male *terminal-male |
278000222 |
US $21.15 |
||
|
15
|
15
278000218 Joint de fil *seal-wire |
278000218 |
US $58.70 |
||
|
16
|
16
278000217 Bloc 2 circ.fem*housing-tab(f) |
278000217 |
US $54.25 |
||
|
17
|
17
278000707
Ecrou avert. *nut-horn
|
278000707 |
— | ||
|
18
|
18
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
19
|
19
278000970
Capteur vitesse*sensor-speed
Includes 19 - 21.; |
278000970 |
— | ||
| replacements | |||||
|
19
|
19
278000222 Cosse male *terminal-maleIncludes 19 - 21.; |
278000222 |
US $21.15 |
||
|
19
|
19
278001998
Capteur vitesse*sensor-speed
Includes 19 - 21.; |
278001998 |
— | ||
|
19
|
19
278000218 Joint de fil *seal-wireIncludes 19 - 21.; |
278000218 |
US $58.70 |
||
|
19
|
19
293710031 Raccord elect. *connect-elect.Includes 19 - 21.; |
293710031 |
US $19.92 |
||
|
19
|
19
293710032 Ecrou d arret *nut-lockingIncludes 19 - 21.; |
293710032 |
US $48.55 |
||
|
20
|
20
293710031 Raccord elect. *connect-elect. |
293710031 |
US $19.92 |
||
|
21
|
21
278000217 Bloc 2 circ.fem*housing-tab(f) |
278000217 |
US $54.25 |
||
|
22
|
22
216351060
Screw-ctsk.ov.hd.ph.din.966a-a2
|
216351060 |
— | ||
| replacement | |||||
|
22
|
22
208551060 Screw-ctsk.ov.hd.ph.din.966a-a2 |
208551060 |
US $9.80 |
||
|
23
|
23
278000416 Rondelle etanc.*washer-seal |
278000416 |
US $41.90 |
||
|
24
|
24
278000508
Ecrou securite *nut-saf.switch
|
278000508 |
— | ||
|
25
|
25
278000646
Inter.urgence *switch-safety
Includes 25 - 28.; |
278000646 |
— | ||
| replacement | |||||
|
25
|
25
278001734
Inter.urgence *switch-safety
Includes 25 - 28.; |
278001734 |
— | ||
|
26
|
26
278000273 Bloc 3 circ.mal*housing-tab |
278000273 |
US $10.85 |
||
|
27
|
27
278000218 Joint de fil *seal-wire |
278000218 |
US $58.70 |
||
|
28
|
28
278000223 Cosse femelle *terminal-femal |
278000223 |
US $21.15 |
||
|
29
|
29
295500342
Safety lanyard kit
|
295500342 |
— | ||
| replacement | |||||
|
29
|
29
278002199 Cordon securite*lanyard-safety |
278002199 |
US $93.60 |
||
|
30
|
30
204470025
Courroie secur.*strap-safety
|
204470025 |
— | ||
|
31
|
31
204470108 Ventilateur ass*fan-assy.Includes 31 - 33.; |
204470108 |
US $163.83 |
||
|
32
|
32
278000220 Bloc 2 circ.mal*housing-tab(m) |
278000220 |
US $15.74 |
||
|
33
|
33
278000223 Cosse femelle *terminal-femal |
278000223 |
US $21.15 |
||
|
34
|
34
278000218 Joint de fil *seal-wire |
278000218 |
US $58.70 |
||
|
35
|
35
204000133 Broche *broach |
204000133 |
US $22.39 |
||
|
36
|
36
204470062
Phare avant ass*lamp-front ass
|
204470062 |
— | ||
|
37
|
37
204470070 Base phare av. *base-lamp |
204470070 |
US $15.54 |
||
|
38
|
38
211000011
Screw-pan hd.ph.din.7985a-a2
|
211000011 |
— | ||
| replacement | |||||
|
38
|
38
208641660 Screw-pan hd.ph.din.7985a-a2 |
208641660 |
US $11.70 |
||
|
39
|
39
278000674
Base phare arr.*base-rear lamp
|
278000674 |
— | ||
|
40
|
40
204470022
Pole phare *pole-lamp rear
Includes 40 - 41.; |
204470022 |
— | ||
|
41
|
41
204470053
Ampoule *bulb
|
204470053 |
— | ||
|
42
|
42
211000136
Screw-ctsk.fl.hd.ph.din.965a-a4
|
211000136 |
— | ||
| replacement | |||||
|
42
|
42
208443070 Screw-ctsk.fl.hd.ph.din.965a-a4 |
208443070 |
US $9.80 |
||
|
43
|
43
293800015
Loctite 242 *loctite-242
|
293800015 |
— | ||
| replacement | |||||
|
43
|
43
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
44
|
44
295500108
Paddle wheel kit
|
295500108 |
— | ||
| replacement | |||||
|
44
|
44
296000193 Paddle wheel kit |
296000193 |
US $74.41 |
||
