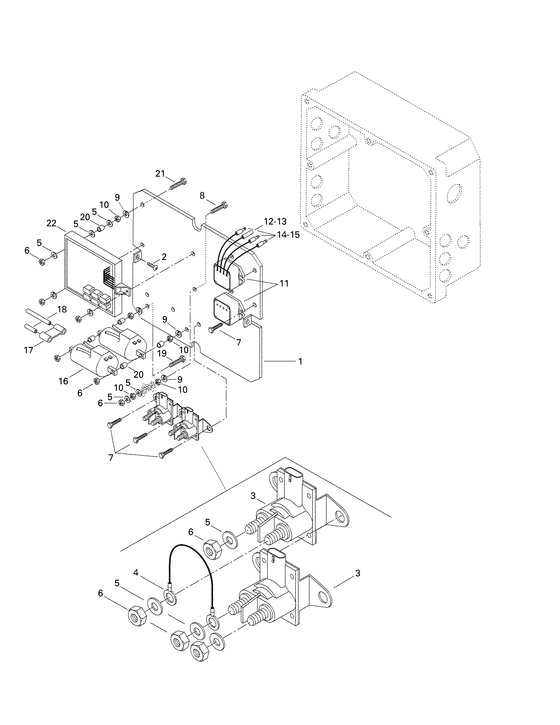

10- electrical box Diagram Bombardier Challenger
- Year
- 1997
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
204470008
Plaque de montage
|
204470008 |
— | ||
|
2
|
2
211000014
Screw-tapp.pan hd.ph.din.7981b-a2
|
211000014 |
— | ||
| replacement | |||||
|
2
|
2
209641360 Screw-tapp.pan hd.ph.din.7981b-a2 |
209641360 |
US $19.60 |
||
|
3
|
3
278000513
Solenoide dem. *relay-starter
|
278000513 |
— | ||
| replacement | |||||
|
3
|
3
278001802
Relais demareur*starter relay
|
278001802 |
— | ||
|
4
|
4
204470073
New Genuine Part
|
204470073 |
— | ||
|
5
|
5
213200001
Washer-flat din.125a-a2(m6)
|
213200001 |
— | ||
| replacement | |||||
|
5
|
5
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
6
|
6
212000001
Nut-stop elastic din.985-a2(m6)
|
212000001 |
— | ||
| replacement | |||||
|
6
|
6
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
7
|
7
211000035
Screw-forming hex.hd.fl.din.7500d
|
211000035 |
— | ||
| replacement | |||||
|
7
|
7
210261040 Screw-forming hex.hd.fl.din.7500d |
210261040 |
US $9.60 |
||
|
8
|
8
210000014
Screw-hex.cap din.933a2
|
210000014 |
— | ||
| replacement | |||||
|
8
|
8
207163560 Screw-hex.cap din.933a2 |
207163560 |
US $19.20 |
||
|
9
|
9
217361500
Washer-lock helical din.127b-a2
|
217361500 |
— | ||
| replacement | |||||
|
9
|
9
234161601 Washer-lock helical din.127b-a2 |
234161601 |
US $7.40 |
||
|
10
|
10
212100004
Nut-hexagonal din.934a2
|
212100004 |
— | ||
| replacement | |||||
|
10
|
10
232061600 Nut-hexagonal din.934a2 |
232061600 |
US $7.40 |
||
|
11
|
11
278000443
Redresseur ass.*rectifier-assy
Includes 11 - 15.; |
278000443 |
— | ||
|
12
|
12
278001009 Cosse femelle *terminal-femal |
278001009 |
US $21.15 |
||
|
13
|
13
278001007 Etui thermique *sheath-insulat |
278001007 |
US $22.45 |
||
|
14
|
14
278000230 Cosse male *terminal-male |
278000230 |
US $58.70 |
||
|
15
|
15
278001008 Etui thermique *sheath-insulat |
278001008 |
US $21.15 |
||
|
16
|
16
204470092
Bobine allumage*coil-ignition
|
204470092 |
— | ||
|
17
|
17
410914600 Attache fil bou*clip-plastic |
410914600 |
from US $9.01 |
||
|
18
|
18
204470093 New Genuine Part |
204470093 |
US $68 |
||
|
19
|
19
222067565
Screw-hex.cap din.931
|
222067565 |
— | ||
| replacement | |||||
|
19
|
19
207067544 Screw-hex.cap din.931 |
207067544 |
US $10.65 |
||
|
20
|
20
204470046
Entretoise 30 mm
|
204470046 |
— | ||
|
22
|
22
204470076
Module electron*module-elect.
|
204470076 |
— | ||
