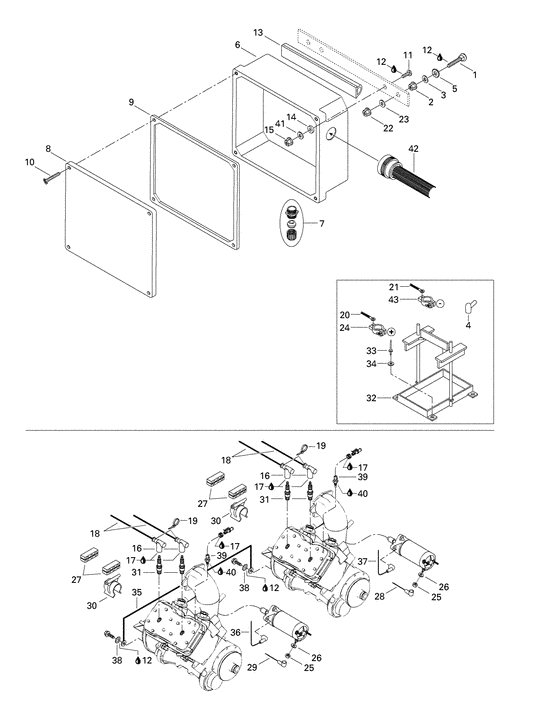

10- electrical system Diagram Bombardier Challenger
- Year
- 1997
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
204000130
Bolt-elevator
|
204000130 |
— | ||
|
2
|
2
211100026 Nut-hexagonal 1/4-20 |
211100026 |
US $9.80 |
||
|
3
|
3
213200002
Washer-flat din.125a-a2(m8)
|
213200002 |
— | ||
| replacement | |||||
|
3
|
3
234081600 Washer-flat din.125a-a2 |
234081600 |
US $7.10 |
||
|
4
|
4
278000020 Capuchon batt. *cap-wire batt. |
278000020 |
US $30.35 |
||
|
5
|
5
213400001
Washer-lock toothed din.6797a-a2
|
213400001 |
— | ||
| replacement | |||||
|
5
|
5
234381608 Washer-lock toothed din.6797a-a2 |
234381608 |
US $5.35 |
||
|
6
|
6
204470007
New Genuine Part
Includes 6 - 7.; |
204470007 |
— | ||
|
7
|
7
278000528
Bouchon et passe-fil
|
278000528 |
— | ||
|
8
|
8
278000625
New Genuine Part
|
278000625 |
— | ||
|
9
|
9
293250033
Joint etanche *gasket
|
293250033 |
— | ||
|
10
|
10
211000052 Vis 1/4-20 x 5/8 |
211000052 |
US $9.80 |
||
|
11
|
11
216162060
Screw-ctsk.fl.hd.ph.din.965a-a2
|
216162060 |
— | ||
| replacement | |||||
|
11
|
11
208462060 Screw-ctsk.fl.hd.ph.din.965a-a2 |
208462060 |
US $14.60 |
||
|
12
|
12
293800015
Loctite 242 *loctite-242
|
293800015 |
— | ||
| replacement | |||||
|
12
|
12
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
13
|
13
293200017 Anneau neoprene*neoprene seal |
293200017 |
US $5.83 |
||
| replacement | |||||
|
13
|
13
293200093 Anneau neoprene*neoprene seal |
293200093 |
US $183.44 |
||
|
14
|
14
211200032
Rondelle de caoutchouc
|
211200032 |
— | ||
|
15
|
15
212000001
Nut-stop elastic din.985-a2(m6)
|
212000001 |
— | ||
| replacement | |||||
|
15
|
15
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
16
|
16
278000237
Capuchon bougie*cap-spark plug
|
278000237 |
— | ||
|
17
|
17
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
18
|
18
204470093 New Genuine Part |
204470093 |
US $68 |
||
|
19
|
19
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
20
|
20
204470068
Cable rouge *cable-red
|
204470068 |
— | ||
| replacement | |||||
|
20
|
20
204470001
Cable rouge *cable-red
|
204470001 |
— | ||
|
21
|
21
204470047
Cable masse *cable-ground
|
204470047 |
— | ||
|
22
|
22
212000005 Nut-stop elastic ms-17830 |
212000005 |
US $9.80 |
||
|
23
|
23
213200007
Washer-flat din.9021b-a2(m6)
|
213200007 |
— | ||
| replacement | |||||
|
23
|
23
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
24
|
24
278000680
Battery pole (negative)
|
278000680 |
— | ||
|
25
|
25
212000001
Nut-stop elastic din.985-a2(m6)
|
212000001 |
— | ||
| replacement | |||||
|
25
|
25
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
26
|
26
213200001
Washer-flat din.125a-a2(m6)
|
213200001 |
— | ||
| replacement | |||||
|
26
|
26
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
27
|
27
278000245 Support fils 3 *support-wire |
278000245 |
US $7.31 |
||
|
28
|
28
204470048
New Genuine Part
|
204470048 |
— | ||
|
29
|
29
204470066
New Genuine Part
|
204470066 |
— | ||
|
30
|
30
278000559 Support collier*support-collar |
278000559 |
US $10.17 |
||
|
31
|
31
278000609
Bougie br8es *plug-spark br8es
|
278000609 |
— | ||
| replacement | |||||
|
31
|
31
219703119 SPARK PLUG, NGK BR8-ES |
219703119 |
from US $10.34 |
||
|
32
|
32
204470118
Support batt. *support-batt.
|
204470118 |
— | ||
|
33
|
33
293150008 Rivet-pop 3/16 *rivet-pop 3/16 |
293150008 |
US $6.60 |
||
|
34
|
34
213200015
Washer-flat din.9021b-a2
|
213200015 |
— | ||
| replacement | |||||
|
34
|
34
234052600 Washer-flat din.9021b-a2 |
234052600 |
from US $1.32 |
||
|
35
|
35
204470052
Cable masse #4 *cable-ground
|
204470052 |
— | ||
|
36
|
36
204470051
Cable masse ga.*cable-ground
|
204470051 |
— | ||
|
37
|
37
204470050
New Genuine Part
|
204470050 |
— | ||
|
38
|
38
217161600
Washer-lock serrated din.6798a-a2
|
217161600 |
— | ||
| replacement | |||||
|
38
|
38
234461608 Washer-lock serrated din.6798a-a2 |
234461608 |
US $7.40 |
||
|
39
|
39
278000965 Capteur temp. *sensor-temp. |
278000965 |
US $78.97 |
||
|
40
|
40
293800038 Loctite 518 *loctite-518 |
293800038 |
US $51.97 |
||
|
41
|
41
213200017
Washer-flat b27.2
|
213200017 |
— | ||
|
42
|
42
204470010
New Genuine Part
|
204470010 |
— | ||
|
43
|
43
278000679
Battery pole (positive)
|
278000679 |
— | ||
