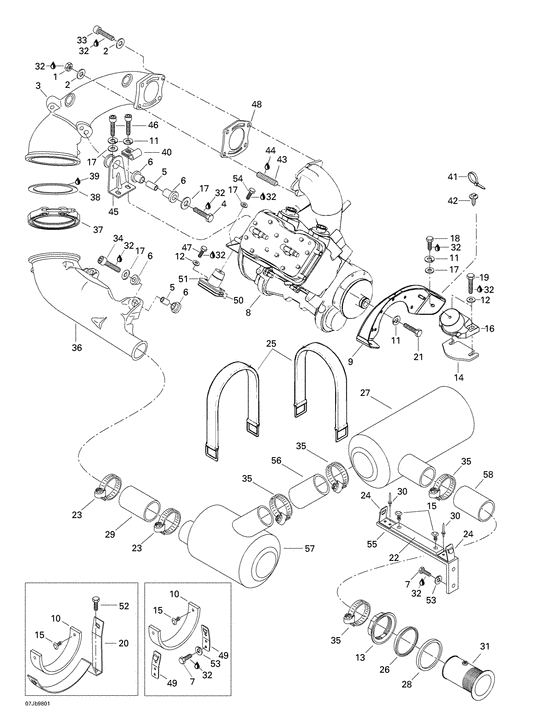

01- engine support and muffler Diagram Bombardier Challenger
- Year
- 1998
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
204340028
Boyau echapp.dr*hose-exhaustrh
|
204340028 |
— | ||
|
|
270000123 Cale epaisseur *shim-1.3mm. |
270000123 |
US $58.30 |
||
|
|
204250049 Cale 1.3 mm |
204250049 |
US $4.05 |
||
|
|
274000672
Silencieux ga (noir)
|
274000672 |
— | ||
|
1
|
1
212100007
Nut-hexagonal din.934a2
|
212100007 |
— | ||
| replacement | |||||
|
1
|
1
232001600 Nut-hexagonal din.934a2 |
232001600 |
US $10.65 |
||
|
2
|
2
213200003
Washer-flat din.125a-a2
|
213200003 |
— | ||
| replacement | |||||
|
2
|
2
234001600 Washer-flat din.125a-a2 |
234001600 |
US $7.40 |
||
|
3
|
3
274000161
Tuyau collect. *pipe-head
|
274000161 |
— | ||
| replacement | |||||
|
3
|
3
274000941
Tuyau collect. *pipe-head
|
274000941 |
— | ||
|
4
|
4
215684060
Screw-hex.cap din.931a2
|
215684060 |
— | ||
| replacement | |||||
|
4
|
4
207084060 Screw-hex.cap din.931a2 |
207084060 |
US $14.35 |
||
|
5
|
5
274000254 Douille *bushing |
274000254 |
US $60.95 |
||
|
6
|
6
293830036 Douille caout. *bushing-rubber |
293830036 |
US $66.05 |
||
|
7
|
7
215051660
Screw-hex.cap din.933a2
|
215051660 |
— | ||
| replacement | |||||
|
7
|
7
207151660 Screw-hex.cap din.933a2 |
207151660 |
US $9.80 |
||
|
8
|
8
270000378
Moteur rotax 787 (argent)
|
270000378 |
— | ||
|
9
|
9
270000359
Support moteur *support-engine
|
270000359 |
— | ||
|
10
|
10
293830055
Tampon caout. *pad-rubber
|
293830055 |
— | ||
|
11
|
11
213000001
Washer-lock helical din.127b-a2
|
213000001 |
— | ||
| replacement | |||||
|
11
|
11
234181601 Washer-lock helical din.127b-a2 |
234181601 |
US $7.10 |
||
|
12
|
12
213200002
Washer-flat din.125a-a2(m8)
|
213200002 |
— | ||
| replacement | |||||
|
12
|
12
234081600 Washer-flat din.125a-a2 |
234081600 |
US $7.10 |
||
|
13
|
13
274000224 Ecrou 72mm *nut-72mm |
274000224 |
US $16.61 |
||
|
14
|
14
204250048 Cale epaisseur *shim-0.3mm |
204250048 |
US $55.85 |
||
|
15
|
15
293730006 Dard noir *dart-black |
293730006 |
US $6.70 |
||
|
16
|
16
270000352
Tampon ancrage *mount-rubber
|
270000352 |
— | ||
| replacement | |||||
|
16
|
16
270000720 Tampon ancrage *mount-rubber |
270000720 |
US $93.81 |
||
|
17
|
17
213200011
Washer-flat din.9021b-a2
|
213200011 |
— | ||
| replacement | |||||
|
17
|
17
234082600 Washer-flat din.9021b-a2 |
234082600 |
US $31.10 |
||
|
18
|
18
215681660
Screw-hex.cap din.933a2
|
215681660 |
— | ||
| replacement | |||||
|
18
|
18
207181660 Screw-hex.cap din.933a2 |
207181660 |
US $10.65 |
||
|
19
|
19
215084060
Screw-hex.cap din.933a2
|
215084060 |
— | ||
| replacement | |||||
|
19
|
19
207184060 Screw-hex.cap din.933a2 |
207184060 |
US $14.35 |
||
|
20
|
20
274000234
Support echapp.*support-muffle
|
274000234 |
— | ||
|
21
|
21
211000174
Screw-hex.cap din.933a2 s.grip
|
211000174 |
— | ||
| replacement | |||||
|
21
|
21
207382560 Screw-hex.cap din.933a2 s.grip |
207382560 |
US $31.10 |
||
|
22
|
22
204060031
Tampon caout. *pad-rubber
|
204060031 |
— | ||
|
23
|
23
293650036 Bride serrage *clamp-tridon |
293650036 |
US $46.75 |
||
|
24
|
24
204060017
Pince courroie *clip-strap
|
204060017 |
— | ||
|
25
|
25
293850021
Sangle retenue *strap-rubber
|
293850021 |
— | ||
| replacement | |||||
|
25
|
25
293850077
Sangle retenue *strap-rubber
|
293850077 |
— | ||
|
26
|
26
274000225 Rondelle stab. *washer-stabilizing |
274000225 |
US $9.13 |
||
|
27
|
27
274000671
Silencieux dr (noir)
|
274000671 |
— | ||
|
28
|
28
293250041 Joint etanche *gasket |
293250041 |
US $55.85 |
||
|
29
|
29
274000170 Boyau raccord *hose-exhaust |
274000170 |
US $36.69 |
||
|
30
|
30
293150037 Rivet avdel *rivet-avdel 3/16 |
293150037 |
US $7.30 |
||
|
31
|
31
274000222 Sortie echapp. *outlet-exhaust |
274000222 |
US $30.57 |
||
|
32
|
32
293800015
Loctite 242 *loctite-242
|
293800015 |
— | ||
| replacement | |||||
|
32
|
32
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
33
|
33
215903560
Screw-socket hd.din.912a2
|
215903560 |
— | ||
| replacement | |||||
|
33
|
33
205003560
Screw-socket hd.din.912a2
|
205003560 |
— | ||
|
34
|
34
215984060
Screw-socket hd.din.912a2
|
215984060 |
— | ||
| replacement | |||||
|
34
|
34
205084060 Screw-socket hd.din.912a2 |
205084060 |
US $14.20 |
||
|
35
|
35
293650061 Bride serrage *clamp-tridon |
293650061 |
US $9.13 |
||
|
36
|
36
274000210
Tuyau conique (noir)
|
274000210 |
— | ||
|
37
|
37
274000357
Bride serrage *clamp-exhaust
|
274000357 |
— | ||
|
38
|
38
274000169
Rondelle cuivre*copper washer
|
274000169 |
— | ||
|
39
|
39
413710300
Enduit etanche *sealant
|
413710300 |
— | ||
| replacement | |||||
|
39
|
39
293800090 Enduit etanche *sealant |
293800090 |
US $31.18 |
||
|
40
|
40
293850018
Attache collier*open clamp
|
293850018 |
— | ||
|
41
|
41
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
42
|
42
293730018 Dard d ancrage *dart-mount |
293730018 |
US $4.95 |
||
|
43
|
43
211300017
Stud-m10
|
211300017 |
— | ||
|
44
|
44
293800005 Loctite 271 *loctite-271 |
293800005 |
US $31.18 |
||
|
45
|
45
274000598
Support tuyau *support-pipe
|
274000598 |
— | ||
| replacement | |||||
|
45
|
45
274001104
Supp.tuyau *supp-pipe
|
274001104 |
— | ||
|
46
|
46
215982060
Screw-socket hd.din.912a2
|
215982060 |
— | ||
| replacement | |||||
|
46
|
46
205082060 Screw-socket hd.din.912a2 |
205082060 |
US $11.50 |
||
|
47
|
47
215084060
Screw-hex.cap din.933a2
|
215084060 |
— | ||
| replacement | |||||
|
47
|
47
207184060 Screw-hex.cap din.933a2 |
207184060 |
US $14.35 |
||
|
48
|
48
290931500
Joint etanche *gasket
|
290931500 |
— | ||
| replacement | |||||
|
48
|
48
420931503 Exhaust gasket |
420931503 |
US $17.29 |
||
|
49
|
49
293850024 Pince courroie *clip-strap |
293850024 |
US $157.30 |
||
|
50
|
50
270000122 Cale epaisseur *shim-0.3mm |
270000122 |
US $55.85 |
||
|
51
|
51
270000353
Tampon ancrage *mount-rubber
|
270000353 |
— | ||
| replacement | |||||
|
51
|
51
270000422
Tampon ancrage *mount-rubber
|
270000422 |
— | ||
|
52
|
52
216663260
Screw-tapp.pan hd.ph.din.7981c-a2
|
216663260 |
— | ||
| replacement | |||||
|
52
|
52
209663260
Screw-tapp.pan hd.ph.din.7981c-a2
|
209663260 |
— | ||
|
53
|
53
217351500
Washer-lock helical din.127b-a2
|
217351500 |
— | ||
| replacement | |||||
|
53
|
53
234151601 Washer-lock helical din.127b-a2 |
234151601 |
US $9.80 |
||
|
54
|
54
215081860
Screw-hex.cap din.933a2
|
215081860 |
— | ||
| replacement | |||||
|
54
|
54
207181860 Screw-hex.cap din.933a2 |
207181860 |
US $19.20 |
||
|
56
|
56
204340108
Boyau echapp. *hose-exhaust
|
204340108 |
— | ||
|
57
|
57
274000670
New Genuine Part
|
274000670 |
— | ||
|
58
|
58
204340027
Boyau echapp.ga*hose-exhaustlh
|
204340027 |
— | ||
