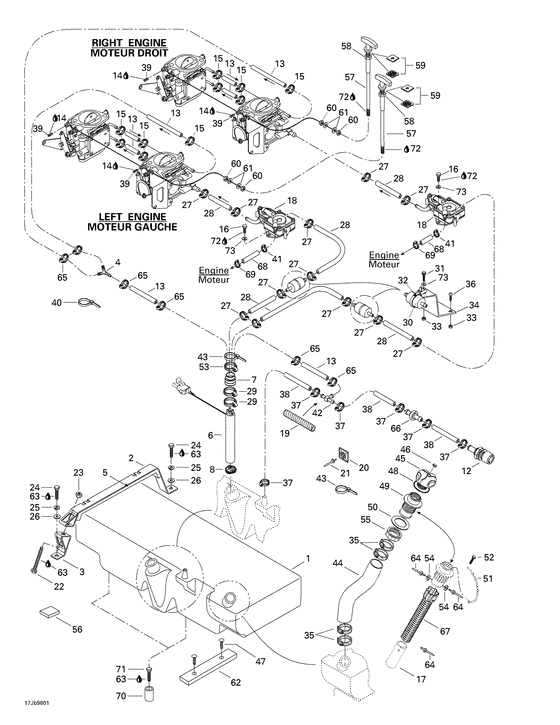

02- fuel system Diagram Bombardier Challenger
- Year
- 1998
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
204560015
New Genuine Part
|
204560015 |
— | ||
|
|
270000208
Cable etrang.ga*cable-choke lh
|
270000208 |
— | ||
|
1
|
1
204560073
Reserv.ess.plas*tank-fuel plas
|
204560073 |
— | ||
|
2
|
2
204560011
Sangle res.ess.*strap-fuel tank
|
204560011 |
— | ||
|
3
|
3
275500252 Attache reserv.*bracket-tank |
275500252 |
US $32.54 |
||
|
4
|
4
293710059 Raccord en y *y-connector |
293710059 |
US $10.97 |
||
|
5
|
5
204560037
Tampon protect.*pad-protector
|
204560037 |
— | ||
|
6
|
6
204560059
Chicane triage *baffle-pick up
Includes 6 - 11.; |
204560059 |
— | ||
| replacement | |||||
|
6
|
6
204560223
Chicane triage*baffle-pick up
Includes 6 - 11.; |
204560223 |
— | ||
|
7
|
7
204560066
Adap.tube ess. *adap-tube fuel
|
204560066 |
— | ||
|
8
|
8
275500397 Filtre essence *filter-fuel |
275500397 |
US $29.38 |
||
|
9
|
9
278000218 Joint de fil *seal-wire |
278000218 |
US $58.70 |
||
|
10
|
10
278000223 Cosse femelle *terminal-femal |
278000223 |
US $21.15 |
||
|
11
|
11
278000273 Bloc 3 circ.mal*housing-tab |
278000273 |
US $10.85 |
||
|
12
|
12
275500206 Aerateur *vent-boat |
275500206 |
US $34.63 |
||
|
13
|
13
204000068 Boyau 1/4" *hose-1/4 |
204000068 |
US $25.26 |
||
|
15
|
15
293650070 Bride serrage *clamp-norma |
293650070 |
US $13.60 |
||
|
16
|
16
210000011
Screw-hex.cap din.933a2
|
210000011 |
— | ||
| replacement | |||||
|
16
|
16
207161260 Screw-hex.cap din.933a2 |
207161260 |
US $8.15 |
||
|
18
|
18
270500388 Pompe essence *pump-fuel |
270500388 |
US $101.41 |
||
|
19
|
19
204560078
New Genuine Part
|
204560078 |
— | ||
|
20
|
20
293750015 Ancrage tie rap*mount-tie rap |
293750015 |
US $15.05 |
||
|
21
|
21
293150008 Rivet-pop 3/16 *rivet-pop 3/16 |
293150008 |
US $6.60 |
||
|
22
|
22
215085560
Screw-hex.cap din.933a2
|
215085560 |
— | ||
| replacement | |||||
|
22
|
22
207185560 Screw-hex.cap din.933a2 |
207185560 |
US $16 |
||
|
23
|
23
212000002
Nut-stop elastic din.985a2
|
212000002 |
— | ||
| replacement | |||||
|
23
|
23
232581600 Nut-stop elastic din.985a2 |
232581600 |
from US $2.39 |
||
|
24
|
24
210000002
Screw-hex.cap din.933a2
|
210000002 |
— | ||
| replacement | |||||
|
24
|
24
207182560 Screw-hex.cap din.933a2 |
207182560 |
US $7.65 |
||
|
25
|
25
213000001
Washer-lock helical din.127b-a2
|
213000001 |
— | ||
| replacement | |||||
|
25
|
25
234181601 Washer-lock helical din.127b-a2 |
234181601 |
US $7.10 |
||
|
26
|
26
213200011
Washer-flat din.9021b-a2
|
213200011 |
— | ||
| replacement | |||||
|
26
|
26
234082600 Washer-flat din.9021b-a2 |
234082600 |
US $31.10 |
||
|
27
|
27
293650087 Bride serrage *clamp-norma |
293650087 |
US $11.17 |
||
|
28
|
28
204560070
Boyau 5/16" *hose-5/16
|
204560070 |
— | ||
|
29
|
29
293650023 Bride serrage *clamp-tridon |
293650023 |
US $70.70 |
||
|
30
|
30
204560077
Filtre essence *filter-fuel in line
|
204560077 |
— | ||
|
31
|
31
210000004
Screw-hex.cap din.933a2
|
210000004 |
— | ||
| replacement | |||||
|
31
|
31
207162060 Screw-hex.cap din.933a2 |
207162060 |
US $8.75 |
||
|
32
|
32
293750017
Tie rap *tie-rap
|
293750017 |
— | ||
|
33
|
33
212000001
Nut-stop elastic din.985-a2(m6)
|
212000001 |
— | ||
| replacement | |||||
|
33
|
33
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
34
|
34
204560007
Fuel filter support
|
204560007 |
— | ||
|
35
|
35
293650023 Bride serrage *clamp-tridon |
293650023 |
US $70.70 |
||
|
36
|
36
211000003
Screw-ctsk.fl.hd.ph.din.965a-a2
|
211000003 |
— | ||
| replacement | |||||
|
36
|
36
208461660 Screw-ctsk.fl.hd.ph.din.965a-a2 |
208461660 |
US $1.96 |
||
|
37
|
37
293650069 Bride serrage *clamp-norma |
293650069 |
US $13.60 |
||
|
38
|
38
275500205
Boyau 16mm. *hose-16mm.
|
275500205 |
— | ||
|
39
|
39
210100014
Screw-set socket din.916a2
|
210100014 |
— | ||
| replacement | |||||
|
39
|
39
206540660
Screw-set socket din.916a2
|
206540660 |
— | ||
|
40
|
40
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
41
|
41
293650042 Bride serrage *clamp-oetiker |
293650042 |
US $20.50 |
||
|
42
|
42
204560038
Raccord en t *fitting-t
|
204560038 |
— | ||
|
43
|
43
294000606
Tie rap 180mm *tie-rap 180mm
|
294000606 |
— | ||
| replacement | |||||
|
43
|
43
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
44
|
44
204560033
Boyau remp.ext.*hose-fil.neck
|
204560033 |
— | ||
|
45
|
45
275500153
Bouchon ess.sub*cap-fuel sub.
Includes 45 - 46.; |
275500153 |
— | ||
| replacement | |||||
|
45
|
45
275500430 Bouchon ess.sub*cap-fuel sub.Includes 45 - 46.; |
275500430 |
US $30.19 |
||
|
46
|
46
293000034 Capuchon press.*cap-snap black |
293000034 |
US $50.05 |
||
|
47
|
47
293730006 Dard noir *dart-black |
293730006 |
US $6.70 |
||
|
48
|
48
293250017
Joint etanche *gasket
|
293250017 |
— | ||
|
49
|
49
275500247
Goulot remplis.*neck-filler
|
275500247 |
— | ||
|
50
|
50
293250029 Joint etanche *gasket |
293250029 |
US $16.13 |
||
|
51
|
51
275500015
Chaine bouchon *chain-cap oil
|
275500015 |
— | ||
|
52
|
52
211000028
Screw-pt.hex.flange k40 x 10
|
211000028 |
— | ||
| replacement | |||||
|
52
|
52
241140060 Screw-pt.hex.flange k40 x 10 |
241140060 |
US $9.60 |
||
|
53
|
53
293650078
Bride serrage *clamp-norma
|
293650078 |
— | ||
|
54
|
54
213200018
Washer-flat din.9021b-a2
|
213200018 |
— | ||
| replacement | |||||
|
54
|
54
234032600 Washer-flat din.9021b-a2 |
234032600 |
US $7.10 |
||
|
55
|
55
211100012 Nut-neck filler fuel |
211100012 |
US $14.14 |
||
|
56
|
56
204560027
Tampon protect.*pad-protector
|
204560027 |
— | ||
|
57
|
57
270000207
Cable etrang.dr*cable-choke rh
Includes 57 - 61.; |
270000207 |
— | ||
|
58
|
58
211100007
Nut-hexagonal hi-lex
|
211100007 |
— | ||
|
59
|
59
291000457 Plaque etrang. *plate-choke |
291000457 |
US $48.55 |
||
|
60
|
60
212100003
Nut-jam hexagonal din.439b-a2
|
212100003 |
— | ||
| replacement | |||||
|
60
|
60
232160600 Nut-jam hexagonal din.439b-a2 |
232160600 |
US $7.40 |
||
|
61
|
61
213200001
Washer-flat din.125a-a2(m6)
|
213200001 |
— | ||
| replacement | |||||
|
61
|
61
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
62
|
62
293830021
Tampon caout. *pad-rubber
|
293830021 |
— | ||
|
63
|
63
293800005 Loctite 271 *loctite-271 |
293800005 |
US $31.18 |
||
|
64
|
64
293150057 Rivet-pop 1/8 *rivet-pop 1/8 |
293150057 |
US $17 |
||
|
65
|
65
293650088
Bride serrage *clamp-norma
|
293650088 |
— | ||
|
66
|
66
204560074
Aer.anti-devers*vent-fuel-surge protect
|
204560074 |
— | ||
| replacement | |||||
|
66
|
66
204560101 Aer.anti-devers*vent-fuel surge protect |
204560101 |
US $89.73 |
||
|
67
|
67
275500067
Boyau remp.int.*hose-fil.neck
|
275500067 |
— | ||
|
68
|
68
275500139
Boyau 6mm. *hose-6mm.
|
275500139 |
— | ||
|
69
|
69
293650038
Bride serrage *clamp-tridon
|
293650038 |
— | ||
|
70
|
70
204560039
Butoir caout. *bumper-rubber
|
204560039 |
— | ||
| replacement | |||||
|
70
|
70
204071720 Butoir caout.*bumper-rubber |
204071720 |
US $22.02 |
||
|
71
|
71
215853568
Screw-pan hd.ph.din.7985a-a2
|
215853568 |
— | ||
| replacement | |||||
|
71
|
71
208653560 Screw-pan hd.ph.din.7985a-a2 |
208653560 |
US $14.35 |
||
|
72
|
72
293800015
Loctite 242 *loctite-242
|
293800015 |
— | ||
| replacement | |||||
|
72
|
72
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
73
|
73
213200001
Washer-flat din.125a-a2(m6)
|
213200001 |
— | ||
| replacement | |||||
|
73
|
73
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
