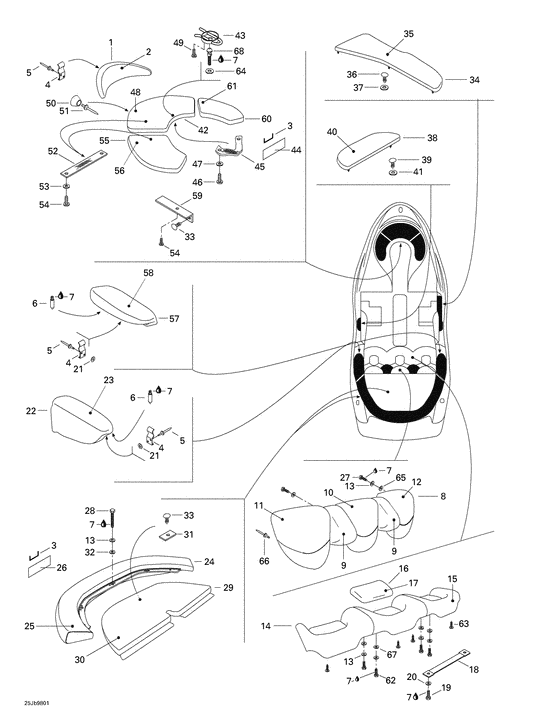

09- front / rear seat Diagram Bombardier Challenger
- Year
- 1998
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
204610352
Dossier av.assy*backrest-front
Includes 1 - 2.; |
204610352 |
— | ||
|
2
|
2
204610029
Front backrest cover (dark green)
|
204610029 |
— | ||
|
3
|
3
293730005
Agrafe monelle *staple-monelle
|
293730005 |
— | ||
|
4
|
4
269000388 Support siege *support-seat |
269000388 |
US $18.33 |
||
|
5
|
5
293150043 Rivet-pop 3/16 *rivet-pop 3/16 |
293150043 |
US $13.60 |
||
|
6
|
6
269000380
Tige filetee *rod-threaded
|
269000380 |
— | ||
|
7
|
7
293800015
Loctite 242 *loctite-242
|
293800015 |
— | ||
| replacement | |||||
|
7
|
7
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
8
|
8
204610264
Dossier arriere*backrest-rear
Includes 8 - 12.; |
204610264 |
— | ||
|
9
|
9
204610035
Housse bosse *cover-bump
|
204610035 |
— | ||
|
10
|
10
204610368
Hous.doss.cent.*cover-backrest
|
204610368 |
— | ||
|
11
|
11
204610369
Housse doss.arr*cover-backrest
|
204610369 |
— | ||
|
12
|
12
204610382
Housse doss.ga.*cover-backrest(lh)
|
204610382 |
— | ||
|
13
|
13
213200007
Washer-flat din.9021b-a2(m6)
|
213200007 |
— | ||
| replacement | |||||
|
13
|
13
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
14
|
14
204610365
Siege arr.ass. *seat-rear assy
Includes 14 - 20.; |
204610365 |
— | ||
|
15
|
15
204610039
Housse siege ar*cover-seat rea
|
204610039 |
— | ||
|
16
|
16
204610383
Couss.siege ass*cush.seat assy.(rh)
Includes 16 - 17.; |
204610383 |
— | ||
|
17
|
17
204610384
Hous.siege arr.*cover-seat rear
|
204610384 |
— | ||
| replacement | |||||
|
17
|
17
204610383
Couss.siege ass*cush.seat assy.(rh)
|
204610383 |
— | ||
|
18
|
18
204610284
Courroie
|
204610284 |
— | ||
|
19
|
19
215061660
Screw-hex.cap din.933a2
|
215061660 |
— | ||
| replacement | |||||
|
19
|
19
207161660 Screw-hex.cap din.933a2 |
207161660 |
US $9.50 |
||
|
20
|
20
213200007
Washer-flat din.9021b-a2(m6)
|
213200007 |
— | ||
| replacement | |||||
|
20
|
20
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
21
|
21
213200001
Washer-flat din.125a-a2(m6)
|
213200001 |
— | ||
| replacement | |||||
|
21
|
21
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
22
|
22
204610009
Appui-bras ass *rest-arm back
Includes 22 - 23.; |
204610009 |
— | ||
|
23
|
23
204610050
Lh rear seat arm-rest cover (dark green)
|
204610050 |
— | ||
|
24
|
24
204610362
Aileron ass. *spoiler-assy.
Includes 24 - 26.; |
204610362 |
— | ||
|
25
|
25
204610052
Housse aileron *cover-spoiler
|
204610052 |
— | ||
|
26
|
26
204610184
Cache-agrafe *cover-staple
|
204610184 |
— | ||
|
27
|
27
210000012
Screw-hex.cap din.933a2
|
210000012 |
— | ||
| replacement | |||||
|
27
|
27
207164060 Screw-hex.cap din.933a2 |
207164060 |
US $21.70 |
||
|
28
|
28
210000005
Screw-hex.cap din.933a2
|
210000005 |
— | ||
| replacement | |||||
|
28
|
28
207162560 Screw-hex.cap din.933a2 |
207162560 |
US $9.50 |
||
|
29
|
29
204610360
Coussin assy. *platform assy.
Includes 29 - 31.; |
204610360 |
— | ||
|
30
|
30
204610361
Housse platform*cover-platform
|
204610361 |
— | ||
|
31
|
31
204610194
Courroie *strap
|
204610194 |
— | ||
|
32
|
32
217002600
Washer-flat din.9021b-a2
|
217002600 |
— | ||
| replacement | |||||
|
32
|
32
234002600 Washer-flat din.9021b-a2 |
234002600 |
US $14.35 |
||
|
33
|
33
293730006 Dard noir *dart-black |
293730006 |
US $6.70 |
||
|
34
|
34
204610356
Accoudoir dr.as*elbowrest assy.(rh)
Includes 34 - 37.; |
204610356 |
— | ||
|
35
|
35
204610120
Housse *cover
|
204610120 |
— | ||
|
36
|
36
293730006 Dard noir *dart-black |
293730006 |
US $6.70 |
||
|
37
|
37
213200007
Washer-flat din.9021b-a2(m6)
|
213200007 |
— | ||
| replacement | |||||
|
37
|
37
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
38
|
38
204610357
Accoudoir ga.as*elbowrest assy.(lh)
Includes 38 - 41.; |
204610357 |
— | ||
|
39
|
39
293730006 Dard noir *dart-black |
293730006 |
US $6.70 |
||
|
40
|
40
204610122
Housse *cover
|
204610122 |
— | ||
|
41
|
41
213200007
Washer-flat din.9021b-a2(m6)
|
213200007 |
— | ||
| replacement | |||||
|
41
|
41
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
42
|
42
204610261
Siege avant ass*seat-front assy-cent.
Includes 42 - 49.; |
204610261 |
— | ||
|
43
|
43
204610178
Loquet siege av*latch-seat(front)
|
204610178 |
— | ||
|
44
|
44
204610184
Cache-agrafe *cover-staple
|
204610184 |
— | ||
|
45
|
45
293000060
Courroie passag*strap-passenger
|
293000060 |
— | ||
| replacement | |||||
|
45
|
45
204610963
Courroie passag*strap-passenger
|
204610963 |
— | ||
|
46
|
46
211000028
Screw-pt.hex.flange k40 x 10
|
211000028 |
— | ||
| replacement | |||||
|
46
|
46
241140060 Screw-pt.hex.flange k40 x 10 |
241140060 |
US $9.60 |
||
|
47
|
47
217042600
Washer-flat din.9021b-a2
|
217042600 |
— | ||
| replacement | |||||
|
47
|
47
234042600 Washer-flat din.9021b-a2 |
234042600 |
US $7.40 |
||
|
48
|
48
204610350
Hous.siege *cover-seat-front
|
204610350 |
— | ||
|
49
|
49
211000086
Screw-socket bn.hd.iso.7380a2
|
211000086 |
— | ||
| replacement | |||||
|
49
|
49
205441660 Screw-socket bn.hd.iso.7380a2 |
205441660 |
US $9.50 |
||
|
50
|
50
293830043 Butee caout. *stopper-rubber |
293830043 |
US $7.23 |
||
|
51
|
51
293150013 Rivet-pop 3/16 *rivet-pop 3/16 |
293150013 |
from US $2.12 |
||
|
52
|
52
293000060
Courroie passag*strap-passenger
|
293000060 |
— | ||
| replacement | |||||
|
52
|
52
204610963
Courroie passag*strap-passenger
|
204610963 |
— | ||
|
53
|
53
217042600
Washer-flat din.9021b-a2
|
217042600 |
— | ||
| replacement | |||||
|
53
|
53
234042600 Washer-flat din.9021b-a2 |
234042600 |
US $7.40 |
||
|
54
|
54
211000028
Screw-pt.hex.flange k40 x 10
|
211000028 |
— | ||
| replacement | |||||
|
54
|
54
241140060 Screw-pt.hex.flange k40 x 10 |
241140060 |
US $9.60 |
||
|
55
|
55
204610262
Siege avant ass*seat-front assy-port
Includes 55 - 56.; |
204610262 |
— | ||
|
56
|
56
204610353
Hous.siege *cover-seat-l.front
|
204610353 |
— | ||
|
57
|
57
204610008
Appui-bras ass *rest-arm back
Includes 57 - 58.; |
204610008 |
— | ||
|
58
|
58
204610048
Hous.appui-bras*cover-armrest
|
204610048 |
— | ||
| replacement | |||||
|
58
|
58
204610008
Appui-bras ass *rest-arm back
|
204610008 |
— | ||
|
59
|
59
204610100 Attache siege *strap-seat |
204610100 |
US $14.25 |
||
|
60
|
60
204610263
Siege avant ass*seat-front assy-starb.
Includes 60 - 61.; |
204610263 |
— | ||
|
61
|
61
204610355
Rh front seat cover (white)
|
204610355 |
— | ||
|
62
|
62
215064560
Screw-hex.cap din.933a2
|
215064560 |
— | ||
| replacement | |||||
|
62
|
62
207164560 Screw-hex.cap din.933a2 |
207164560 |
US $12.15 |
||
|
63
|
63
293730014 Dard noir *dart-black |
293730014 |
US $13.40 |
||
|
64
|
64
213200007
Washer-flat din.9021b-a2(m6)
|
213200007 |
— | ||
| replacement | |||||
|
64
|
64
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
65
|
65
213200011
Washer-flat din.9021b-a2
|
213200011 |
— | ||
| replacement | |||||
|
65
|
65
234082600 Washer-flat din.9021b-a2 |
234082600 |
US $31.10 |
||
|
66
|
66
293150011 Rivet-pop 3/16 *rivet-pop 3/16 |
293150011 |
US $9.40 |
||
|
67
|
67
213200011
Washer-flat din.9021b-a2
|
213200011 |
— | ||
| replacement | |||||
|
67
|
67
234082600 Washer-flat din.9021b-a2 |
234082600 |
US $31.10 |
||
|
68
|
68
204610207
Ergot de siege *stud-seat
|
204610207 |
— | ||
