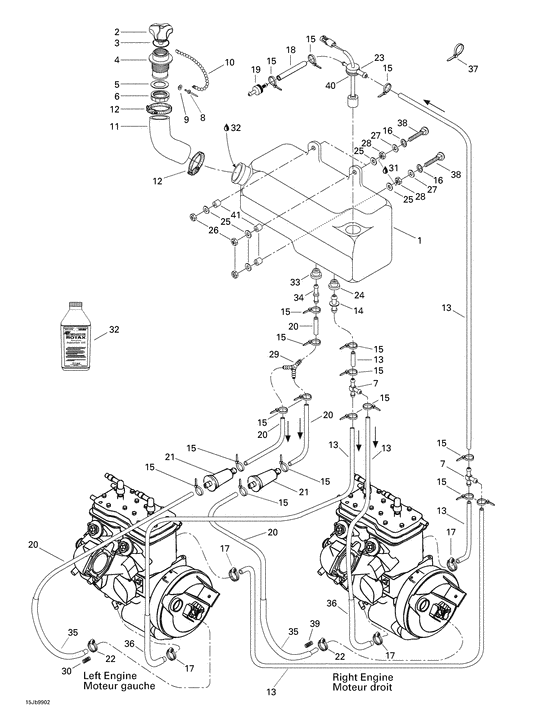

02- oil injection system Diagram Bombardier Challenger
- Year
- 1999
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
413711000
Huile xps synth*oil-xps synth.
|
413711000 |
— | ||
| replacement | |||||
|
|
293600046
Huile 2t 3x1g synth *oil 2t 3x1g synth
|
293600046 |
— | ||
|
|
413710700
Huile inj.2stro*oil-inj2stroke
|
413710700 |
— | ||
| replacement | |||||
|
|
293600047
Huile 2t baril * oil 2t drum synth
|
293600047 |
— | ||
|
|
413803000
Huile 2t 3x1g min+r* oil 2t 3x1g mineral
|
413803000 |
— | ||
|
|
413803200
Huile 2t baril * oil 2t drum mineral
|
413803200 |
— | ||
|
|
413710500
Huile xps synth*oil-xps synth.
|
413710500 |
— | ||
| replacement | |||||
|
|
293600045
Huile 2t 12x1 synth * oil 2t 12x1 synth
|
293600045 |
— | ||
|
1
|
1
204550029
Reservoir huile*tank-oil
|
204550029 |
— | ||
|
2
|
2
275000186
Bouchon huile *cap-oil assy.
Includes 2 - 3.; |
275000186 |
— | ||
|
3
|
3
293250025 Joint torique *o ring |
293250025 |
US $10.17 |
||
|
4
|
4
275000212
Goulot remplis.*neck-filler
|
275000212 |
— | ||
|
5
|
5
293250016
Joint etanche *gasket
|
293250016 |
— | ||
| replacement | |||||
|
5
|
5
293250132
Joint etanche *gasket
|
293250132 |
— | ||
|
6
|
6
211100013
Nut-neck filler oil
|
211100013 |
— | ||
|
7
|
7
293710053 Raccord en t *fitting-t |
293710053 |
US $35.45 |
||
|
8
|
8
293150056
Rivet-pop 1/8 *rivet-pop 1/8
|
293150056 |
— | ||
|
9
|
9
234032600 Washer-flat din.9021b-a2 |
234032600 |
US $7.10 |
||
|
10
|
10
275500015
Chaine bouchon *chain-cap oil
|
275500015 |
— | ||
|
11
|
11
275000070
Boyau remplis. *hose-fil.neck
|
275000070 |
— | ||
|
12
|
12
293650035 Bride serrage *clamp-tridon |
293650035 |
US $47.75 |
||
|
13
|
13
275000008 Boyau 12mm. *hose-12mm. |
275000008 |
US $57.18 |
||
|
14
|
14
293710045
Raccord droit *fitting-straig
|
293710045 |
— | ||
|
15
|
15
293750001 Tie rap 94mm *tie-rap 94mm |
293750001 |
US $66.50 |
||
|
16
|
16
211200054 Washer-lock toothed din.6797a-a2 |
211200054 |
US $10.70 |
||
|
17
|
17
293650038
Bride serrage *clamp-tridon
|
293650038 |
— | ||
|
18
|
18
275500018
Boyau 5.2mm *hose-5.2mm
|
275500018 |
— | ||
|
19
|
19
275500398 Soupape retenue*valve-check |
275500398 |
from US $12.38 |
||
|
20
|
20
275000007
Boyau 8mm. *hose-8mm.
|
275000007 |
— | ||
|
21
|
21
275000051
Filtre huile *filter-oil
|
275000051 |
— | ||
| replacement | |||||
|
21
|
21
275000262 Filtre huile *filter-oil |
275000262 |
from US $16.29 |
||
|
22
|
22
293650042 Bride serrage *clamp-oetiker |
293650042 |
US $20.50 |
||
|
23
|
23
204470106
Capteur huile *sensor-oil
|
204470106 |
— | ||
| replacement | |||||
|
23
|
23
278001401 Capteur huile *sensor-oil |
278001401 |
US $146.85 |
||
|
24
|
24
570273900 Passe-fils *grommet |
570273900 |
US $11.76 |
||
|
25
|
25
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
26
|
26
212000005 Nut-stop elastic ms-17830 |
212000005 |
US $9.80 |
||
|
27
|
27
234081600 Washer-flat din.125a-a2 |
234081600 |
US $7.10 |
||
|
28
|
28
211100026 Nut-hexagonal 1/4-20 |
211100026 |
US $9.80 |
||
|
29
|
29
204550001
Raccord en y *fitting-y
|
204550001 |
— | ||
|
30
|
30
270000377
Ressort *spring
|
270000377 |
— | ||
|
31
|
31
293800005 Loctite 271 *loctite-271 |
293800005 |
US $31.18 |
||
|
32
|
32
413802900
Huile 2t 12x1 min+r* oil 2t 12x1 mineral
|
413802900 |
— | ||
| replacement | |||||
|
32
|
32
293600117 Huile 2t 12x1 *oil 2t 12x1 mineral |
293600117 |
US $15.64 |
||
|
33
|
33
570135100
Passe-fils *grommet
|
570135100 |
— | ||
| replacement | |||||
|
33
|
33
709200285
GROMMET
|
709200285 |
— | ||
|
34
|
34
293710046
Raccord droit *fitting-straig
|
293710046 |
— | ||
|
35
|
35
204550015 Enveloppe isol.*slit-conduit |
204550015 |
US $10.17 |
||
|
36
|
36
204550028 Enveloppe isol.*slit-conduit |
204550028 |
US $50.85 |
||
|
37
|
37
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
38
|
38
211000193 Carriage bolt mushroom head |
211000193 |
US $19.60 |
||
|
39
|
39
204550033 Manchon ecart. *sleeve-spacer |
204550033 |
US $9.13 |
||
|
40
|
40
204470104
Passe-fils *grommet-oil
|
204470104 |
— | ||
