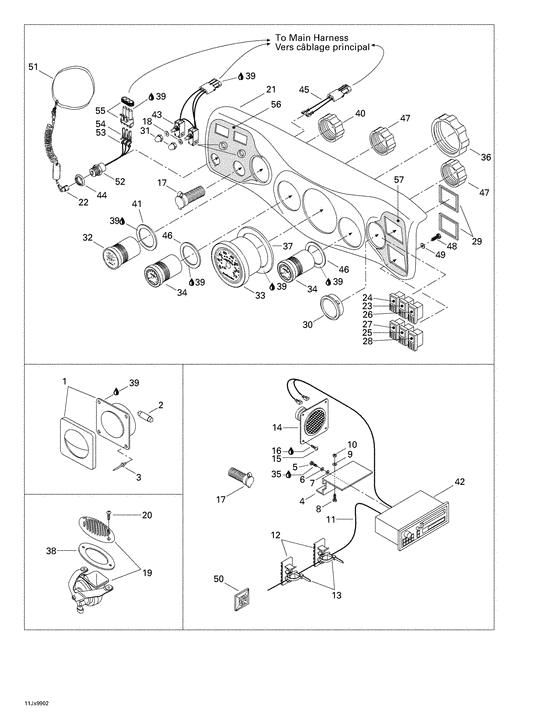

10- electrical accessories 1 Diagram Bombardier Challenger
- Year
- 1999
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
204900443
Decal.fascia *decal-fascia(lh)
|
204900443 |
— | ||
|
|
204900444
Decal.fascia *decal-fascia(rh)
|
204900444 |
— | ||
|
|
204470327
Fascia vert *fascia-green
|
204470327 |
— | ||
|
1
|
1
204470026 Lum.courtoisie *light-courtesyIncludes 1 - 2.; |
204470026 |
US $39.88 |
||
|
2
|
2
204470081 Ampoule *bulb |
204470081 |
US $13.21 |
||
|
3
|
3
293150032 Rivet-pop 1/8 *rivet-pop 1/8 |
293150032 |
US $19.50 |
||
|
4
|
4
204470198
Support radio *support-radio
|
204470198 |
— | ||
|
5
|
5
208651060 Screw-pan hd.ph.din.7985a-a2 |
208651060 |
US $7.25 |
||
|
6
|
6
234151601 Washer-lock helical din.127b-a2 |
234151601 |
US $9.80 |
||
|
7
|
7
234052600 Washer-flat din.9021b-a2 |
234052600 |
from US $1.32 |
||
|
8
|
8
208462060 Screw-ctsk.fl.hd.ph.din.965a-a2 |
208462060 |
US $14.60 |
||
|
9
|
9
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
10
|
10
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
11
|
11
204470028
Antenne *antenna
|
204470028 |
— | ||
|
12
|
12
414839700
Attache cable *clip-cable
|
414839700 |
— | ||
|
13
|
13
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
14
|
14
204470029
Speaker
|
204470029 |
— | ||
|
15
|
15
208642560 Screw-pan hd.ph.din.7985a-a2 |
208642560 |
US $9.80 |
||
|
16
|
16
293800040 Loctite 425 *loctite-425 |
293800040 |
US $61.15 |
||
|
17
|
17
204470252
Prise 12 volt *jack-12 volt
|
204470252 |
— | ||
|
18
|
18
204470258
Entretoise *spacer-nylon
|
204470258 |
— | ||
|
19
|
19
204470033
Klaxon *horn
Includes 19 - 20.; |
204470033 |
— | ||
| replacement | |||||
|
19
|
19
204470801
Klaxon *horn
Includes 19 - 20.; |
204470801 |
— | ||
|
20
|
20
211000100 Screw-rd.hd.ph..; |
211000100 |
US $10.65 |
||
|
21
|
21
204470326
Fascia *fascia
|
204470326 |
— | ||
|
22
|
22
278001277
Cordon securite*lanyard-safety
|
278001277 |
— | ||
| replacement | |||||
|
22
|
22
278002199 Cordon securite*lanyard-safety |
278002199 |
US $93.60 |
||
|
23
|
23
204470011
Inter.vent. *switch-fan
|
204470011 |
— | ||
|
24
|
24
204470099
Inter.bilge. *switch-bilge
|
204470099 |
— | ||
|
25
|
25
204470100
Inter.lumiere *switch-light
|
204470100 |
— | ||
|
26
|
26
204470101
Inter.klaxon *switch-horn
|
204470101 |
— | ||
|
27
|
27
204470102
Inter.courtois.*switch-courtesy
|
204470102 |
— | ||
|
28
|
28
204470103
Inter.res.elect*switch-elect.
|
204470103 |
— | ||
|
29
|
29
204470343 Plaque blocage *plate-locking |
204470343 |
US $19.92 |
||
|
30
|
30
204470328
Capuchon jauge *cap-gauge
|
204470328 |
— | ||
|
31
|
31
278000565 Capuchon demar.*cap-igni.start |
278000565 |
US $27.29 |
||
|
32
|
32
204470319
Cadran huil/ess*gauge-oil/fuel
|
204470319 |
— | ||
| replacement | |||||
|
32
|
32
204470963 Cadran ess.*gauge-fuel/oil |
204470963 |
US $362.07 |
||
|
33
|
33
204470320
Cadran vitesse *gauge-speedo.
|
204470320 |
— | ||
|
34
|
34
204470321
Cadran tachy.*gauge-tachometer
.; |
204470321 |
— | ||
| replacement | |||||
|
34
|
34
204470965 Cadran tachy.*gauge-tachometer.; |
204470965 |
US $425.29 |
||
|
35
|
35
293800015
Loctite 242 *loctite-242
|
293800015 |
— | ||
| replacement | |||||
|
35
|
35
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
36
|
36
204470171
Ecrou cadran *nut-gauge
|
204470171 |
— | ||
|
37
|
37
204470309
Nche *gasket
|
204470309 |
— | ||
|
38
|
38
293250089
Joint klaxon *gasket-horn
|
293250089 |
— | ||
|
39
|
39
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
40
|
40
204470146
Ecrou cadran *nut-gauge
|
204470146 |
— | ||
|
41
|
41
204470308
Joint etanche *gasket
|
204470308 |
— | ||
|
42
|
42
204470331
Radio tape
|
204470331 |
— | ||
|
43
|
43
204470142
Inter.ignit. *switch-ignition
Replaced by Singl Switch (Cutting and Splicing Required; |
204470142 |
— | ||
|
44
|
44
278000508
Ecrou securite *nut-saf.switch
|
278000508 |
— | ||
|
45
|
45
204470332
Rallonge-prise *extension-12v jack
|
204470332 |
— | ||
|
46
|
46
204470308
Joint etanche *gasket
|
204470308 |
— | ||
|
47
|
47
204470146
Ecrou cadran *nut-gauge
|
204470146 |
— | ||
|
48
|
48
241141660 Screw-pt.hex.flange k40 x 16 |
241141660 |
US $9.60 |
||
|
49
|
49
234042600 Washer-flat din.9021b-a2 |
234042600 |
US $7.40 |
||
|
50
|
50
293750015 Ancrage tie rap*mount-tie rap |
293750015 |
US $15.05 |
||
|
51
|
51
204470025
Courroie secur.*strap-safety
|
204470025 |
— | ||
|
52
|
52
278000646
Inter.urgence *switch-safety
Includes 52 - 55.; |
278000646 |
— | ||
| replacement | |||||
|
52
|
52
278001734
Inter.urgence *switch-safety
Includes 52 - 55.; |
278001734 |
— | ||
|
53
|
53
278000218 Joint de fil *seal-wire |
278000218 |
US $58.70 |
||
|
54
|
54
278000223 Cosse femelle *terminal-femal |
278000223 |
US $21.15 |
||
|
55
|
55
278000273 Bloc 3 circ.mal*housing-tab |
278000273 |
US $10.85 |
||
|
56
|
56
204900441
Decal.fascia *decal-fascia(lh)
|
204900441 |
— | ||
|
57
|
57
204900442
Decal.fascia *decal-fascia(rh)
|
204900442 |
— | ||
