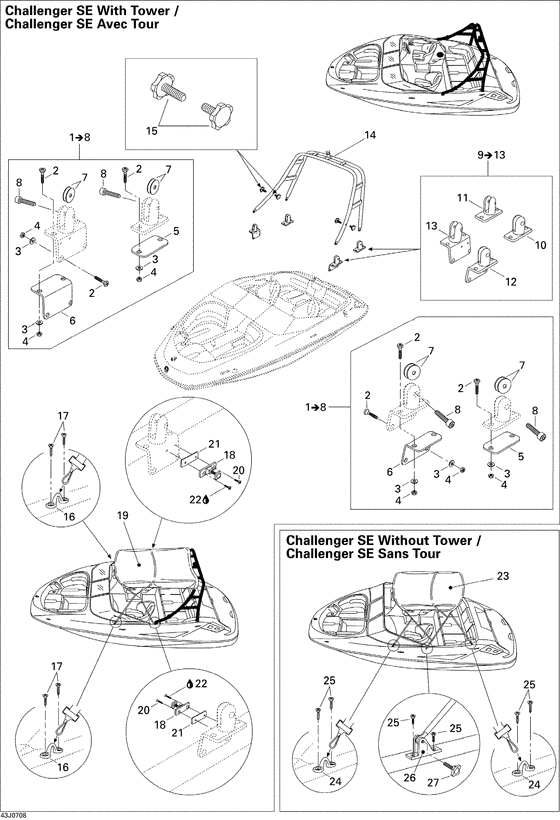

09- tower and bimini top Diagram Bombardier Challenger
- Year
- 2007
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
204072257 Kit-quincail.*kit-hardware/towerIncludes 1 to 8; |
204072257 |
US $684.39 |
||
|
2
|
2
204100151 Screw-ctsk.ov.hd. 1/4-20 x 2 |
204100151 |
US $13.12 |
||
|
3
|
3
204071423 Rondelle *washer-fender |
204071423 |
US $10.47 |
||
|
4
|
4
212000005 Nut-stop elastic ms-17830 |
212000005 |
US $9.80 |
||
|
5
|
5
204130107 Joint etanche *gasket-rear |
204130107 |
US $34.65 |
||
|
6
|
6
204130108 Joint etanche *gasket-front |
204130108 |
US $17.29 |
||
|
7
|
7
204100158
Rondel.nylon *washer-nylon
|
204100158 |
— | ||
|
8
|
8
204100094
Screw-socket hd.3/8-16 x 1-1/2
|
204100094 |
— | ||
|
9
|
9
204072258 Kit-monture*kit-mounting/towerIncludes 9 to 13; |
204072258 |
US $1,383.10 |
||
|
10
|
10
204072251 Support-tour*support-tower/rear |
204072251 |
US $438.57 |
||
|
11
|
11
204072252 Support-tour*support-tower/rear |
204072252 |
US $438.57 |
||
|
12
|
12
204072253
Support-tour*support-tower/front
|
204072253 |
— | ||
|
13
|
13
204072259
Support-tour*support-tower/front
|
204072259 |
— | ||
|
14
|
14
204072261
Tour *tower
|
204072261 |
— | ||
|
15
|
15
204072011
Bouton touch.*knob-soft touch
|
204072011 |
— | ||
|
16
|
16
204071845 Oeil courroie*eye-strap |
204071845 |
US $28.31 |
||
|
17
|
17
209943260 Screw-tapp.ctsk.ov.hd.din.7983c-a2 |
209943260 |
US $9.50 |
||
|
18
|
18
204072264 Support-bimini*mount-bimini |
204072264 |
US $37.71 |
||
|
19
|
19
204072262
Toit bimini ass*top-bimini assy.
|
204072262 |
— | ||
|
20
|
20
208451660 Screw-ctsk.fl.hd.ph.din.965a-a2 |
208451660 |
US $9.80 |
||
|
21
|
21
204072263 Entretoise*spacer-bimini mount |
204072263 |
US $18.33 |
||
|
22
|
22
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
23
|
23
204072597
Toit bimini ass.*top-bimini assy.
Models Without Tower; |
204072597 |
— | ||
| replacement | |||||
|
23
|
23
204950050
Toit bimini ass.*top-bimini assy.
Models Without Tower; |
204950050 |
— | ||
|
24
|
24
204071845 Oeil courroie*eye-strapModels Without Tower; |
204071845 |
US $28.31 |
||
|
25
|
25
209943260 Screw-tapp.ctsk.ov.hd.din.7983c-a2Models Without Tower; |
209943260 |
US $9.50 |
||
|
26
|
26
204072822 Support-bimini*mount-biminiModels Without Tower; |
204072822 |
US $10.17 |
||
|
27
|
27
204072823 Bouton-bimini*knob-biminiModels Without Tower; |
204072823 |
US $8.13 |
||
