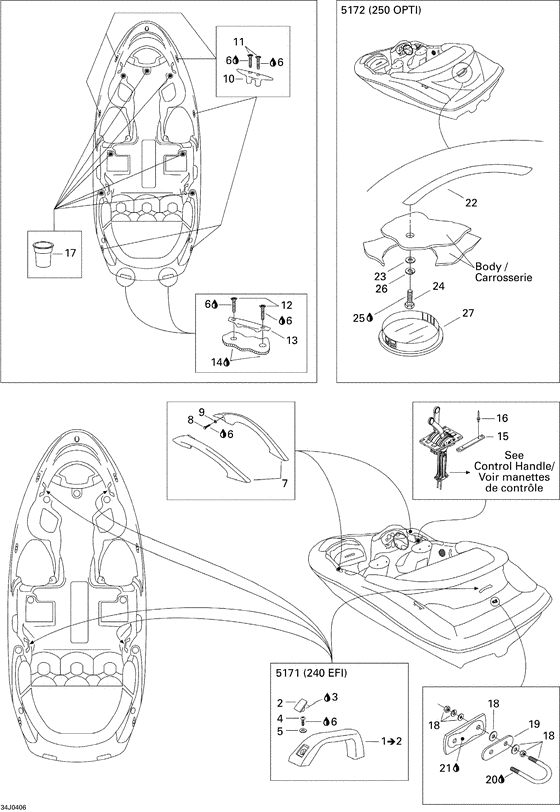

09- body and accessories Diagram Bombardier Challenger
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
204070156
Poignee maint. *handle-grip(black)
Includes 1 to 2; |
204070156 |
— | ||
|
2
|
2
204070207
Capuchon press.*cap-snap
|
204070207 |
— | ||
|
3
|
3
413705800 Loctite 414 *loctite-414 |
413705800 |
US $33.61 |
||
|
4
|
4
205462560 Screw-socket bn.hd.iso.7380a2 |
205462560 |
US $19.60 |
||
|
5
|
5
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
6
|
6
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
7
|
7
204070590
Ponee lat.dr.*handle-side/rh
|
204070590 |
— | ||
|
7
|
7
204070591
Poignee lat.ga.*handle-side/lh
|
204070591 |
— | ||
|
8
|
8
207182560 Screw-hex.cap din.933a2 |
207182560 |
US $7.65 |
||
|
9
|
9
234082600 Washer-flat din.9021b-a2 |
234082600 |
US $31.10 |
||
|
10
|
10
204070592 Agrafe base *cleat-openbase |
204070592 |
US $38.83 |
||
|
11
|
11
204100144 Screw-socket hd.ctsk.din.7991-a2/m6 |
204100144 |
US $7 |
||
|
12
|
12
205364060 Screw-socket hd.ctsk.din.7991-a2 |
205364060 |
US $19.60 |
||
|
13
|
13
204070194 Poignee maint. *handle-grip |
204070194 |
US $43.81 |
||
|
14
|
14
293800086
Scell.silicone *seal-silicone
|
293800086 |
— | ||
|
15
|
15
293450061 Ajout controle *insert-shifter |
293450061 |
US $27.29 |
||
|
16
|
16
293150013 Rivet-pop 3/16 *rivet-pop 3/16 |
293150013 |
from US $2.12 |
||
|
17
|
17
291000619
Coupole retenue*cup-holder
|
291000619 |
— | ||
|
18
|
18
204070418
Boulon en u *u-bolt
|
204070418 |
— | ||
|
19
|
19
204070219
Plaque finition*plate-finition
|
204070219 |
— | ||
|
20
|
20
293800005 Loctite 271 *loctite-271 |
293800005 |
US $31.18 |
||
|
21
|
21
293800086
Scell.silicone *seal-silicone
|
293800086 |
— | ||
|
22
|
22
204071627
Poignee maint.*handle-grab/ss
|
204071627 |
— | ||
|
23
|
23
234082600 Washer-flat din.9021b-a2 |
234082600 |
US $31.10 |
||
|
25
|
25
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
26
|
26
234181601 Washer-lock helical din.127b-a2 |
234181601 |
US $7.10 |
||
|
27
|
27
293000030
Capuchon hunky *cap-plug hunky
|
293000030 |
— |
