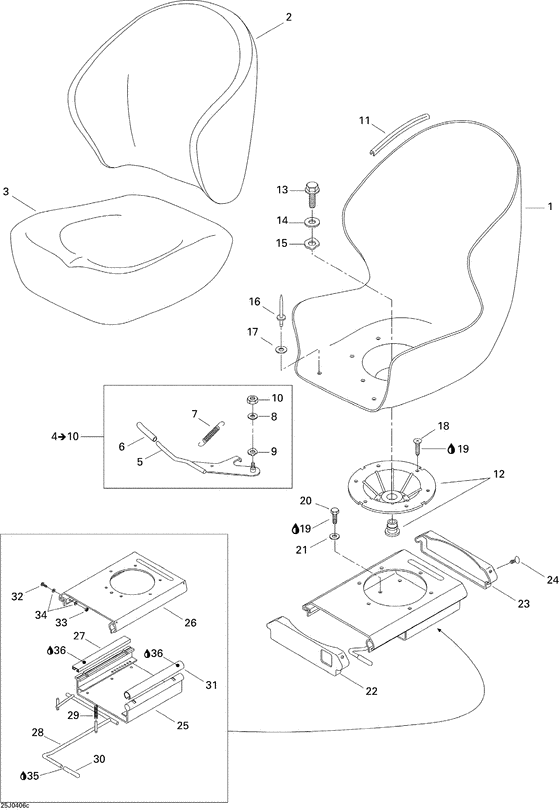

09- seat (Driver and Passenger) Diagram Bombardier Challenger
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
204611146
Base siege *base-seat
|
204611146 |
— | ||
|
2
|
2
295501064
Couss.dossier *pad-backrest assy.
|
295501064 |
— | ||
|
3
|
3
204612695
Coussin siege*cushion-seat
|
204612695 |
— | ||
|
4
|
4
204610523
Bras levier *arm lever assy.
Includes 4 to 10; |
204610523 |
— | ||
|
5
|
5
204610524
Bras levier *arm-lever
|
204610524 |
— | ||
|
6
|
6
204610348
Poignee *handle
|
204610348 |
— | ||
|
7
|
7
204610349 Ressort *spring |
204610349 |
US $14.67 |
||
|
8
|
8
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
9
|
9
211200059
Washer-three wave
|
211200059 |
— | ||
|
10
|
10
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
11
|
11
204610371 Moulure noire *trim-black |
204610371 |
US $17.29 |
||
|
12
|
12
204610513 Plaque pivot *plate-swivel |
204610513 |
US $155.01 |
||
|
13
|
13
211000172
Screw-shoulder
|
211000172 |
— | ||
|
14
|
14
211200058 Washer-flat |
211200058 |
US $14.20 |
||
|
15
|
15
293200056 Rondelle *washer-3 wave |
293200056 |
US $11.66 |
||
|
16
|
16
204130014 Rivet-pop 3/16 *rivet-pop 3/16 |
204130014 |
US $10.95 |
||
|
17
|
17
204100059 Rondelle-plate *washer-flat |
204100059 |
US $9.80 |
||
|
18
|
18
208561660 Screw-ctsk.ov.hd.ph.din.966a-a2 |
208561660 |
US $16.40 |
||
|
19
|
19
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
20
|
20
207163560 Screw-hex.cap din.933a2 |
207163560 |
US $19.20 |
||
|
21
|
21
234062600 Washer-flat din.9021b-a2 |
234062600 |
US $10 |
||
|
22
|
22
204610375
Protect.avant *protector-front
|
204610375 |
— | ||
|
23
|
23
204610376
Protect.arriere*protector-rear
|
204610376 |
— | ||
|
24
|
24
293730006 Dard noir *dart-black |
293730006 |
US $6.70 |
||
|
25
|
25
269500636
Profile inf. *part-lower
|
269500636 |
— | ||
| replacement | |||||
|
25
|
25
204610277
Base siege *base-seat
|
204610277 |
— | ||
|
26
|
26
269500637
Profile sup. *part-upper
|
269500637 |
— | ||
|
27
|
27
269500638
Coussinet rect.*bushing-rect.
|
269500638 |
— | ||
|
28
|
28
269500639
Tige ass. *rod-assy.
|
269500639 |
— | ||
| replacement | |||||
|
28
|
28
204610277
Base siege *base-seat
|
204610277 |
— | ||
|
29
|
29
269500640
Ressort *spring
|
269500640 |
— | ||
|
30
|
30
204610348
Poignee *handle
|
204610348 |
— | ||
|
31
|
31
269500642
Coussinet rond *bushing-circle
|
269500642 |
— | ||
|
32
|
32
207065060 Screw-hex.cap din.931a2 |
207065060 |
US $14.35 |
||
|
33
|
33
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
34
|
34
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
35
|
35
413705800 Loctite 414 *loctite-414 |
413705800 |
US $33.61 |
||
|
36
|
36
293550010 Graisse synth. *grease-synth. |
293550010 |
US $33.61 |
||
